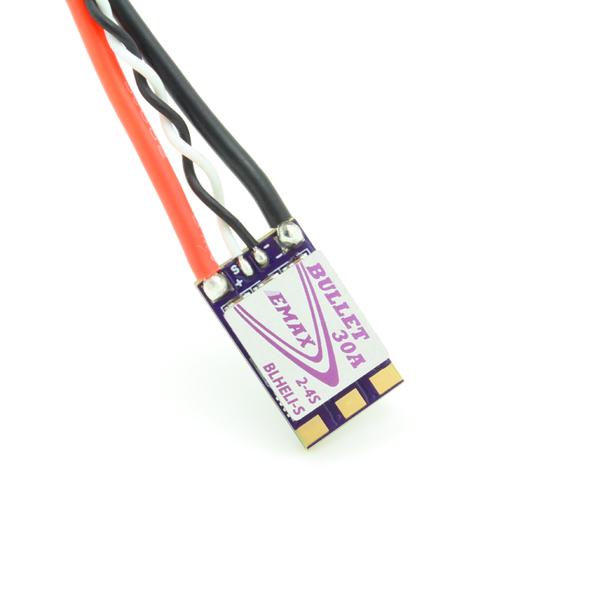

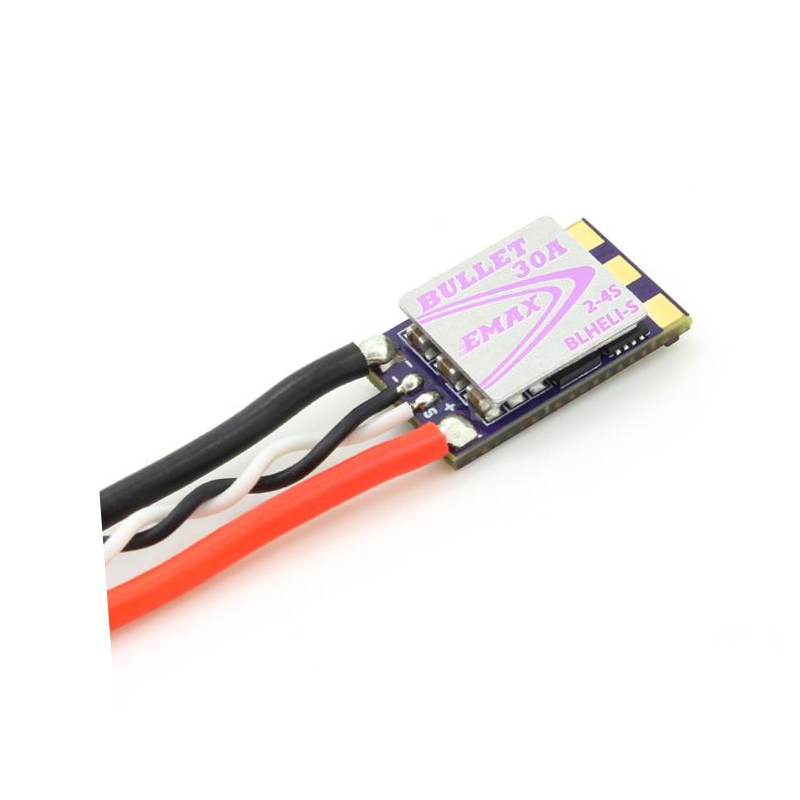

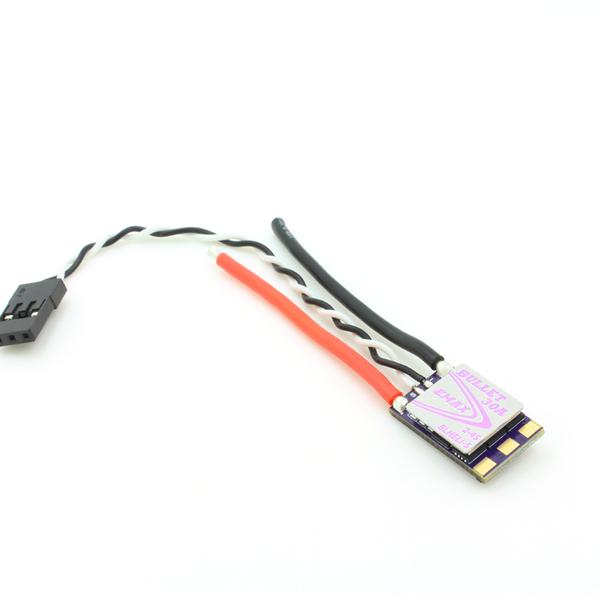

EMAX Bullet Series 30A 2-4S BLHeli_S DShot FPV ESC
This EMAX Bullet Series 30A ESC is an ultra-light and compact solution for 2-4S FPV racing drones, featuring BLHeli_S firmware with support for DSHOT, Multishot, and Oneshot42 protocols for rapid, precise throttle response. Its optimized design ensures reliable power delivery and efficient heat dissipation in demanding flight conditions.
Features
- Ultra-light 3.9g design for high-performance FPV racing builds.
- 30A continuous current handling with 35A burst, compatible with 2-4S LiPo.
- BLHeli_S firmware provides smooth throttle response and DSHOT, Multishot, Oneshot42 support.
- New heatsink design for effective thermal management and propeller strike protection.
Out of stock
The EMAX Bullet Series 30A ESC represents a significant advancement in FPV drone electronic speed control, engineered for the demanding environment of high-level FPV racing. Its super-mini and ultra-light form factor, weighing just 3.9g, contributes minimally to total airframe weight, enhancing maneuverability and speed.

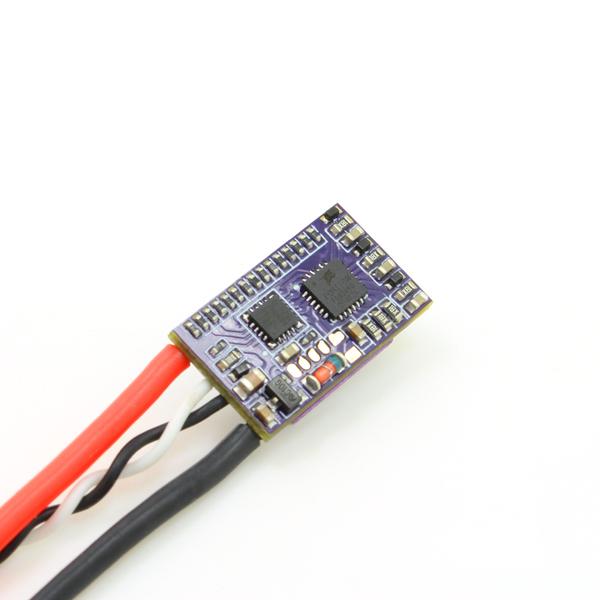

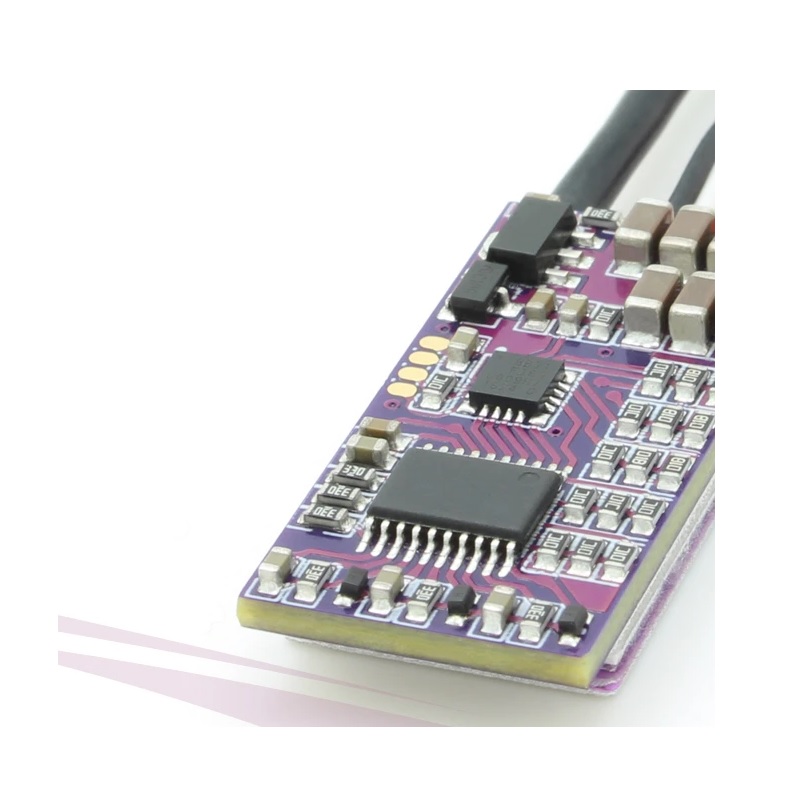

Equipped with the latest BLHeli_S firmware (v16.5), this ESC utilizes hardware PWM to generate precise signals, resulting in an exceptionally smooth and responsive throttle curve. This precision is critical for executing complex maneuvers and maintaining tight control during aggressive flight. The robust design incorporates top-quality MOSFETs, ceramic capacitors, and a 3oz high TG PCB board, collectively maximizing heat dissipation and improving overall system efficiency. Furthermore, the innovative heatsink design not only reduces core temperatures but also provides crucial protection against propeller strike damage, ensuring durability and reliability.
This Bullet Series ESC supports a comprehensive range of signal protocols, including the advanced digital DSHOT (DSHOT600, DSHOT300, DSHOT150) for superior noise immunity and accuracy, as well as traditional analog protocols like Multishot and Oneshot42, offering broad compatibility with various flight controller setups. Its high-temperature silicone signal cable further simplifies installation and provides long-term flexibility, making it a reliable choice for competitive pilots and drone builders.
Additional Information
| Dimensions | 8 × 6 × 1 cm |
|---|
