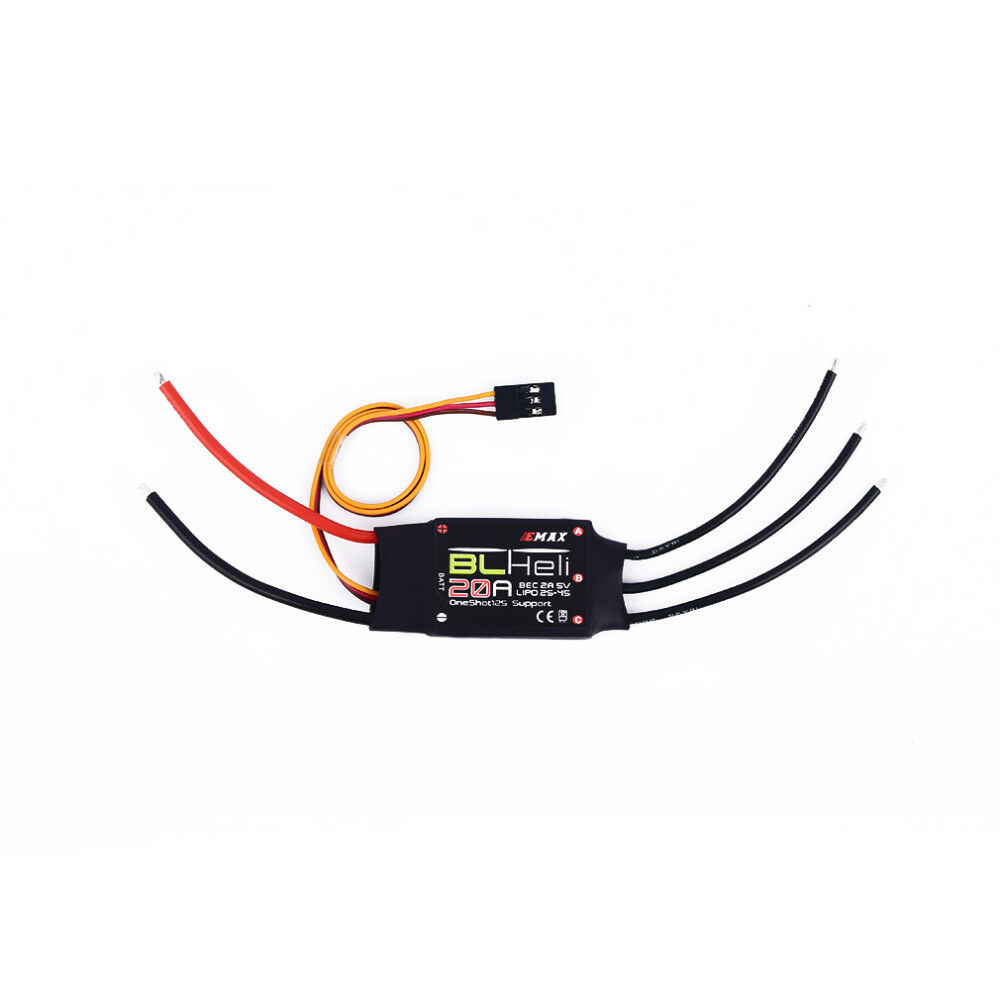

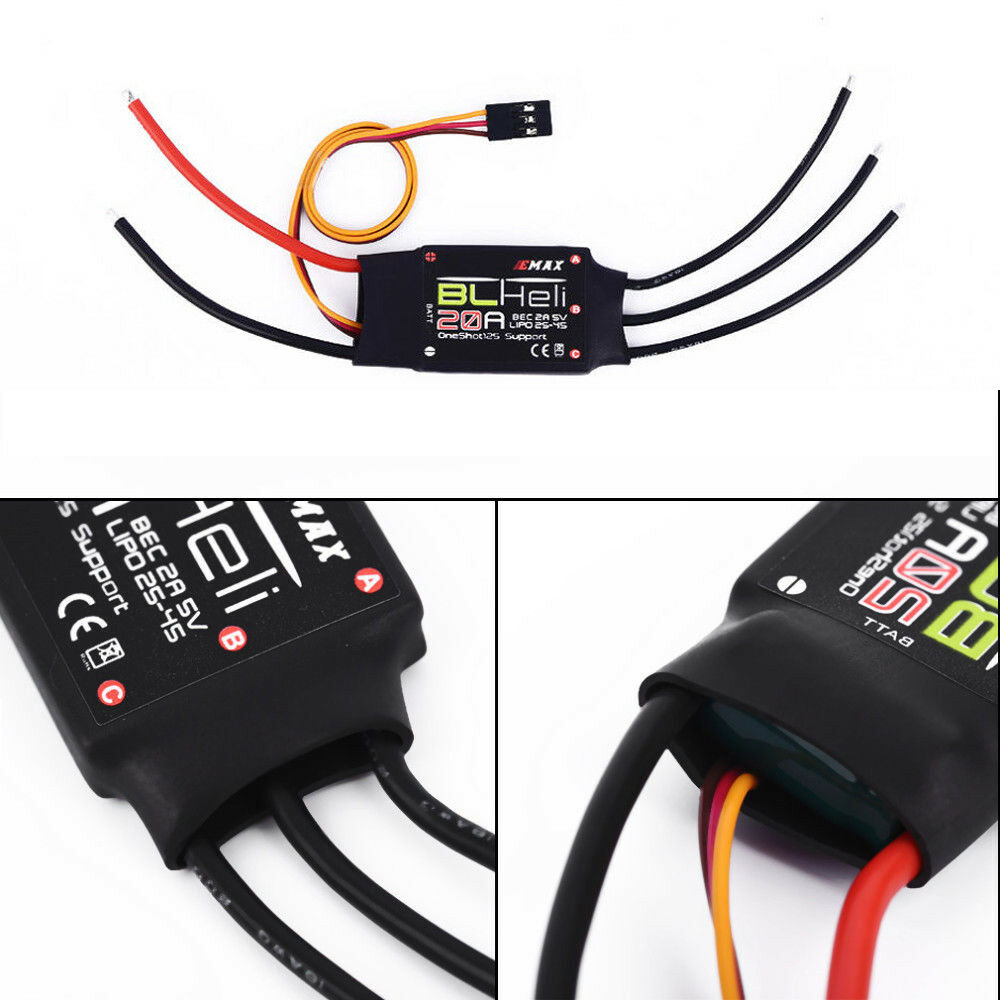

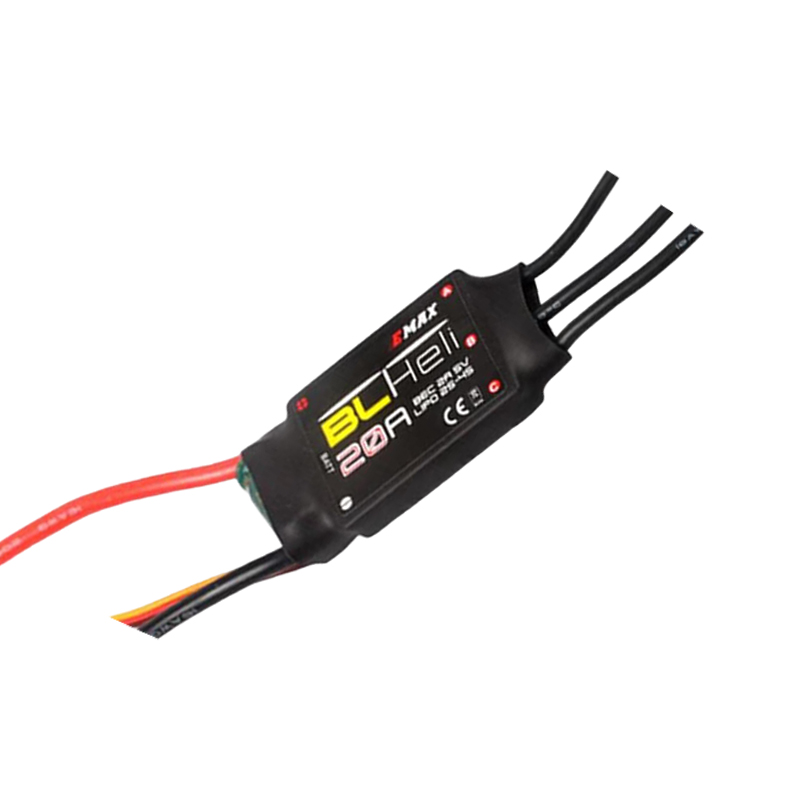

EMAX BLHeli 20A 2-4S Brushless ESC
The EMAX BLHeli 20A ESC is engineered for FPV racing, delivering reliable 20A continuous current and 2A/5V BEC output for your flight controller and peripherals. Compatible with 2-4S LiPo batteries, it ensures consistent power delivery and precise motor control for agile flight performance.
Features
- Delivers 20A continuous and 25A burst current for high-performance FPV racing setups.
- Integrated 2A/5V BEC provides stable power for flight controllers and receivers.
- Supports 2-4S LiPo battery input, offering versatility for various drone builds.
- Programmable motor rotation and multiple protection features for enhanced reliability.
Out of stock
The EMAX BLHeli 20A ESC is a robust and cost-effective solution specifically designed to meet the demands of FPV racing and freestyle drone applications. Built around the reliable BLHeli firmware, this electronic speed controller ensures precise and efficient power delivery to your brushless motors, enabling rapid throttle response and smooth flight characteristics essential for competitive piloting.
Featuring a 20A continuous current rating with a 25A burst capacity for up to 10 seconds, this ESC can handle significant power demands during aggressive maneuvers. Its adaptable 2-4S LiPo battery compatibility offers flexibility for a range of lightweight to medium-power setups. The integrated 2A/5V BEC simplifies wiring by providing clean power to your flight controller and other onboard electronics, contributing to a lighter and more streamlined build. Advanced protection features, including low voltage cut-off, over-heat, and throttle signal loss protection, safeguard your components during intense flight sessions.
With programmable motor rotation and fully configurable parameters via a program card or transmitter, the EMAX BLHeli 20A ESC allows pilots to fine-tune their drone’s performance. Its wide compatibility with various receivers ensures a smooth, linear, and precise throttle response across different radio control systems, making it an excellent choice for both aspiring and experienced FPV enthusiasts seeking dependable motor control.
Additional Information
| Dimensions | 5.2 × 2.6 × 0.7 cm |
|---|
