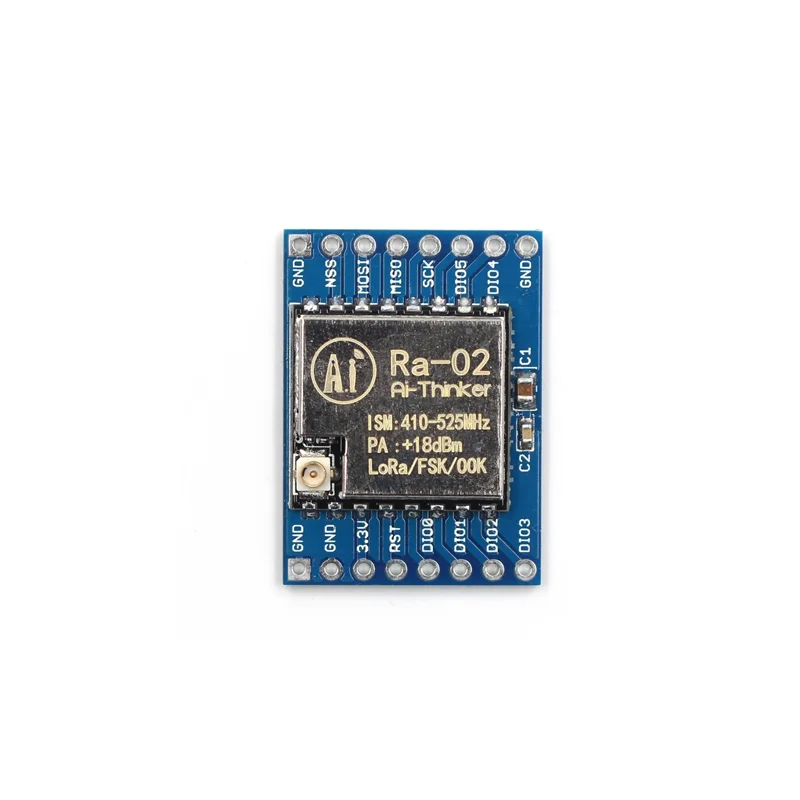

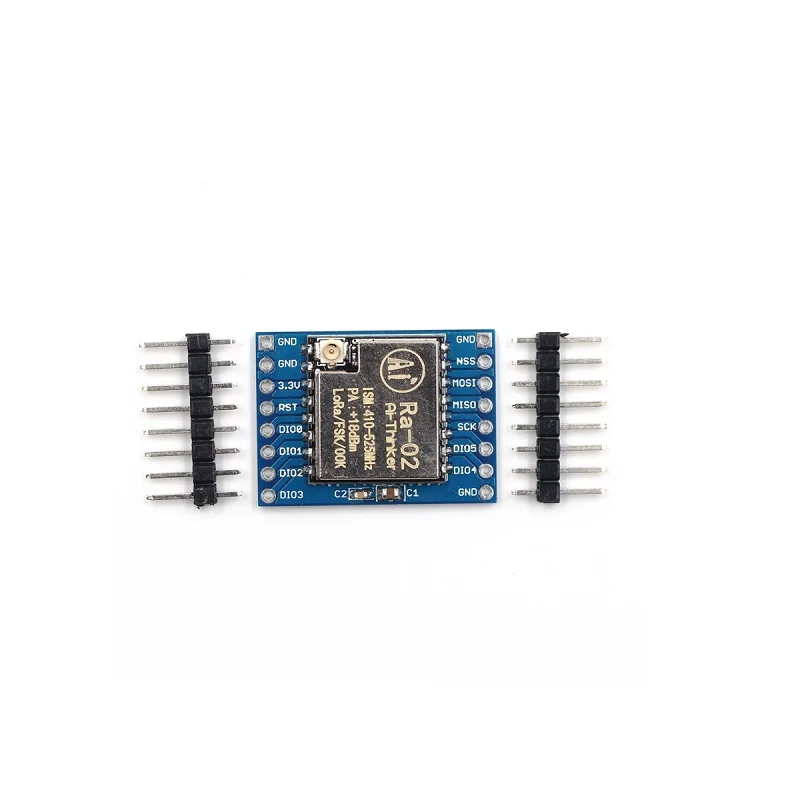

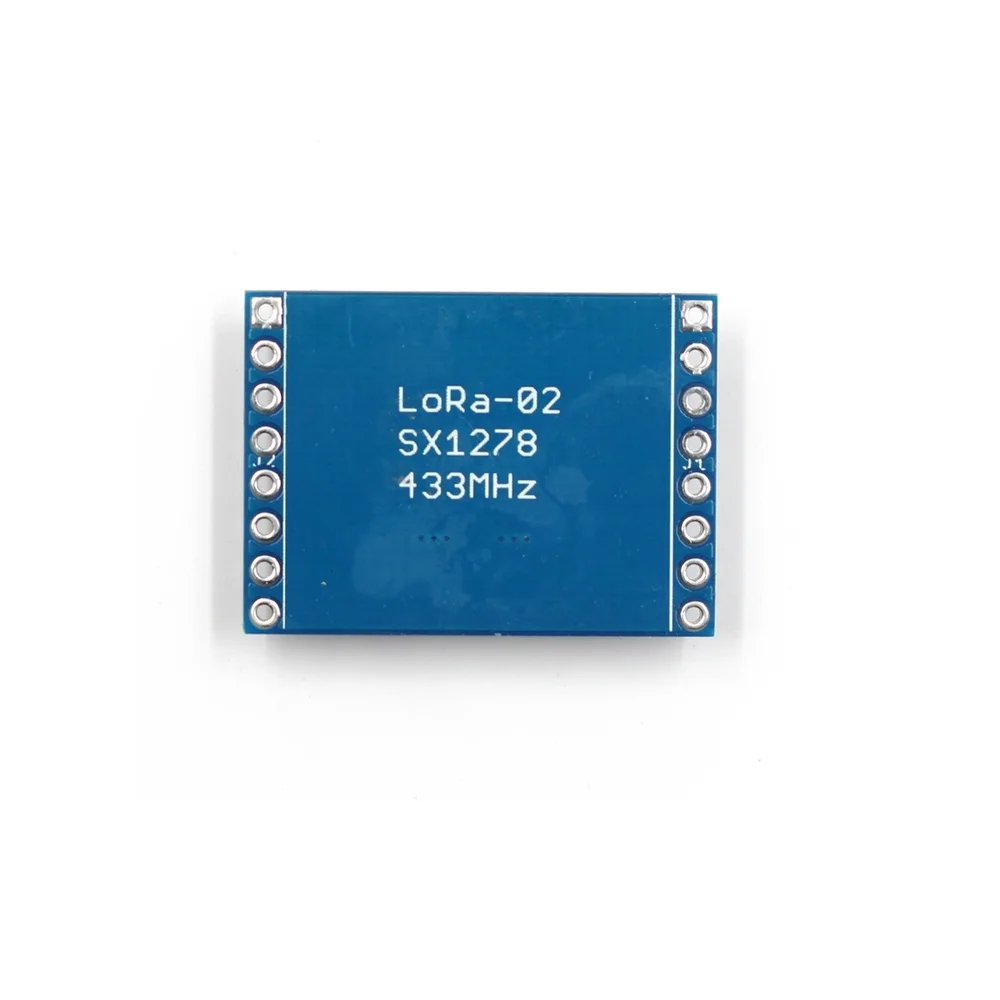

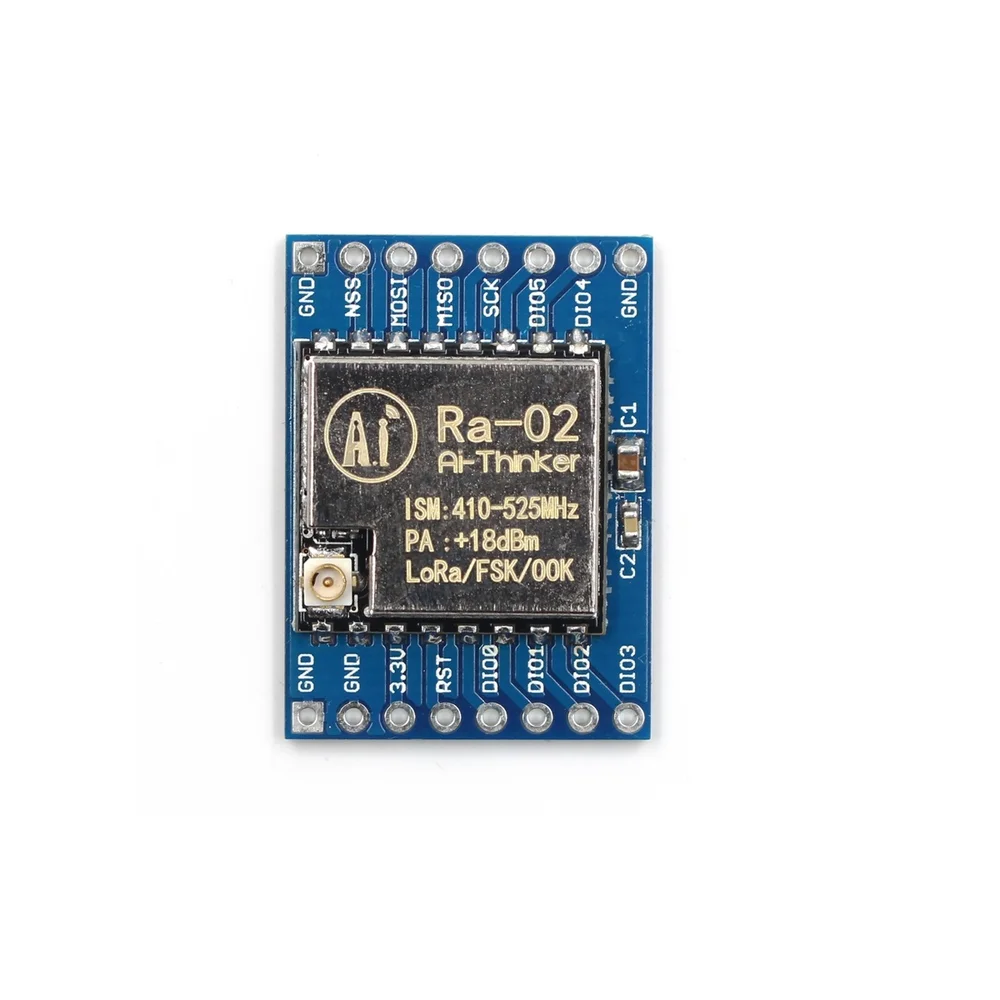

SX1278 LoRa Module RA-02 433MHz Wireless Spread Spectrum Transceiver

Connect the RA-02 module to your Arduino board using the SPI pins (MOSI, MISO, SCK) and a dedicated chip select (CS) pin. You must install a compatible LoRa library, such as the Sandeep Mistry library, in the Arduino IDE. Initialize the library with the correct CS and reset pin definitions in your sketch. Ensure your power supply is within the 1.8V to 3.7V range, typically using the 3.3V output from your Arduino. The library provides functions for setting frequency, spreading factor, and bandwidth before calling begin() to start communication.

The manufacturer specifies a maximum communication distance of up to 15 kilometers under ideal line-of-sight conditions with minimal environmental interference. Real-world range is significantly influenced by terrain, antenna placement, and local RF noise. Using an external antenna with proper gain and elevation can improve performance. For reliable urban or suburban deployments, expect effective ranges between 2 to 5 kilometers. The module's high sensitivity of -148dBm helps maintain a link at the edge of its range.

Yes, the RA-02 module supports bidirectional, half-duplex communication via its SPI interface. The programmable bit rate can be configured up to 300 kbps, though actual effective data throughput using LoRa modulation is much lower, typically from 0.3 to 37.5 kbps depending on the chosen spreading factor and bandwidth settings. Lower data rates increase range and reliability. You must manage transmission and reception states in your firmware, as the module cannot send and receive simultaneously. The integrated packet engine handles framing and CRC.
