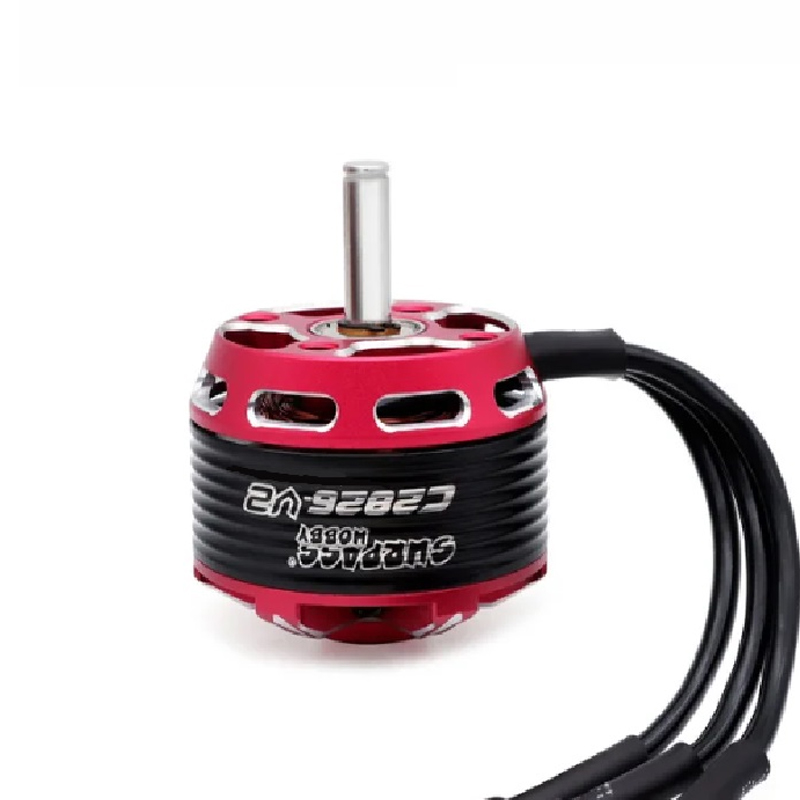

Surpass Hobby C2826 14-Pole Outrunner Brushless Motor - 1350KV
SKU: DRFC-2845
📋 GST Invoice Available

Surpass Hobby C2826 14-Pole Outrunner Brushless Motor - 1350KV

₹989.00 (Inclusive of all taxes)
Out of Stock

The Surpass Hobby C2826 is a 14-pole outrunner brushless motor designed for fixed-wing aircraft, delivering 1350KV of power through a 3.0mm x 12mm shaft and a 3.5mm connector for reliable propulsion.

Features

  • 14-pole outrunner design for smooth torque and efficient power delivery.
  • 1350KV rating optimized for medium-sized fixed-wing aircraft on 3S-4S LiPo systems.
  • Features a durable 3.0mm diameter, 12mm length hardened steel shaft.
  • Pre-soldered 3.5mm bullet connectors for simplified installation.
  • High-grade bearings and balanced bell for reliable, low-vibration operation.

Out of stock

Description

The C2826 outrunner motor utilizes a 14-pole stator and high-quality neodymium magnets to provide a robust torque curve ideal for fixed-wing applications requiring consistent thrust and efficient cruise performance. Its outrunner architecture offers excellent cooling and a high power-to-weight ratio.

Constructed with a precision-machined aluminum alloy housing and a hardened steel shaft, the motor is built for durability and resistance to vibration. The integrated 3.5mm connectors ensure a secure electrical connection, minimizing resistance and simplifying the wiring process in your aircraft build.

Key Features

  • 14-Pole Outrunner Design: Delivers smooth, efficient torque with excellent thermal dissipation.
  • 1350KV Windings: Optimized for 3S-4S LiPo batteries, balancing thrust and current draw for endurance flying.
  • 3.0mm x 12mm Steel Shaft: Robust shaft dimension compatible with a wide range of prop adapters and folding prop hubs.
  • Pre-installed 3.5mm Connectors: Ready for direct solder-free connection to compatible ESCs.
  • High-Quality Bearings: Japanese-grade bearings ensure smooth rotation and long service life.
  • Precision-Balanced Rotor: Factory-balanced bell minimizes vibrations for smoother flight and reduced frame stress.

Applications

  • Medium-sized fixed-wing RC planes and gliders requiring efficient cruise power.
  • FPV wing platforms where smooth throttle response and reliability are critical.
  • Aerial photography and mapping drones built on fixed-wing airframes.
  • Trainer and sport aircraft where a balance of power and flight time is desired.

Technical Specifications

ModelC2826
Motor TypeOutrunner Brushless
KV Rating1350 KV
Pole Count14
Shaft Diameter3.0 mm
Shaft Length12 mm
Connector Type3.5mm Bullet
Primary ApplicationFixed-Wing Aircraft

Frequently Asked Questions

What is the recommended battery voltage (LiPo cell count) for this 1350KV motor?

The Surpass Hobby C2826 1350KV motor is optimally paired with 3S (11.1V) to 4S (14.8V) LiPo battery systems. This voltage range provides efficient thrust for medium-sized fixed-wing aircraft while maintaining safe operating temperatures and current draw through a properly sized ESC.

What size propeller is suitable for this C2826 motor?

For 3S operation, propellers in the 9x6 to 10x5 range are typical. For 4S, smaller propellers like 8x6 or 9x4.5 are recommended to keep amp draw within limits. Always use a watt meter with your specific ESC and battery to confirm safe current levels during static testing.

Does this motor come with wires and connectors installed?

Yes, the motor includes pre-soldered wires terminated with 3.5mm bullet connectors. This allows for direct plug-and-play connection with many ESCs that feature compatible 3.5mm female sockets, simplifying the installation process in your aircraft.

Package Includes

  • 1 x Surpass Hobby C2826 14-Pole Outrunner Brushless Motor

Additional Information

Weight 0.075 kg
Dimensions 6 × 9 × 4 cm
