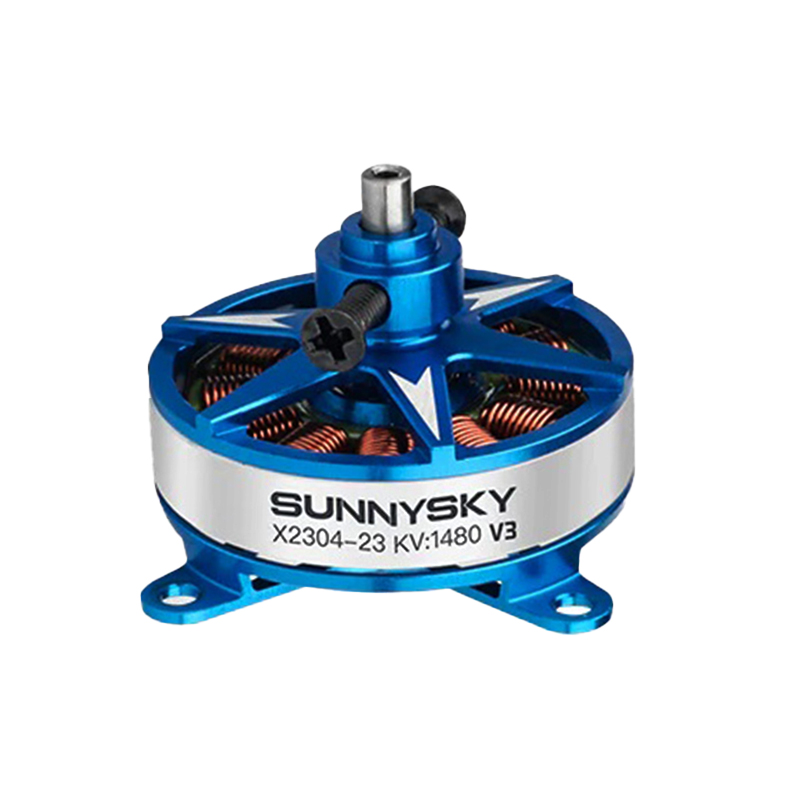

SunnySky X2304-V3 Fixed Wing Motor - 1480KV

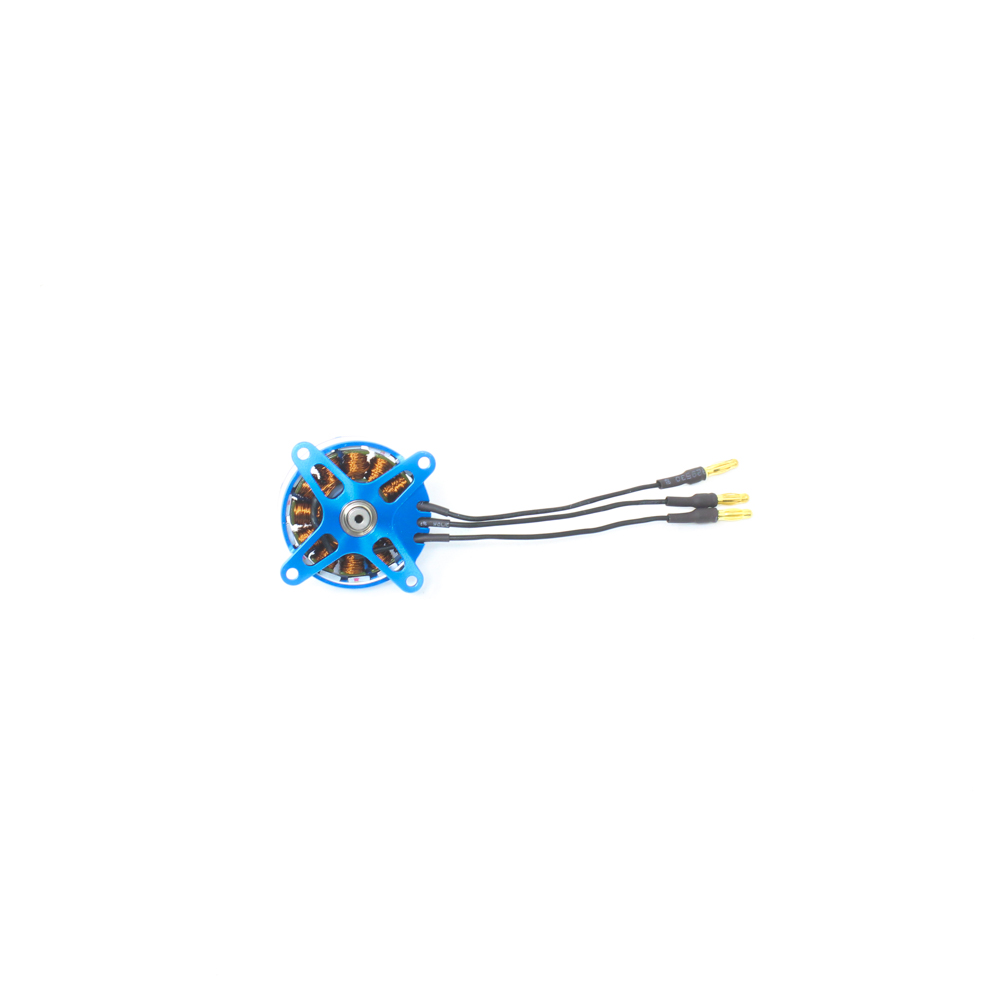

SunnySky X2304-V3 Fixed Wing Motor - 1480KV - Image 2

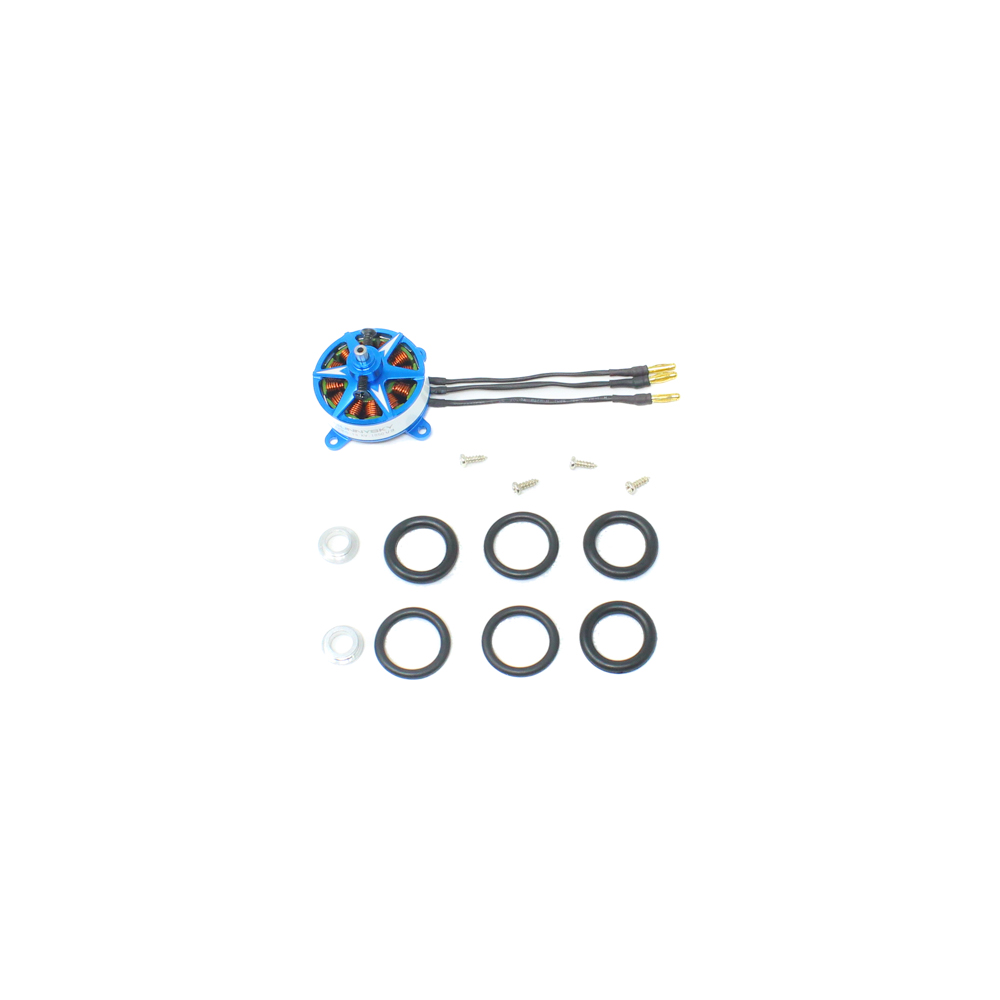

SunnySky X2304-V3 Fixed Wing Motor - 1480KV - Image 3
SKU: DRFC-2832
📋 GST Invoice Available

SunnySky X2304-V3 Fixed Wing Motor - 1480KV

₹1,809.00 (Inclusive of all taxes)
Out of Stock

The SunnySky X2304-V3 is a 1480KV brushless outrunner motor engineered for fixed-wing and long-range UAV applications, delivering 130W of continuous power with a 3mm shaft for reliable propulsion.

Features

  • 1480KV outrunner design optimized for efficient fixed-wing and long-range flight.
  • Delivers up to 130W continuous power with a max current of 15A for 30 seconds.
  • Features a precision CNC-machined aluminum case for durability and heat dissipation.
  • Low internal resistance (190mΩ) and no-load current (0.4A @ 10V) for high efficiency.
  • Equipped with a 3.0mm steel shaft and high-quality bearings for smooth, reliable operation.

Out of stock

Description

The SunnySky X2304-V3 is a high-performance brushless outrunner motor designed specifically for fixed-wing aircraft and endurance-focused drone platforms. Its 1480KV rating provides an optimal balance of torque and RPM for efficient cruise performance on 3S and 4S LiPo battery systems, making it ideal for long-range FPV and mapping missions.

Engineered with a robust CNC-machined aluminum housing, the motor ensures excellent thermal management and structural integrity. The low internal resistance and high-quality Japanese bearings contribute to its smooth operation, low noise, and extended service life under continuous load.

Key Features

  • Optimized Outrunner Design: 28mm rotor diameter and 22.2mm body length provide high torque and efficient power delivery for fixed-wing applications.
  • High-Efficiency Stator: Low 190mΩ resistance and 0.4A no-load current minimize electrical losses and heat generation.
  • Robust Mechanical Construction: Precision CNC-machined aluminum case ensures precise balance, durability, and effective heat dissipation.
  • Premium Bearing System: Utilizes high-quality bearings for low friction, reduced operational noise, and enhanced long-term reliability.
  • Wide Operating Range: Supports 2-4S LiPo input (7.4V-16.8V), suitable for a variety of fixed-wing and VTOL airframes.

Applications

  • Fixed-wing long-range FPV and mapping drones (e.g., ZOHD Dart, SonicModell AR Wing).
  • VTOL (Vertical Take-Off and Landing) hybrid drones requiring efficient cruise propulsion.
  • Endurance-focused UAV platforms operating on 3S or 4S LiPo batteries.
  • Lightweight aerial photography and surveillance aircraft.

Technical Specifications

Motor ModelSunnySky X2304-V3
Motor TypeBrushless Outrunner
KV Rating1480 KV (RPM/Volt)
Max Continuous Power130W
Max Continuous Current15A (for 30 seconds)
No-Load Current0.4A @ 10V
Internal Resistance190 mΩ
Shaft Diameter3.0 mm
Rotor Diameter28 mm
Body Length22.2 mm
Motor Weight (approx.)50 g

Frequently Asked Questions

What is the recommended battery voltage (cell count) for the SunnySky X2304-V3 1480KV motor?

The SunnySky X2304-V3 1480KV motor is optimally paired with 3S (11.1V) or 4S (14.8V) LiPo batteries for fixed-wing applications. Its KV rating provides efficient RPM for propellers in the 6x4 to 7x5 range, balancing thrust and current draw for extended flight times. Always use a properly rated ESC (e.g., 20-30A) and perform ground tests to verify temperature and amp draw.

What is the shaft diameter and is it compatible with standard prop adapters?

This motor features a 3.0mm steel output shaft. It is compatible with standard collet-style or set-screw prop adapters designed for a 3mm shaft. Ensure any adapter used is securely tightened and balanced to prevent vibration, which is critical for the smooth operation and longevity of the motor's bearings in fixed-wing applications.

Can this motor be used for multirotor drones or is it only for fixed-wing?

While engineered as an outrunner for fixed-wing aircraft, the X2304-V3 can technically be used on lightweight multirotor builds. However, its 1480KV rating and torque characteristics are specifically optimized for the constant high-RPM cruise of fixed-wing flight. For multirotors, a lower KV motor (e.g., 2306 1750KV) is generally preferred for better throttle response and efficiency in acrobatic maneuvers.

Package Includes

  • 1 x SunnySky X2304-V3 1480KV Brushless Motor

Additional Information

Weight 0.05 kg
Dimensions 7 × 6 × 4 cm
