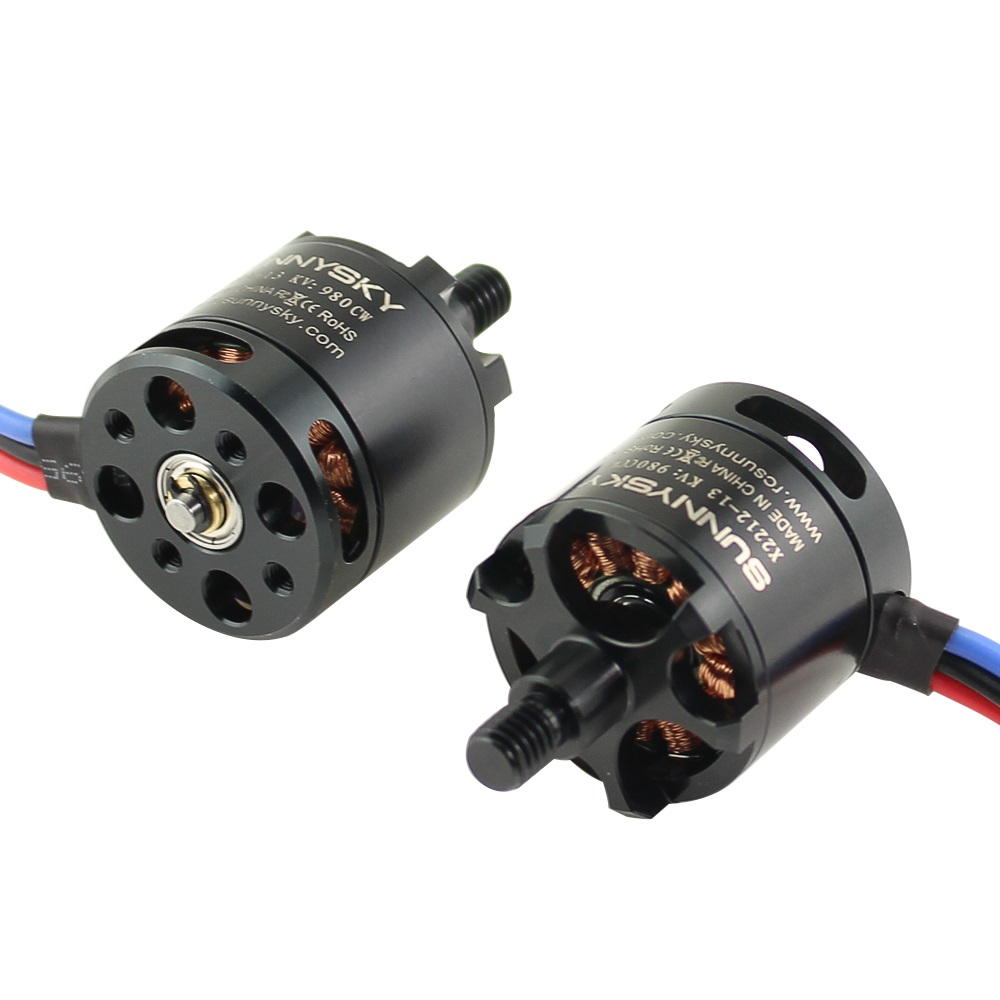

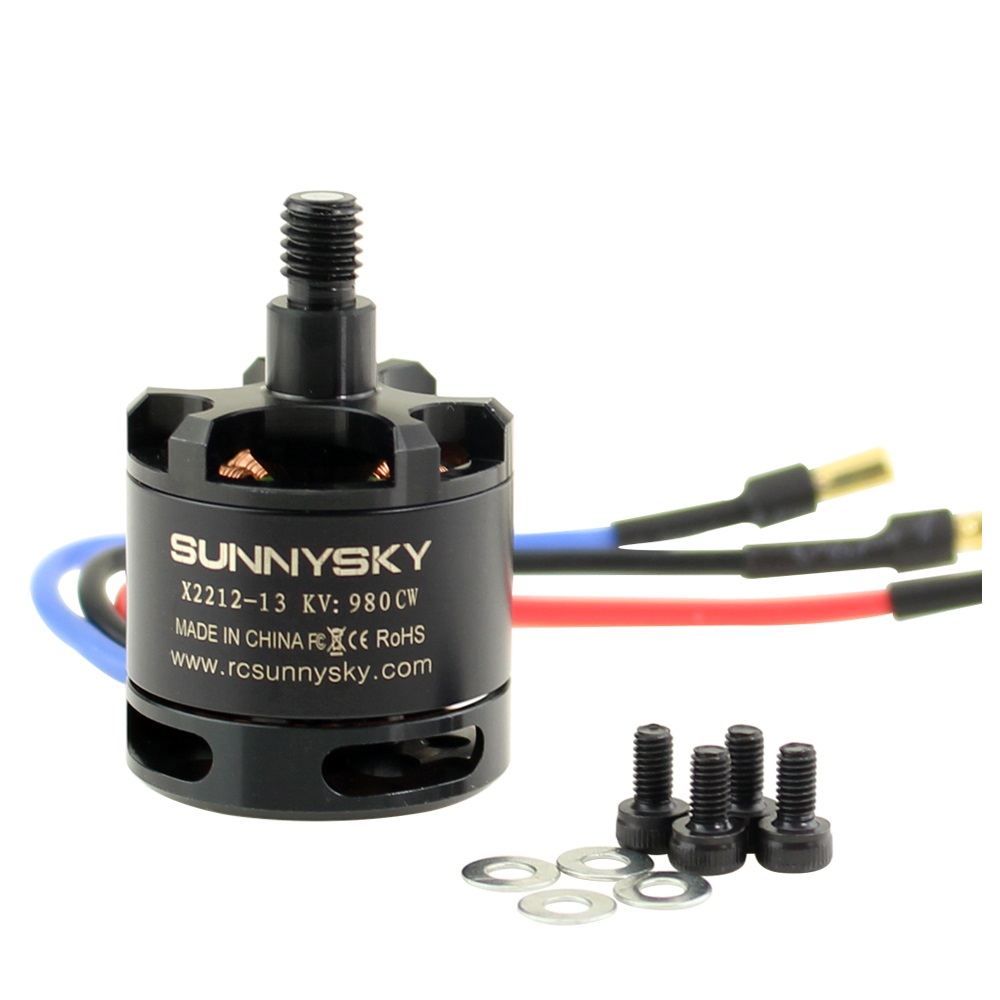

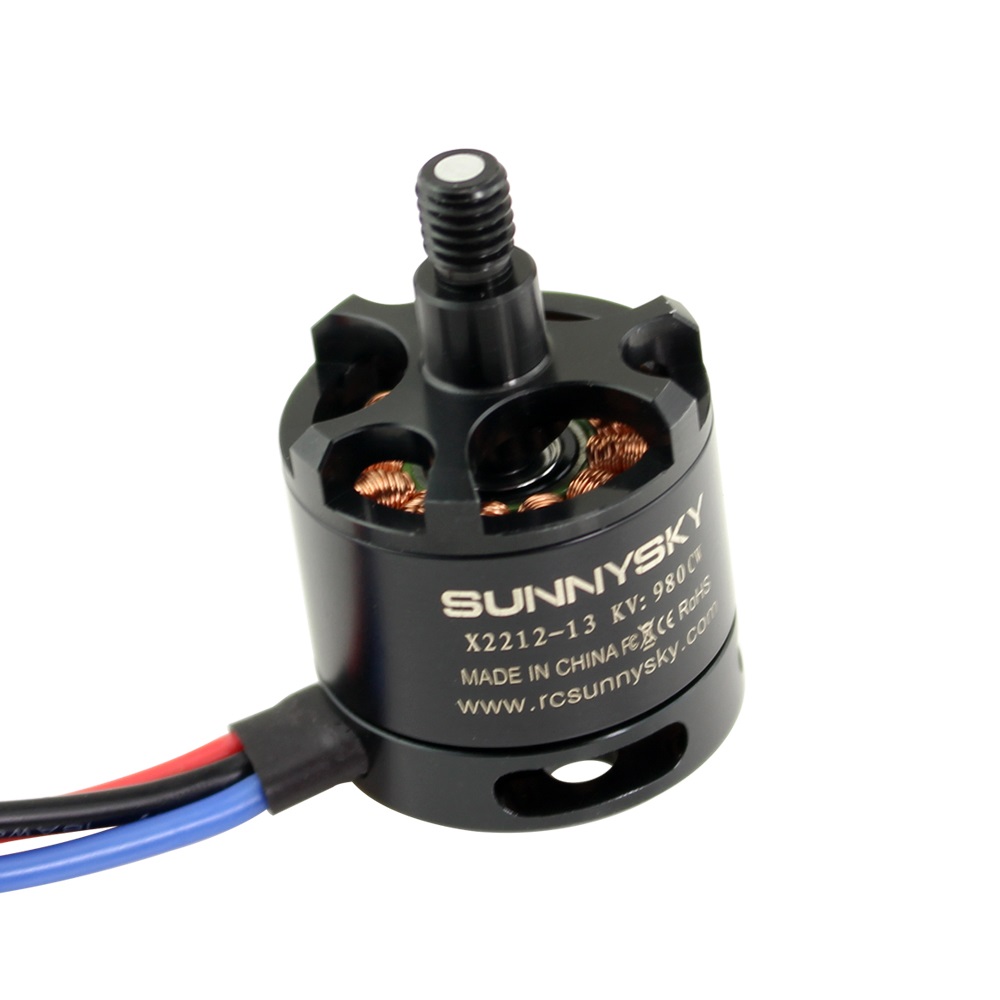

SunnySky X2212 KV980 Brushless Motor - CW
The SunnySky X2212 KV980 is a 22mm stator brushless motor engineered for smooth, high-torque performance in multirotor and RC aircraft applications, compatible with 3S-4S LiPo batteries and 9-10 inch propellers.
Features
- 22x12mm stator size delivers high torque for 9-10 inch propellers.
- 980KV rating optimized for 3S-4S LiPo voltage range.
- 14-pole rotor and 12-slot stator design for smooth, efficient operation.
- 3.175mm (1/8″) shaft diameter for standard propeller mounting.
- Continuous 25A current rating for reliable, high-power flight.
Out of stock
The SunnySky X2212 KV980 brushless motor features a 22mm stator diameter and 12mm stator height, a configuration engineered for high torque output and efficient power delivery. Its 14-pole rotor and 12-slot stator design minimizes cogging torque, resulting in exceptionally smooth rotation and precise throttle control ideal for aerial photography platforms and stable multirotor flight.
Constructed with high-grade materials, the motor maintains a low no-load current of 0.7A at 10V, enhancing overall flight efficiency. With a continuous current rating of 25A and a maximum power handling of 412W, it provides robust performance for sustained flight operations with 9×4.5 to 10×5 inch propellers on 3S or 4S LiPo battery systems.
Additional Information
| Weight | 0.079 kg |
|---|---|
| Dimensions | 9 × 6 × 5 cm |
