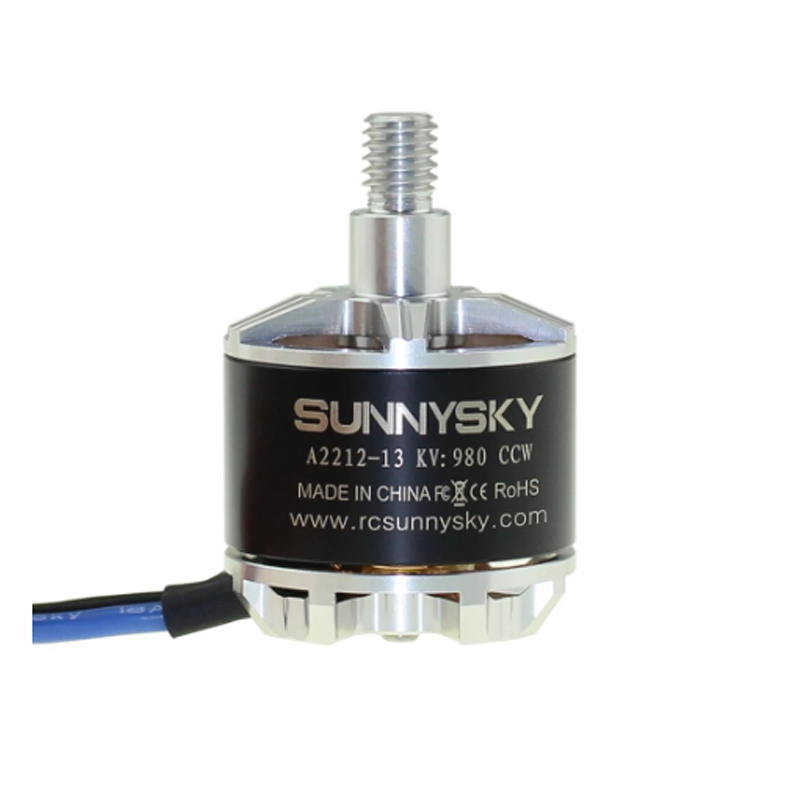

SunnySky A2212 980KV Brushless Motor - CCW
The SunnySky A2212 980KV brushless motor is a 22x12mm stator motor designed for counterclockwise (CCW) rotation, optimized for efficient thrust on 3S-4S LiPo systems. It is engineered for long-range and endurance-focused multirotor builds, compatible with standard 20A ESCs.
Features
- 22x12mm stator size (A2212) with a 980KV rating for efficient, high-torque operation.
- Counterclockwise (CCW) rotation for standard multirotor propeller setups.
- Robust construction with 12 stator arms and 14 rotor poles for smooth, reliable power delivery.
- Designed for 3S-4S LiPo batteries, with a continuous current rating of 20A and a maximum power output of 330W.
- Recommended for 9×4.5-inch propellers, ideal for medium-sized long-range and endurance drones.
Out of stock

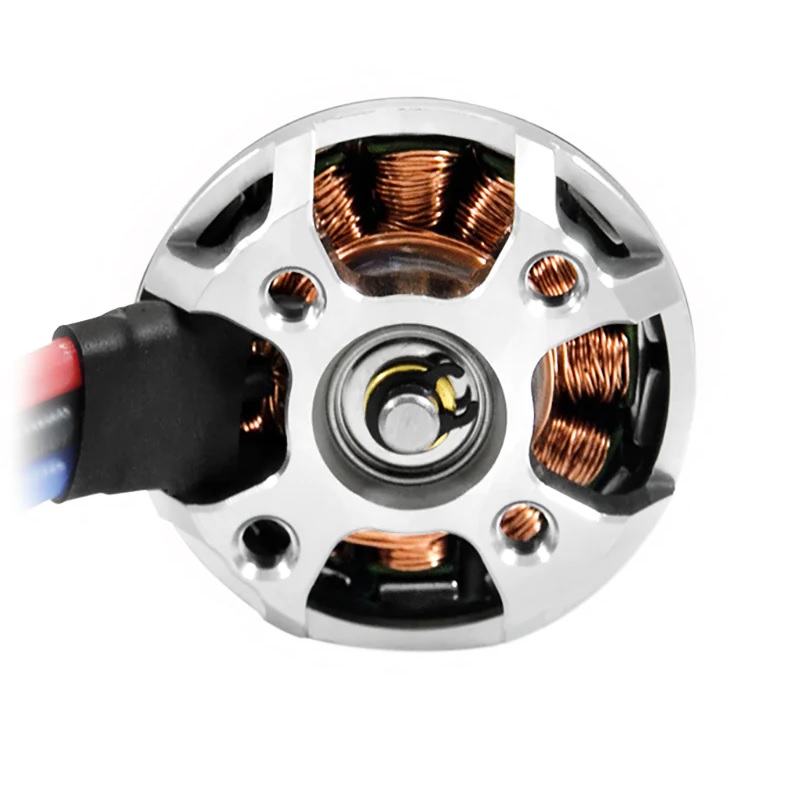

The SunnySky A2212 980KV brushless motor utilizes a 22mm stator diameter and 12mm stator height, providing a solid foundation for generating consistent torque. Its 980KV rating is specifically calibrated to deliver optimal RPMs on 3S and 4S LiPo batteries, balancing thrust output with power efficiency for extended flight times. The motor’s 12-arm stator and 14-pole rotor configuration ensures smooth operation and reliable performance under continuous load.
Engineered with an integrated cooling fin design on the motor bell, the A2212 effectively manages thermal buildup during prolonged use, maintaining performance integrity. The motor shaft is threaded for propellers with built-in nuts, requiring no separate accessories for mounting. With a weight of 56 grams, it offers a favorable power-to-weight ratio for its class, making it a dependable choice for pilots prioritizing flight endurance and stable aerial performance.
Additional Information
| Weight | 0.067 kg |
|---|---|
| Dimensions | 8 × 5 × 4 cm |
