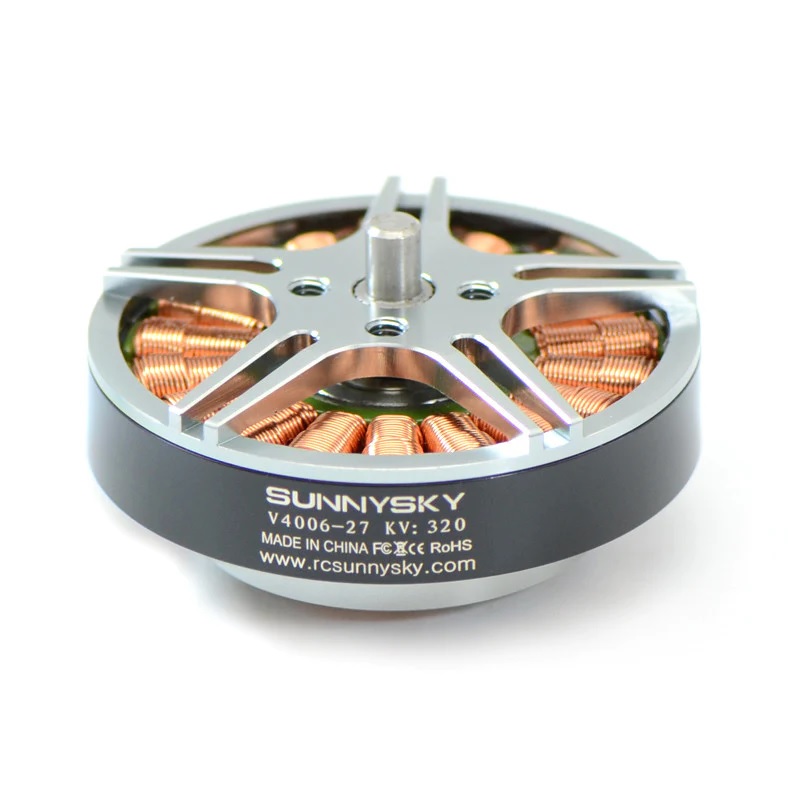

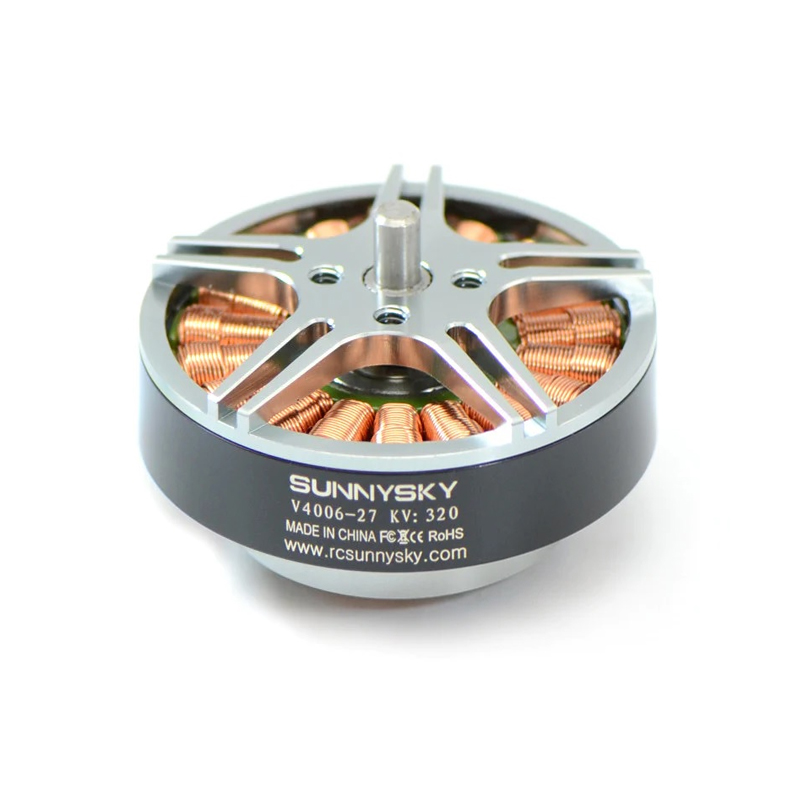

SunnySky V4006 KV320 Brushless Motor
The SunnySky V4006 KV320 is a high-efficiency brushless motor engineered for long-endurance multirotor and heavy-lift UAV applications, featuring a 40mm stator diameter and optimized for low-RPM torque and stable flight performance.
Features
- High-efficiency 40mm stator design optimized for long flight times and stable power delivery.
- KV rating of 320 provides high torque at low RPMs, ideal for large propellers and heavy-lift platforms.
- Constructed with Japanese EZO bearings and a precision-balanced rotor for smooth, quiet, and reliable operation.
- Lightweight, hollow-cut motor cap maximizes the thrust-to-weight ratio for extended endurance.
- Rated for continuous current up to 15A (60s) with a maximum power handling of 375W.
Out of stock
The SunnySky V4006 motor is part of the V series, specifically engineered for professional-grade multirotor aircraft requiring extended flight times and stable power output. Its 40mm stator diameter and 6mm thickness, combined with an 18N24P magnetic configuration, are optimized to produce significant torque at lower rotational speeds, maximizing efficiency during cruise and loiter flight phases.
Structural integrity is ensured through a patented stepped and knurled design on the motor base, which prevents loosening during operation and maintains consistent power delivery. The integration of high-quality Japanese EZO bearings minimizes friction and vibration, contributing to the motor’s smooth performance and longevity under continuous load.
Additional Information
| Weight | 0.066 kg |
|---|---|
| Dimensions | 1.8 × 4.36 × 4.36 cm |
