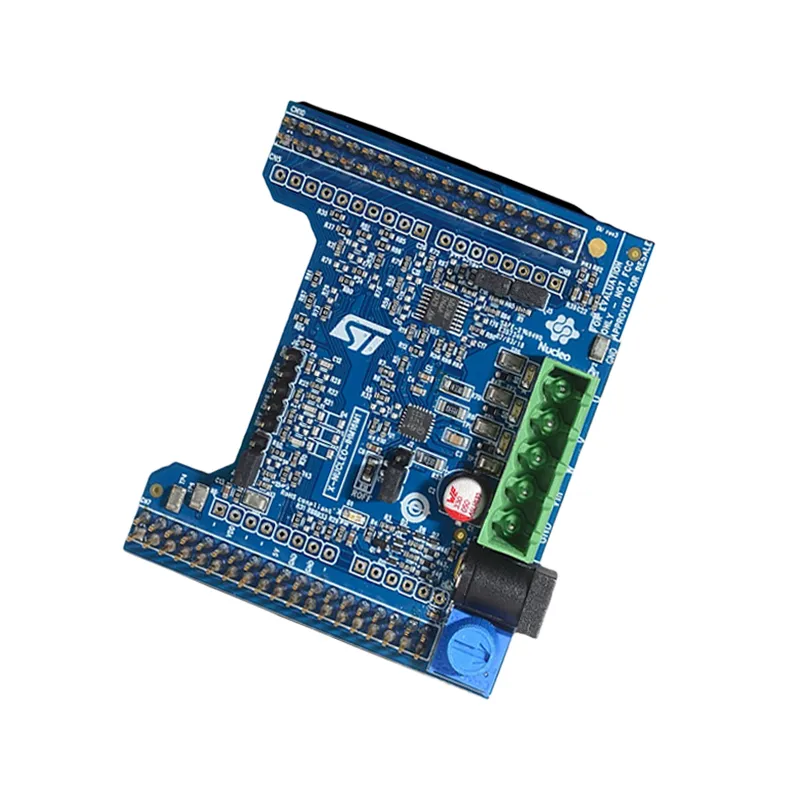

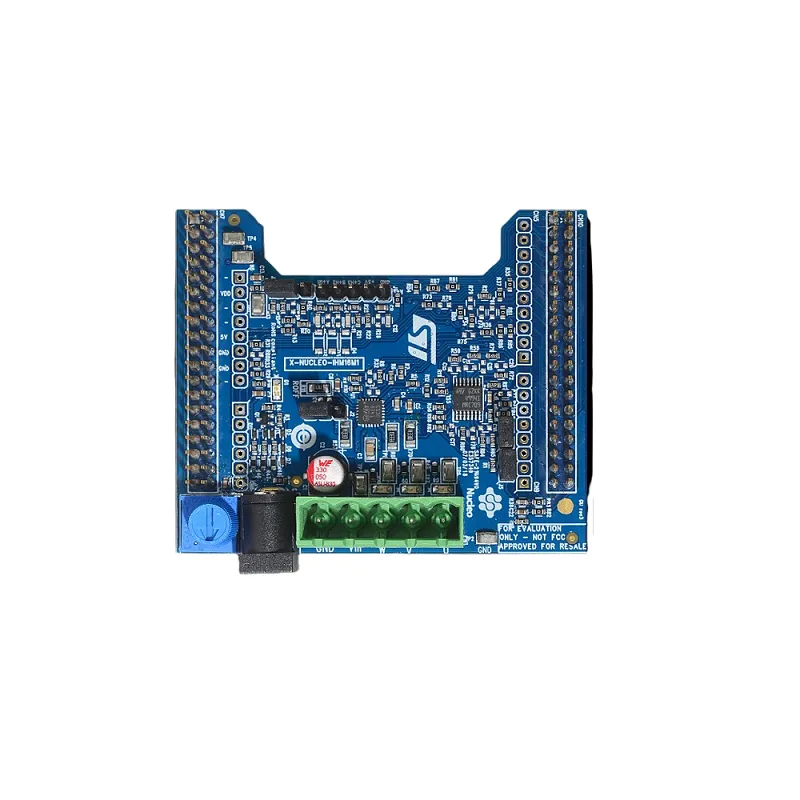

STSPIN830 BLDC Motor Driver Board for STM32 Nucleo
The STSPIN830 BLDC Motor Driver Development Board provides a robust solution for driving three-phase brushless DC motors with STM32 Nucleo platforms. Featuring an operative voltage range of 7 to 45V and output current up to 1.5Arms, it supports both single and three-shunt current sensing for precise motor control.
Features
- Operates with a wide voltage range from 7V to 45V.
- Delivers up to 1.5Arms output current for BLDC motor applications.
- Supports both single-shunt and three-shunt current sensing for precise control.
- Features flexible direct driving with settable 3 or 6 PWM inputs.
- Includes a dedicated standby mode for power efficiency.
Out of stock
This three-phase brushless DC (BLDC) motor driver expansion board, based on the STSPIN830, is designed for seamless integration with STM32 Nucleo development boards. It offers an accessible and efficient solution for controlling BLDC motors within your STM32 Nucleo projects, incorporating advanced single and three-shunt current sensing capabilities.
The STSPIN830 IC integrates a sophisticated PWM current limiter with an adjustable threshold, alongside a comprehensive suite of protection features. Its compatibility with standard Arduino and ST Morpho connectors ensures easy plug-and-play functionality with any STM32 Nucleo development board, allowing for convenient stacking with additional expansion boards to extend project capabilities.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 24 × 17 × 5 cm |
