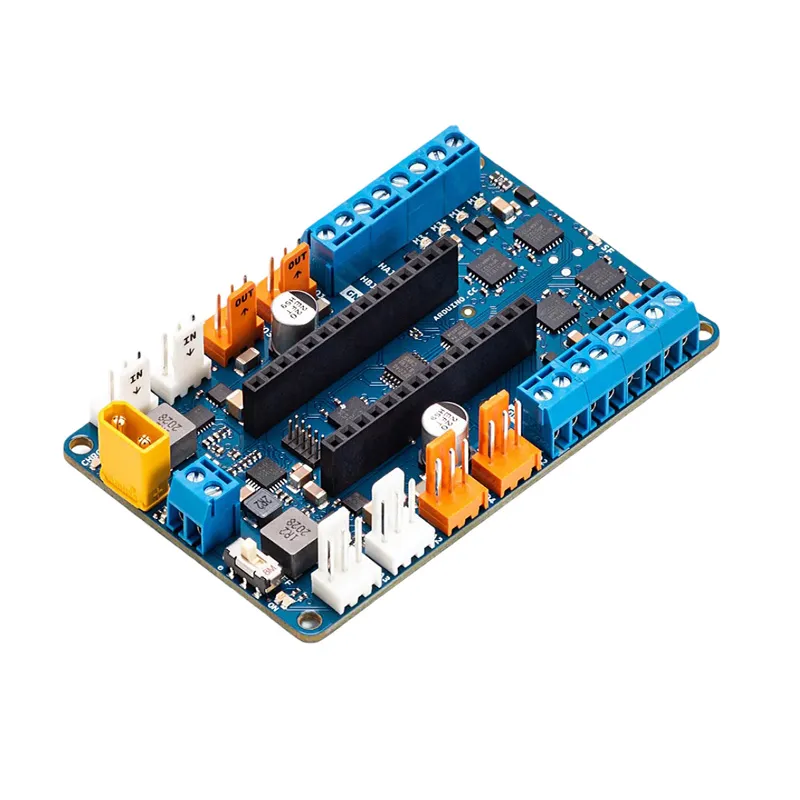

Arduino Nano Motor Carrier ABX00041
The Official Arduino Nano Motor Carrier ABX00041 extends Arduino Nano 33 IoT functionality by providing robust motor control capabilities. It integrates an ATSAMD11 microcontroller, an MP6522 motor driver, a 9-axis IMU, and a Li-ion battery charger, making it ideal for robotic and advanced IoT projects.
Features
- Features an integrated ATSAMD11 (Arm Cortex-M0+ @48 Mhz) microcontroller.
- Includes an MP6522 motor driver, capable of controlling up to four motors.
- Onboard 9-axis Inertial Measurement Unit (IMU) with accelerometer, gyroscope, and magnetometer.
- Integrated battery charger supports single-cell Li-ion batteries for portable applications.
- Provides two dedicated ports for quadrature encoder counting, enhancing motor control precision.
Out of stock
The Official Arduino Nano Motor Carrier ABX00041 serves as a powerful add-on for the Arduino Nano 33 IoT board, significantly extending its capabilities for motor control and advanced sensing. This carrier simplifies the intricate electronics involved in motor management, enabling developers and students to focus on innovative prototyping and project development. Beyond motor control, it offers versatile connectivity for additional actuators and sensors through its array of 3-pin male headers.
Equipped with a comprehensive onboard 9-axis accelerometer, gyroscope, and magnetometer, the ABX00041 provides rich data for motion tracking and orientation. It also features a built-in battery charger for single-cell Li-ion batteries, supporting portable applications, and includes two dedicated ports for precise quadrature encoder counting, essential for closed-loop motor control.
Integration is straightforward: simply connect the carrier to an Arduino Nano 33 board, attach your motors, and power the setup. With the official Arduino Motor Carrier library, users can quickly program and control motors, leveraging the onboard drivers. For optimal motor performance, an external power source, such as a 1-cell Li-ion battery or an external supply, is required to energize the motor drivers and connected motors.
Additional Information
| Weight | 0.051 kg |
|---|---|
| Dimensions | 12 × 6 × 3 cm |
