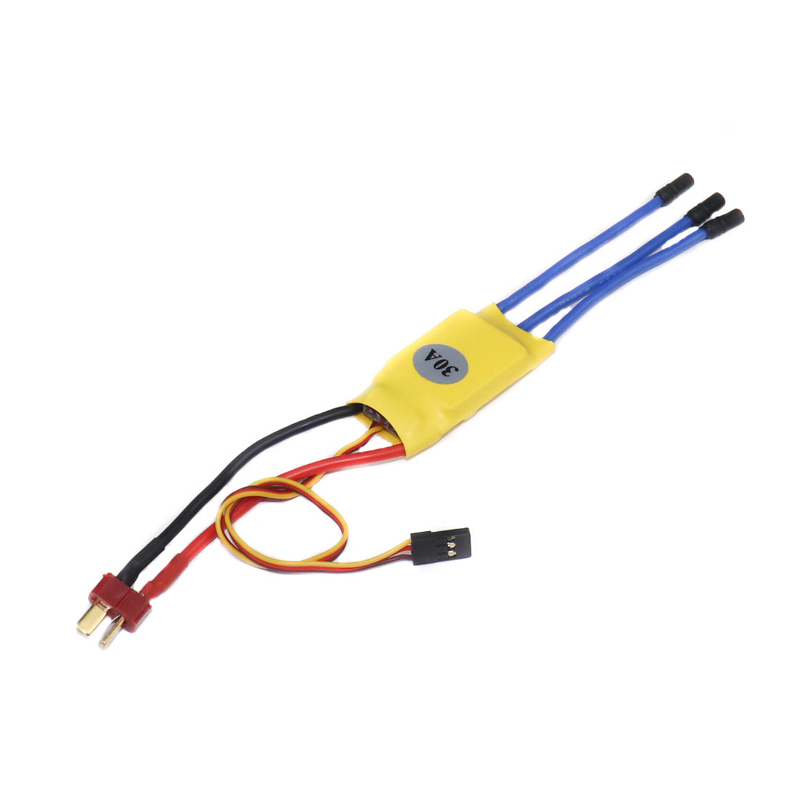

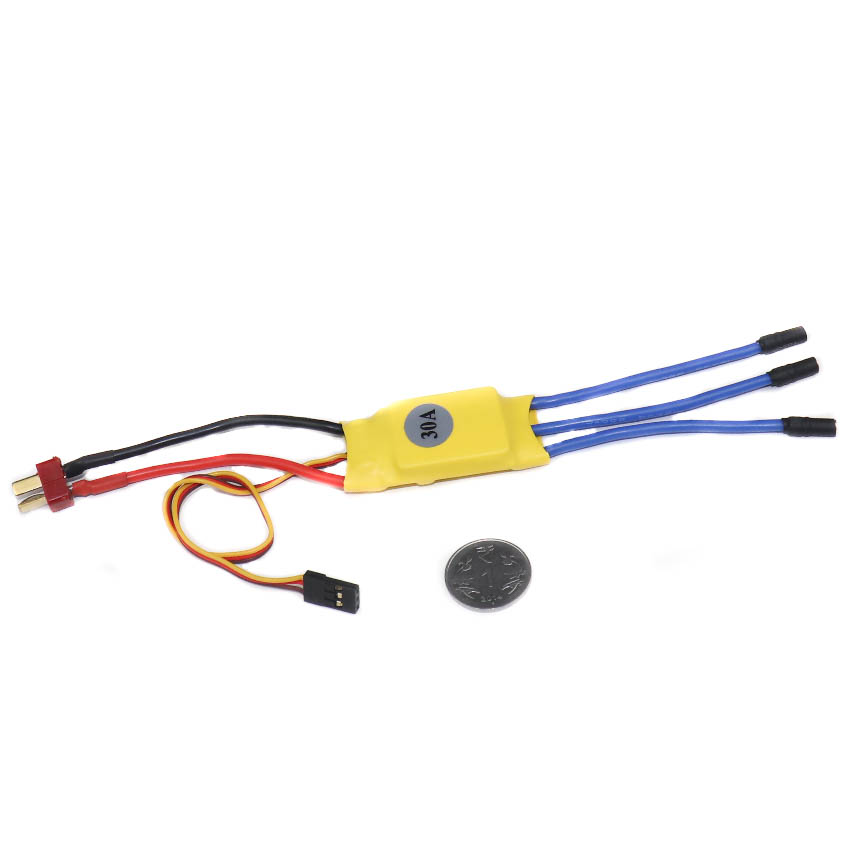

Standard 30A BLDC ESC 2-3S LiPo with 5V/3A BEC

This ESC is designed for use with 2S to 3S LiPo batteries, providing an input voltage range of approximately 11.1V to 11.7V. It also supports 4-10 cell Ni-MH batteries with auto-detection. This versatility makes it suitable for various small to medium-sized RC aircraft and multirotor applications, ensuring broad compatibility.

The integrated 5V/3A BEC (Battery Eliminator Circuit) provides a stable 5-volt power supply with up to 3 amps of current. This regulated output is crucial for powering your flight controller, radio receiver, and other low-power auxiliary electronics directly from the main flight battery, eliminating the need for a separate UBEC module.

The ESC incorporates an automatic low battery voltage protection system for LiPo cells. It initiates a slow-down of motor power when any cell drops to 3.0V, signaling the pilot to land. If the voltage further decreases to 2.9V per cell, the ESC will cut off power to prevent irreversible battery damage, ensuring battery longevity.

This ESC comes pre-soldered with essential connectors for immediate use. For battery connection, it features a male Deans (T) connector, widely used for its robust and secure connection. On the motor side, it provides three female 3.5mm gold bullet connectors, ensuring efficient power transfer to your brushless motors with minimal resistance.
