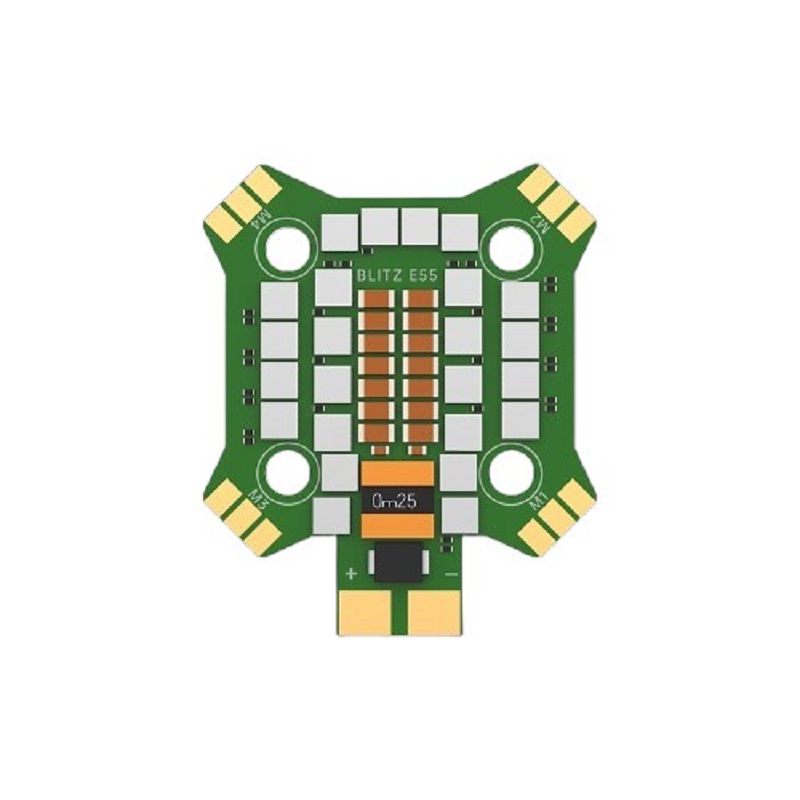

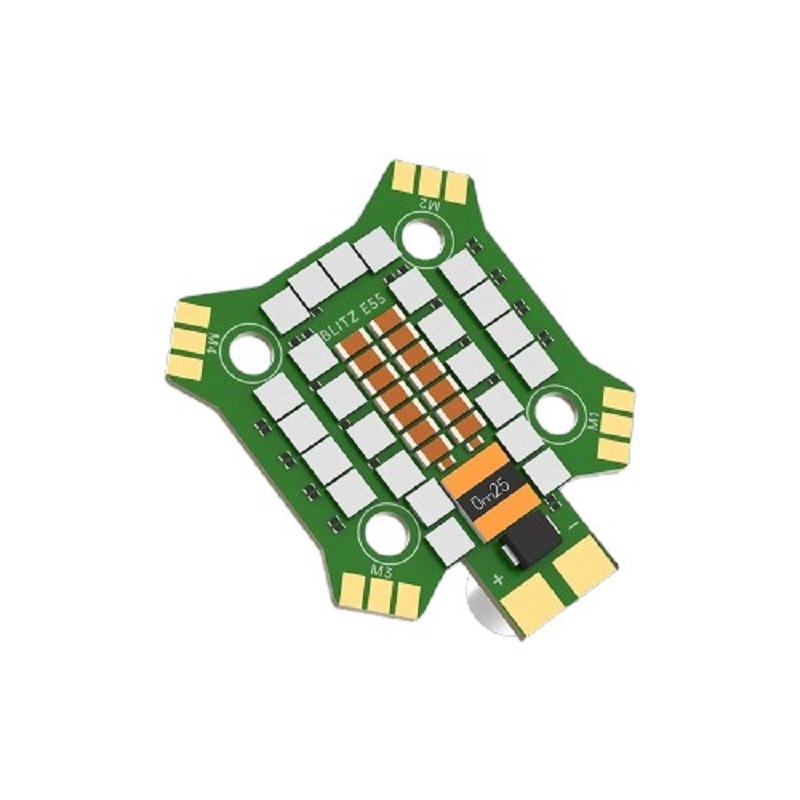

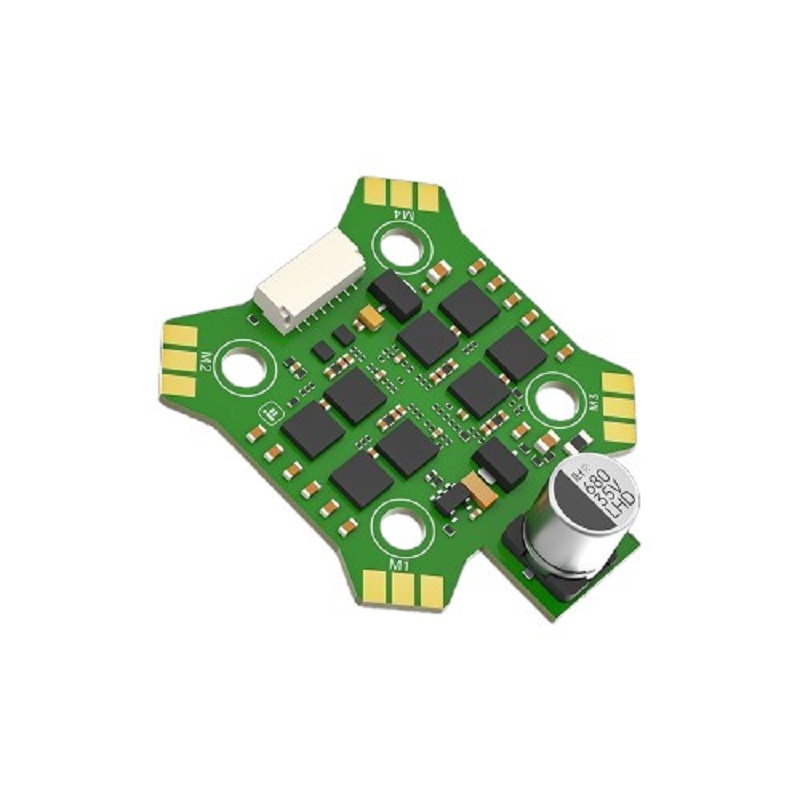

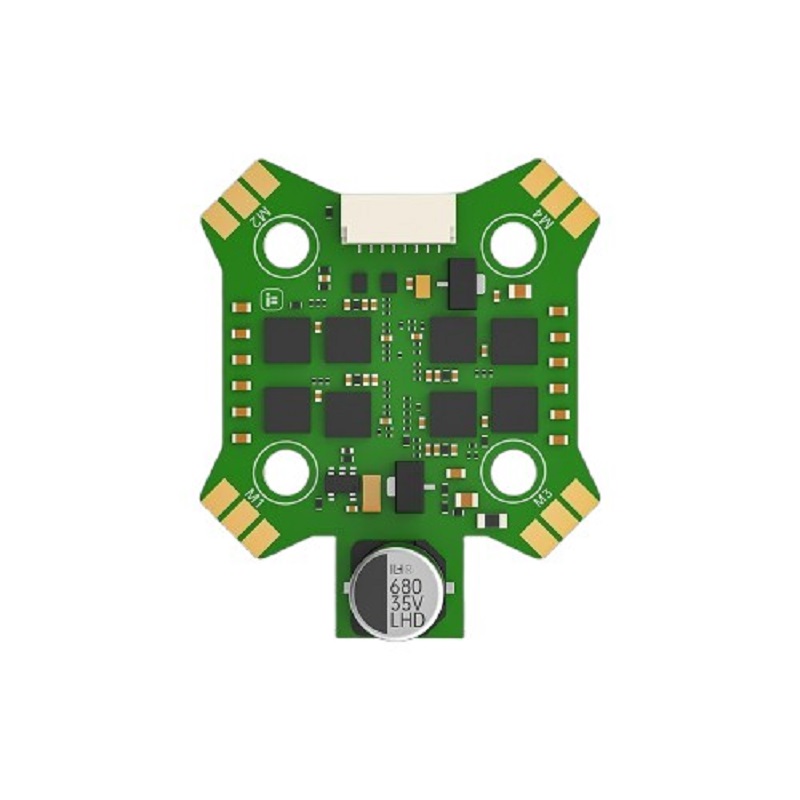

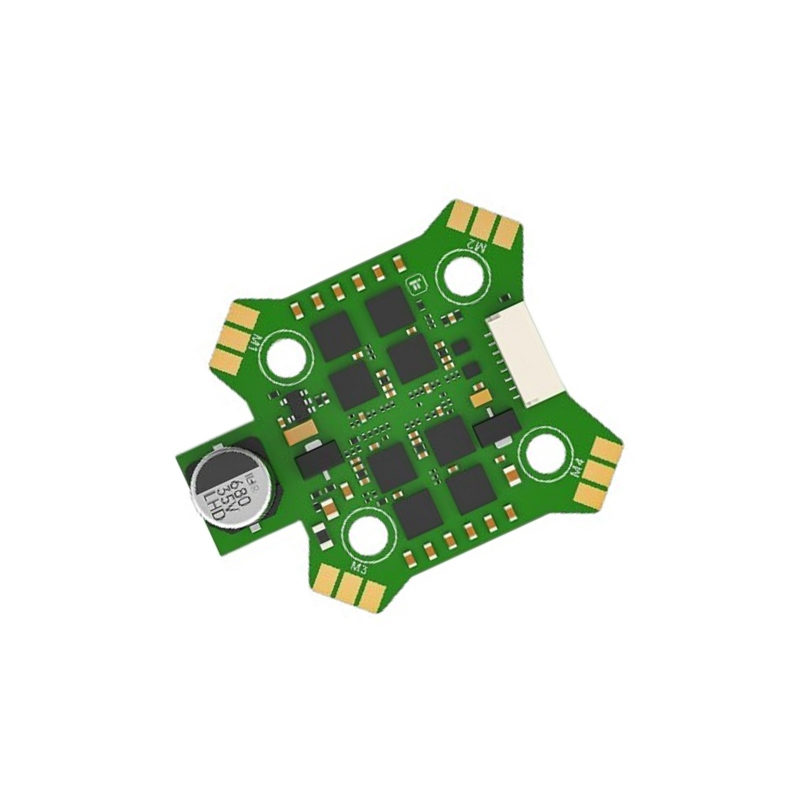

iFlight BLITZ Mini E55 4-in-1 2-6S ESC
The iFlight BLITZ Mini E55 is a high-performance 4-in-1 ESC engineered for mini FPV builds, offering a G071 MCU for precise motor control and 55A continuous current capability for demanding setups. Supporting 2-6S LiPo input and DShot protocols, it provides robust power delivery within a compact 20x20mm mounting footprint.
Features
- G071 MCU for smooth and responsive motor control.
- 55A continuous / 60A burst current per channel for high-power demands.
- Supports 2-6S LiPo input for versatile power configurations.
- Compact 20x20mm mounting for mini FPV drone frames.
- Integrated current sensor for real-time power monitoring.
Out of stock
The iFlight BLITZ Mini E55 4-in-1 ESC represents a robust and compact solution for mini FPV drone builds requiring high current output. Featuring a powerful G071 MCU, this ESC ensures extremely smooth and responsive motor control, crucial for agile freestyle and racing applications. Its architecture is designed to manage substantial power, providing a continuous 55A per channel, with burst capabilities up to 60A, making it suitable for even the most demanding brushless motors on 2-6S LiPo power systems.
Engineered with durability in mind, the BLITZ Mini E55 integrates effective thermal management to maintain optimal operating temperatures under intense loads. It supports a range of digital DShot protocols (DShot150/300/600), alongside traditional MultiShot and OneShot, guaranteeing broad compatibility with modern flight controllers and precise throttle response. The integrated current sensor offers real-time power consumption data, vital for flight efficiency monitoring and battery management. Its 20x20mm mounting pattern aligns perfectly with popular mini frame designs, simplifying installation and integration into compact airframes.
Additional Information
| Weight | 0.046 kg |
|---|---|
| Dimensions | 7 × 7 × 3 cm |
