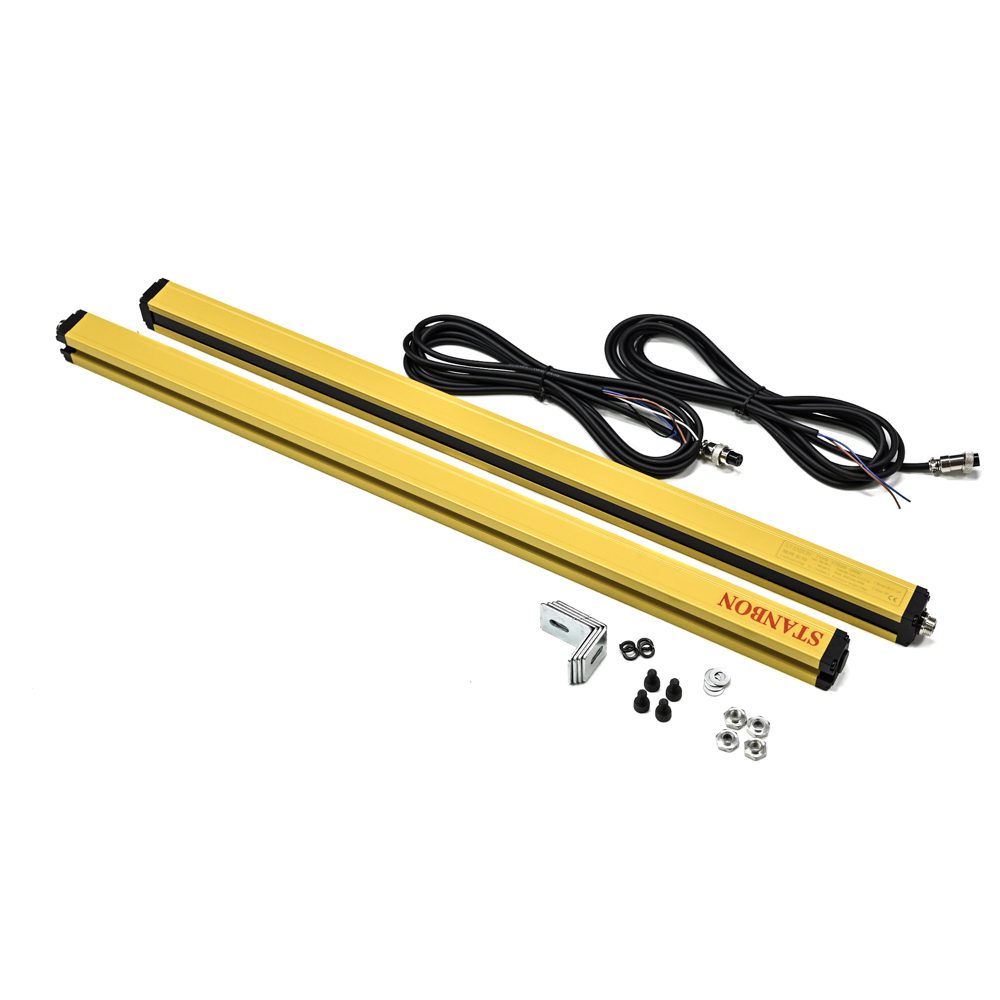

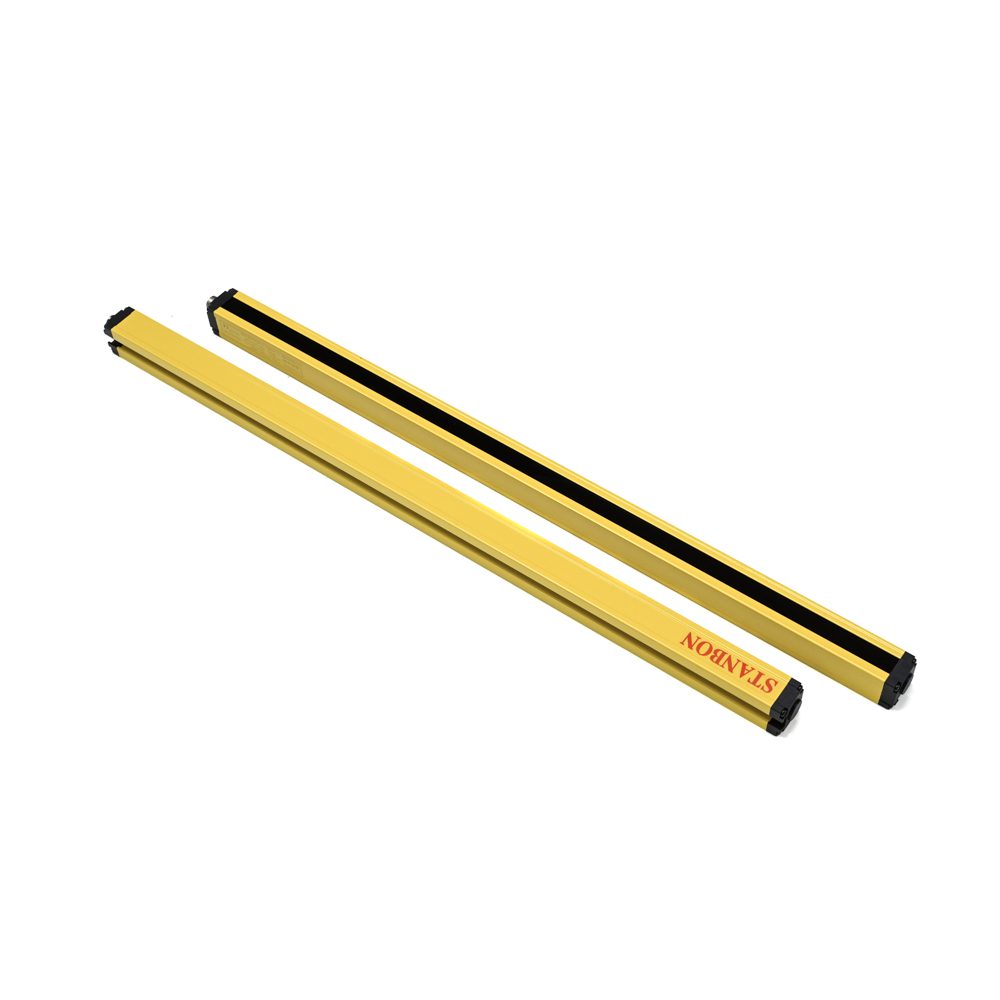

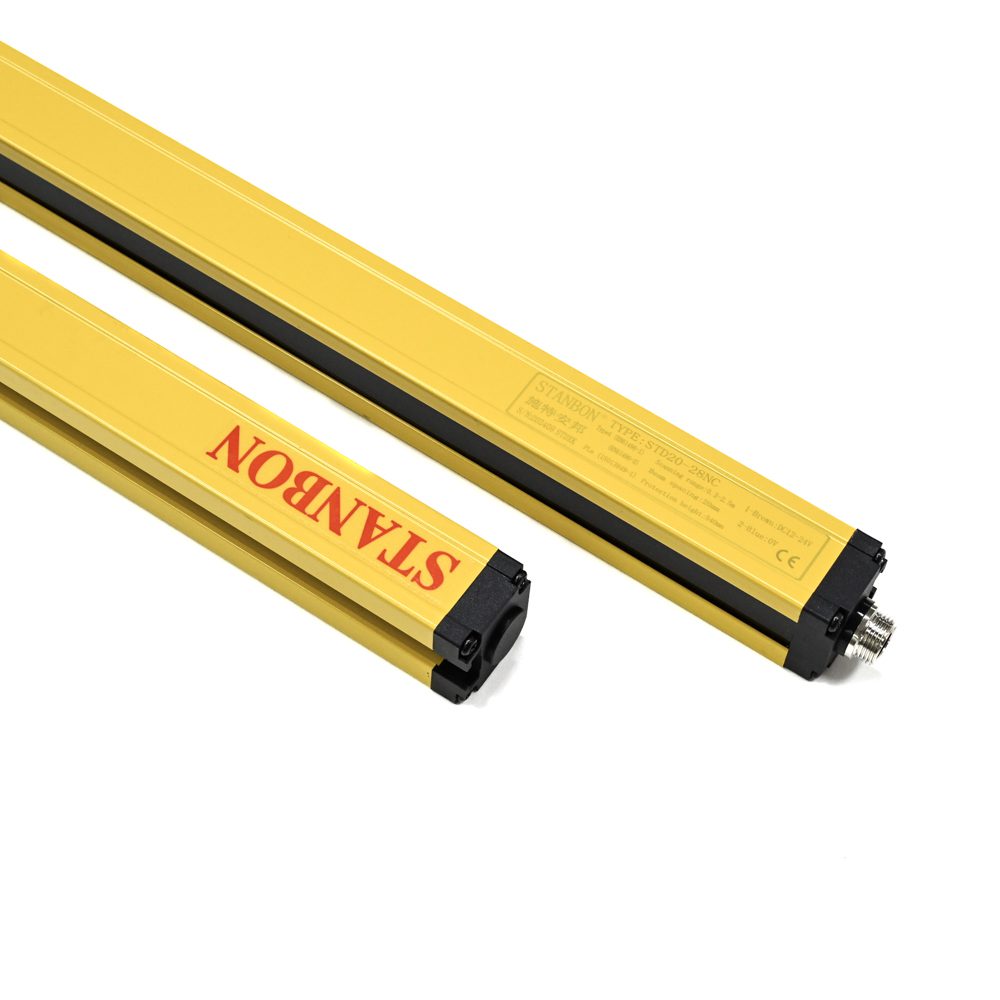

StanBon STD20-28NC Light Curtain Sensor, 28 Beams, 20mm Pitch, 540mm Height, 12-24V DC
The StanBon STD20-28NC is a 28-beam infrared safety light curtain sensor with a 20mm beam pitch and a 540mm detection height, designed for 12-24V DC industrial control systems. It provides precise, non-contact object detection for safeguarding hazardous access points and automated machinery.
Features
- 28 independent infrared beams for high-resolution detection.
- 20mm beam pitch ensures precise detection of small objects.
- 540mm total detection height for guarding vertical access points.
- 12-24V DC wide-range power input for industrial compatibility.
- Robust housing designed for demanding factory and automation environments.
Out of stock
The STD20-28NC Light Curtain Sensor operates on the principle of infrared beam interruption. An array of 28 synchronized infrared LEDs and corresponding phototransistor receivers creates a protective curtain. When any single beam is broken, the sensor’s output changes state, signaling a control system (e.g., PLC or safety relay) to halt machinery or trigger an alarm. This provides a non-contact safety solution superior to physical barriers or mats.
Engineered for industrial durability, the sensor’s housing protects internal electronics from dust, vibration, and typical ambient light interference. Its 12-24V DC operating range allows direct integration with standard industrial power supplies and logic controllers, making it a reliable component for Category 2 or 3 safety circuits as per relevant standards.
Additional Information
| Weight | 1.42 kg |
|---|---|
| Dimensions | 72 × 10 × 9 cm |
