ST-70AB Float Switch Water Level Controller - Double Circuit Pump Control

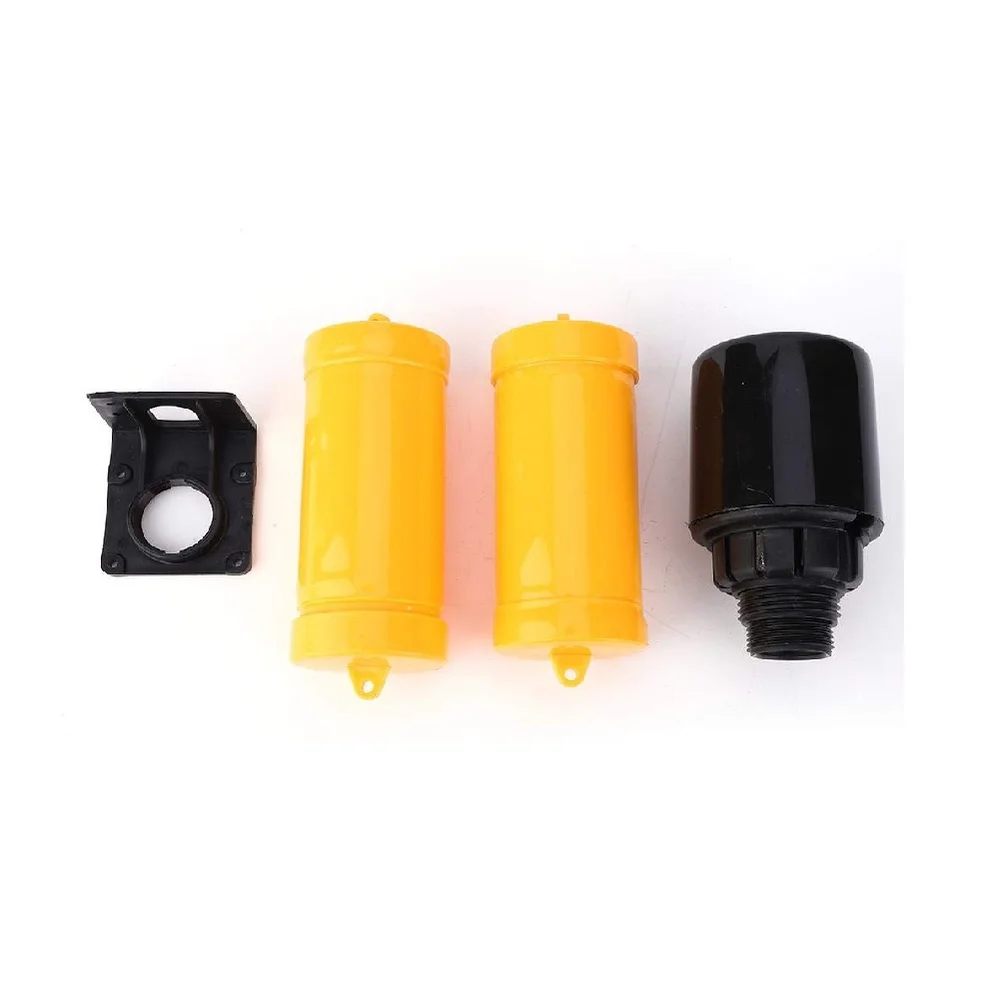

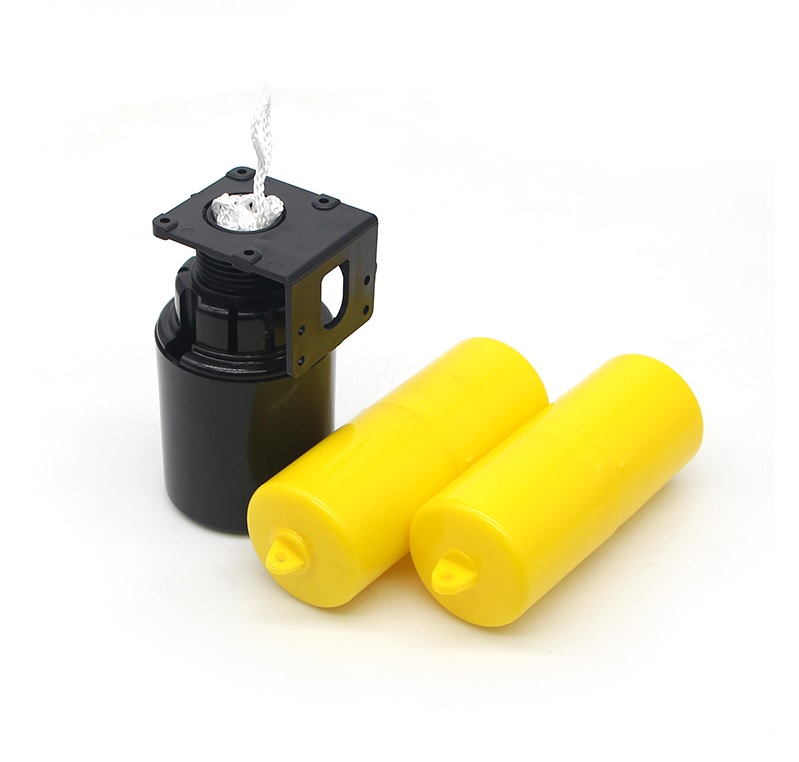

The ST-70AB Float Switch Water Level Controller is a double-circuit, automatic control switch designed for managing water inflow and outflow in pumping systems. Featuring a stable, solid float ball and a moisture-sealed plastic housing, it provides reliable level sensing for both household and industrial applications with simple 3/4″ or 1″ NPT conduit mounting.
Features
- Dual-circuit (A/B) design for independent control of water supply and pumping operations.
- Stable solid float ball ensures accurate level detection without surface floating.
- Sealed plastic housing provides moisture-proof protection for extended durability.
- Direct mounting with 3/4″ and 1″ NPT threaded conduits and included L-type bracket.
- Rated for 5A operating current, suitable for direct control of pumps and solenoid valves.
Out of stock
The ST-70AB is a mechanical float switch engineered for automatic liquid level control in tanks, reservoirs, and sumps. Its principle of operation relies on the buoyancy of a solid float ball, which actuates internal micro-switches to open or close electrical circuits based on preset high and low water levels. The dual-circuit configuration allows one circuit (A) to control filling (inflow) and the other (B) to control draining (outflow), enabling fully automated pump cycling.
Constructed with a sealed plastic housing, the unit is protected against moisture ingress, ensuring reliable performance in damp environments. The design incorporates standard 3/4″ and 1″ NPT threaded ports for easy integration into piping systems, complemented by an L-bracket for flat surface mounting. With a 5A current rating, it can directly switch small to medium-sized AC pumps or interface with larger contactors and PLC control systems for industrial automation.
Additional Information
| Weight | 0.221 kg |
|---|---|
| Dimensions | 15 × 14 × 5 cm |
