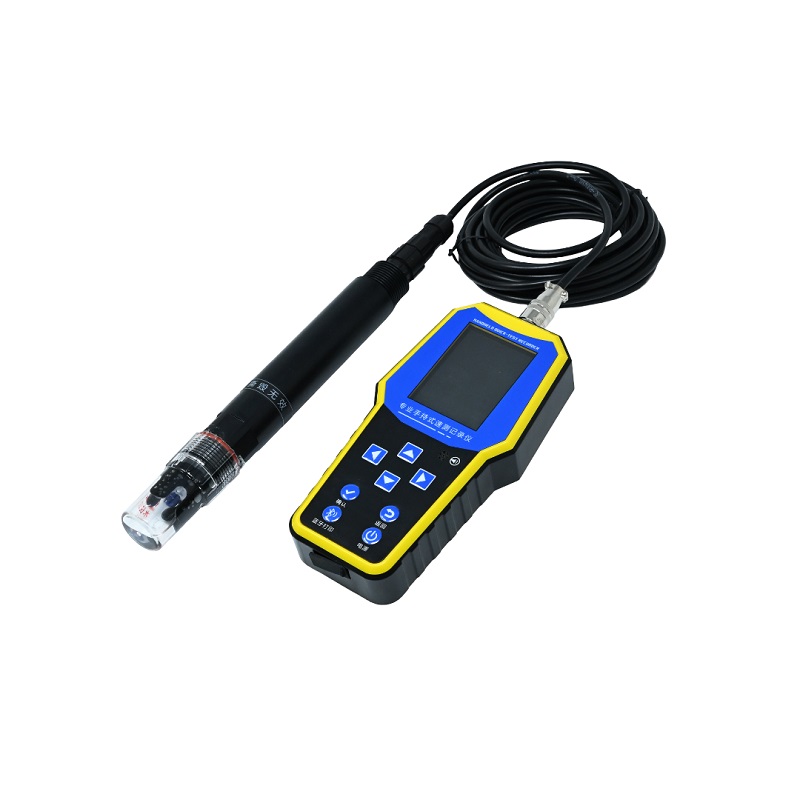

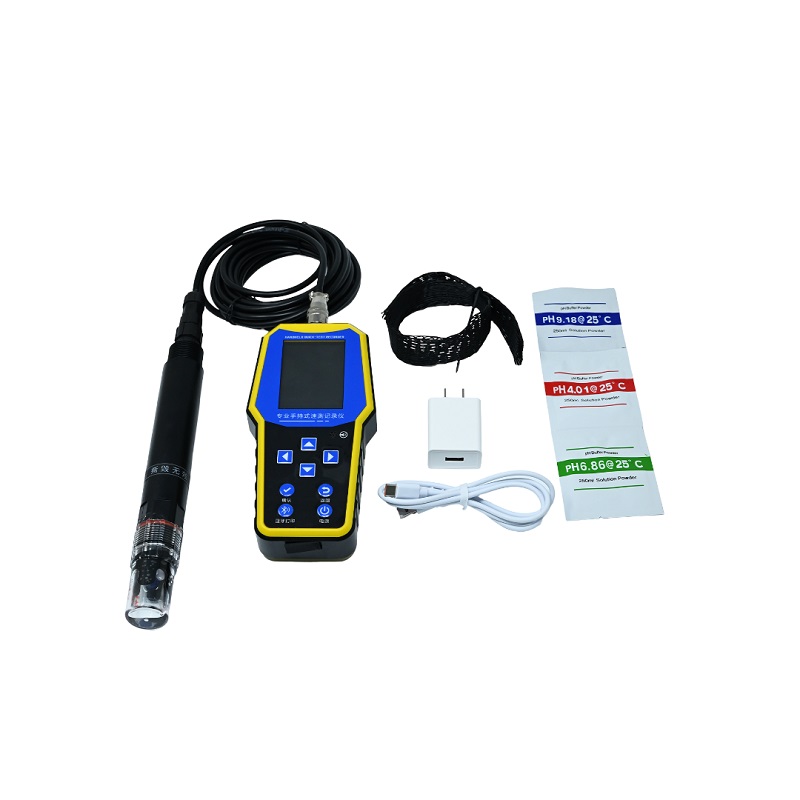

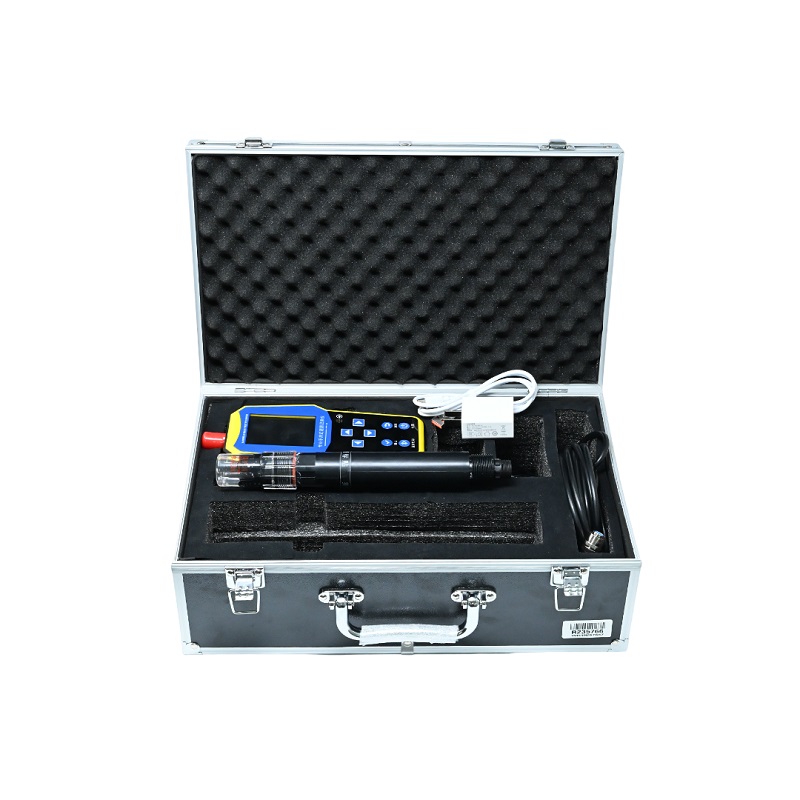

SN-300HHT-PH-N01-201T Handheld Water Quality pH Transmitter (RS485 Modbus)
The SN-300HHT-PH-N01-201T is a handheld pH transmitter designed for field and laboratory water quality analysis, featuring RS485 Modbus-RTU communication for seamless integration with SCADA, PLCs, and data acquisition systems. It provides precise pH measurements with a high-resolution 2.8″ LCD for real-time monitoring in demanding environments.
Features
- High-precision handheld pH transmitter with RS485 Modbus-RTU communication interface.

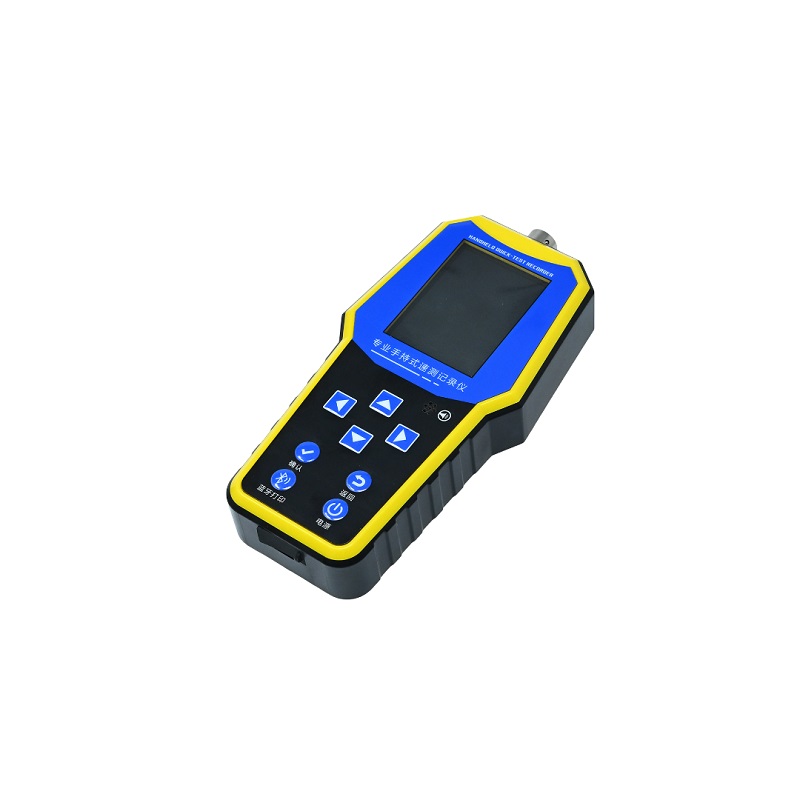

- Large 2.8″ full-color LCD screen for clear real-time data display in field conditions.
- Integrated 5000mAh rechargeable lithium battery supports ≥8 hours of continuous operation.
- Extensive onboard storage capacity for up to 340,000 measurement records.
- Rugged ABS engineering plastic housing rated for operation from -20°C to 60°C.
Out of stock

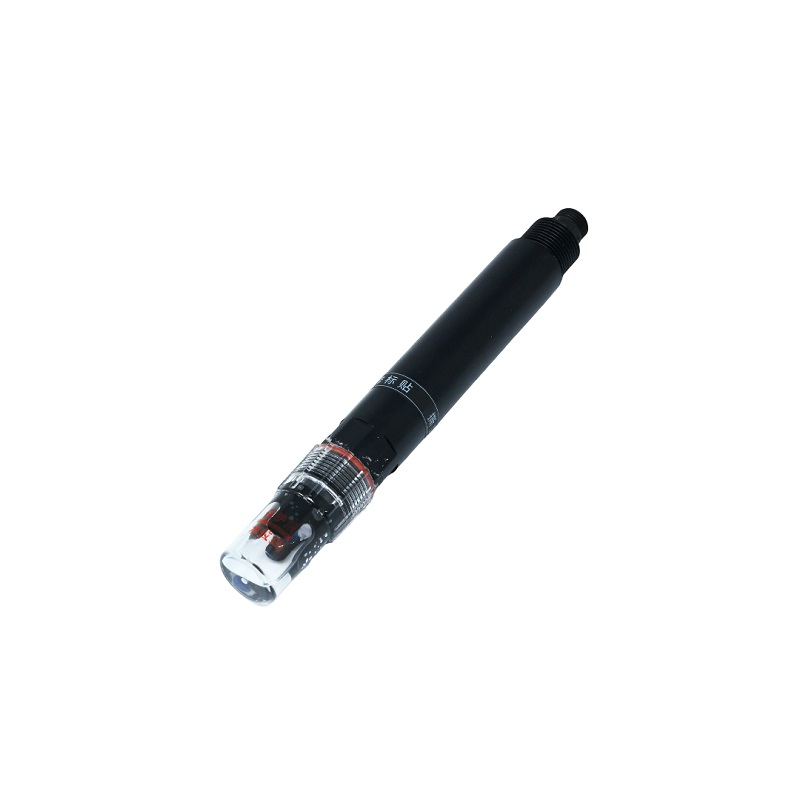

The SN-300HHT-PH-N01-201T is a professional-grade handheld transmitter engineered for accurate pH measurement in water quality monitoring applications. It employs a high-impedance input circuit paired with a precision pH electrode to deliver stable readings, with a fast response time of ≤5 seconds. The device is built for portability and durability, featuring an ABS plastic housing that withstands harsh environmental conditions from -20°C to 60°C.
Communication is handled via an RS485 interface using the Modbus-RTU protocol, enabling direct connection to industrial control systems, data loggers, and remote monitoring networks. The unit includes comprehensive data management features, such as one-click USB export and configurable over-limit alarms with audible buzzer prompts, making it suitable for applications in environmental compliance, aquaculture, wastewater treatment, and industrial process monitoring.
Additional Information
| Weight | 1.741 kg |
|---|---|
| Dimensions | 37 × 23 cm |
