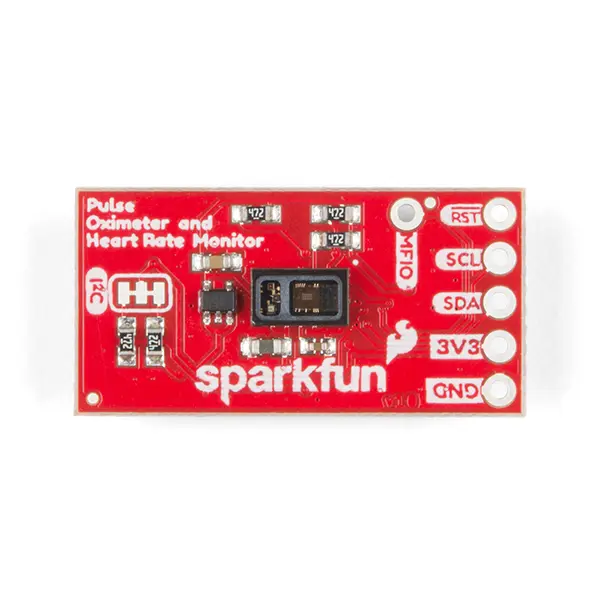

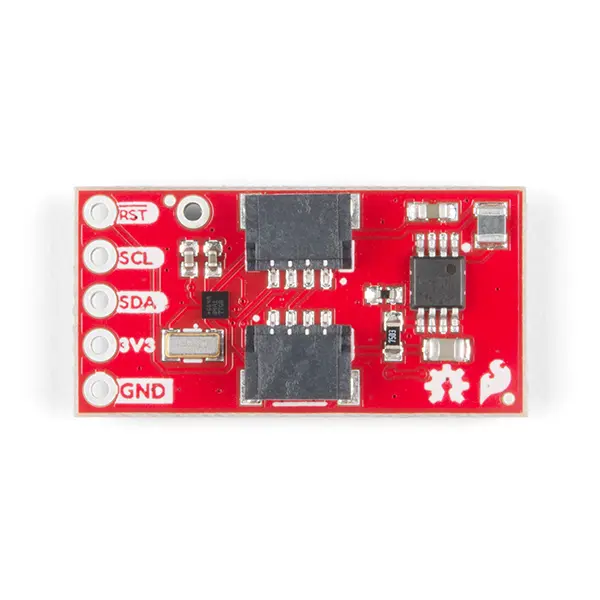

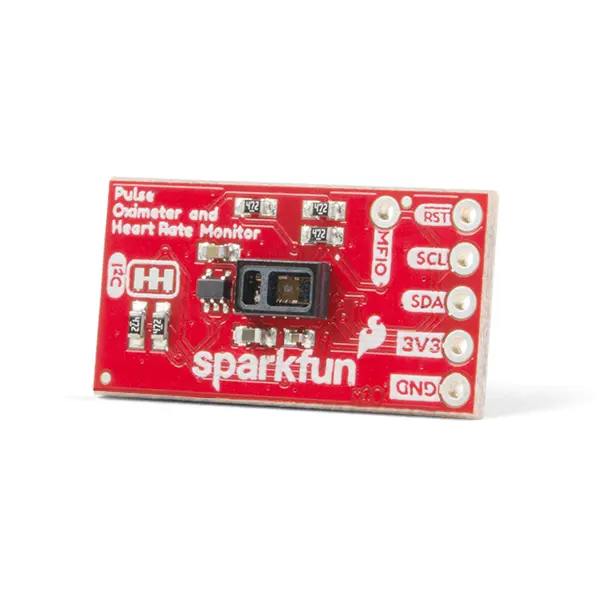

SparkFun Pulse Oximeter and Heart Rate Sensor - MAX30101 & MAX32664 (Qwiic)
The SparkFun SEN-15219 is a high-performance, Qwiic-enabled biometric sensor module integrating the MAX30101 optical sensor and MAX32664 biometric hub. It provides I2C-based heart rate (HR) and blood oxygen saturation (SpO2) data with robust motion artifact resilience, ideal for integration with Arduino, Raspberry Pi, and other 3.3V/5V microcontroller platforms.
Features
- Integrated MAX30101 PPG sensor and MAX32664 biometric co-processor for accurate HR & SpO2.
- Qwiic (I2C) connectivity for fast, solderless prototyping and system integration.
- Advanced algorithms provide motion artifact resilience and automatic gain control.
- Compact form factor (25.4mm x 12.7mm) designed for wearable and portable device integration.
- Wide operating temperature range from -40°C to +85°C for robust performance.
Out of stock
This sensor module employs a reflective photoplethysmography (PPG) principle. The MAX30101 utilizes integrated LEDs and photodetectors to measure light absorption variations in blood vessels, providing raw optical data. The onboard MAX32664 Biometric Sensor Hub, a Cortex-M4 based processor, handles all complex signal processing, including digital filtering, R-wave detection, and pressure compensation, outputting fully processed heart rate and SpO2 values via I2C.
The module is designed for reliable performance in dynamic environments, featuring integrated cover glass for optical stability and robust mechanical protection. Its Qwiic connector simplifies wiring, requiring only connection to power, ground, and I2C lines for rapid integration into wearable fitness monitors, hearables, portable medical devices, and mobile health applications.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4 × 4 × 1 cm |
