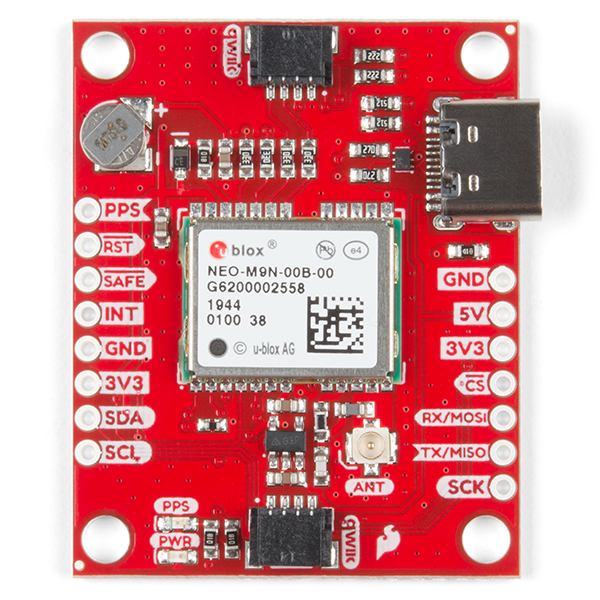

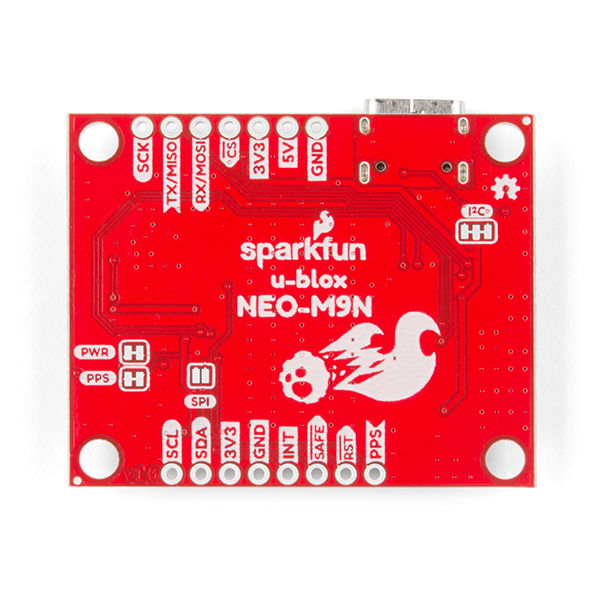

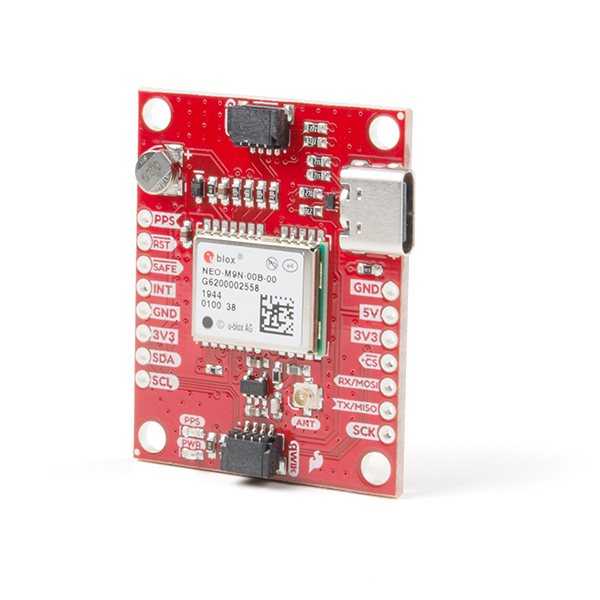

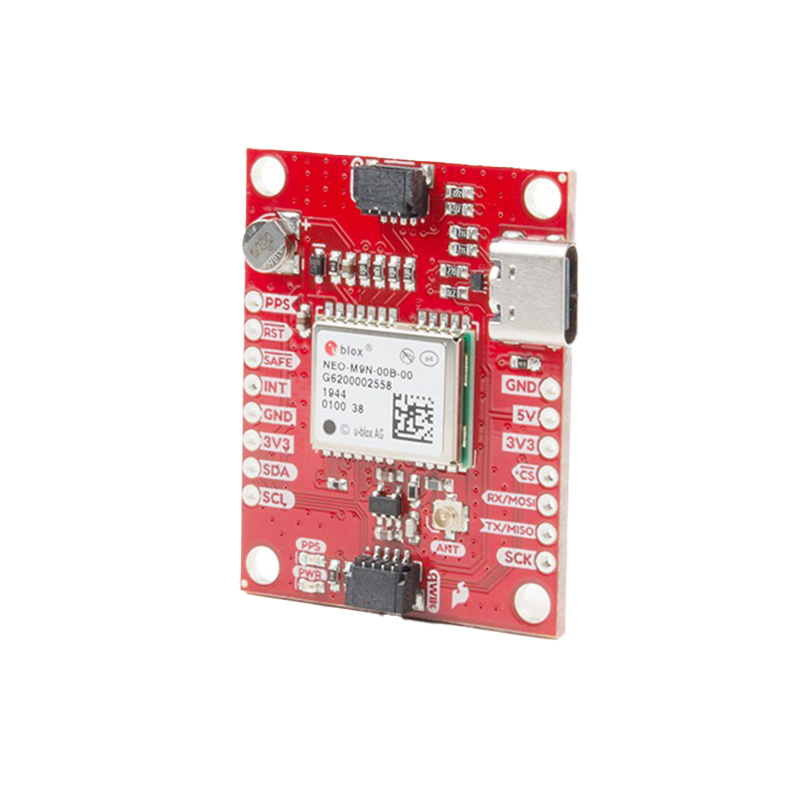

SparkFun GPS Breakout - NEO-M9N U.FL (Qwiic)
The SparkFun NEO-M9N GPS Breakout is a high-quality, 92-channel u-blox M9 engine GNSS receiver, supporting concurrent reception from GPS, GLONASS, Galileo, and BeiDou constellations. With its Qwiic compatibility and ~1.5 meter accuracy, it offers precise and reliable navigational data for a wide range of drone and robotic applications.
Features
- Features the robust u-blox NEO-M9N 92-channel GNSS receiver.
- Achieves ~1.5 meter horizontal positioning accuracy with multi-constellation support.
- Enables concurrent reception of GPS, GLONASS, Galileo, and BeiDou for enhanced reliability.
- Integrated U.FL connector simplifies external antenna integration.
- Qwiic compatible for solderless I2C connectivity, preserving UART ports.
Out of stock
The SparkFun NEO-M9N GPS Breakout provides advanced global navigation satellite system capabilities, leveraging a powerful u-blox M9 engine. This module is designed for applications demanding high precision and fast lock times, supporting simultaneous reception from four major GNSS constellations: GPS, GLONASS, Galileo, and BeiDou. This concurrent multi-GNSS capability significantly improves positioning accuracy, particularly in challenging environments where line-of-sight to satellites can be obstructed.
Equipped with an onboard rechargeable battery, the NEO-M9N ensures backup power to maintain ephemeris data, enabling rapid hot locks within seconds upon power-up. Connectivity is flexible, offering both I2C (via Qwiic for plug-and-play integration) and UART interfaces, accommodating various system architectures without monopolizing critical communication ports. The integrated U.FL connector allows for easy attachment of a preferred external antenna, optimizing signal reception and installation flexibility.
Additional Information
| Dimensions | 10 × 5 × 1 cm |
|---|
