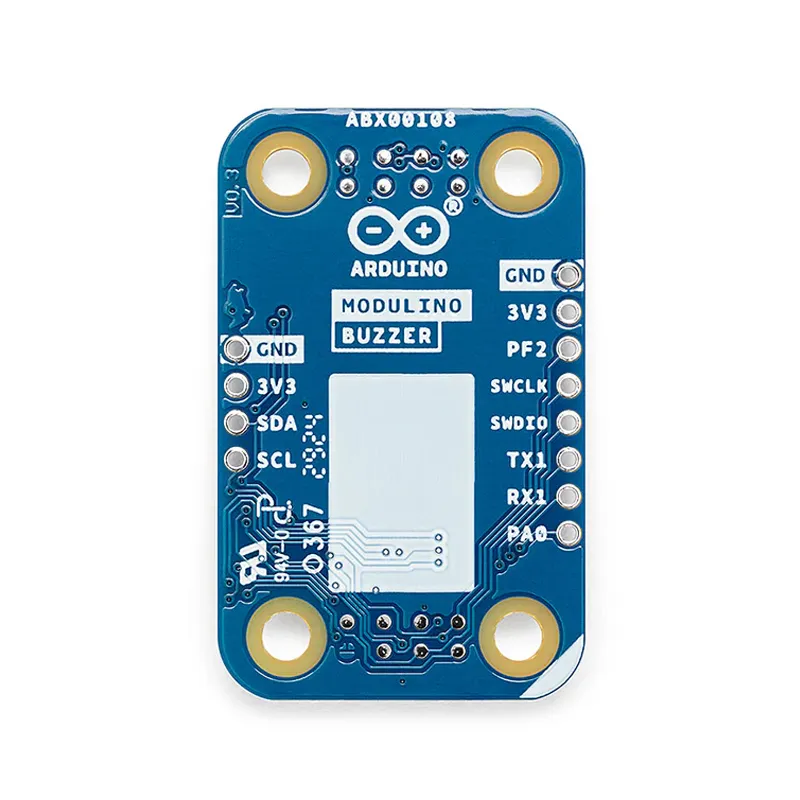

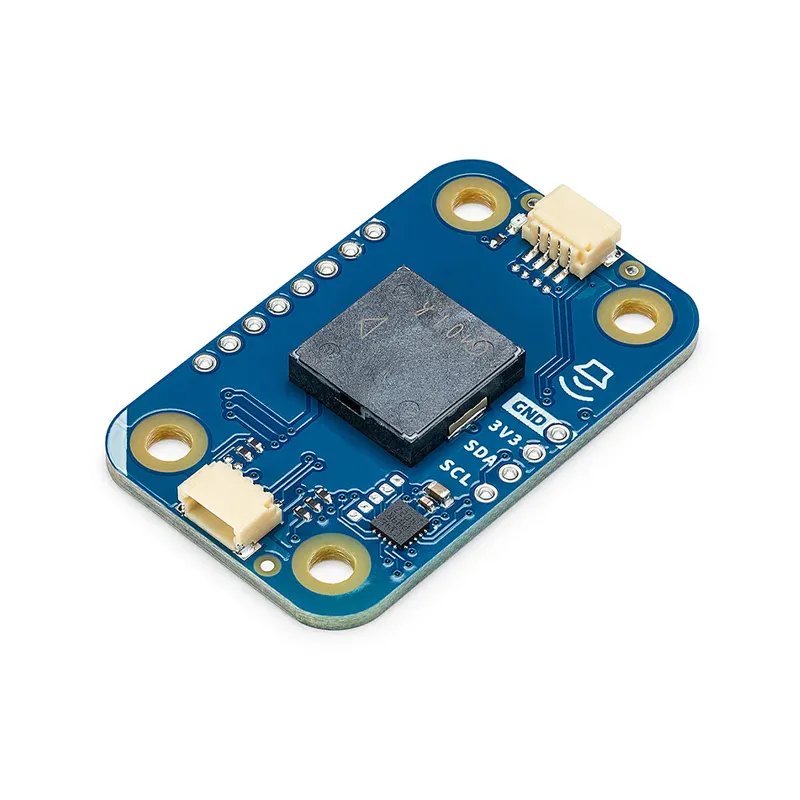

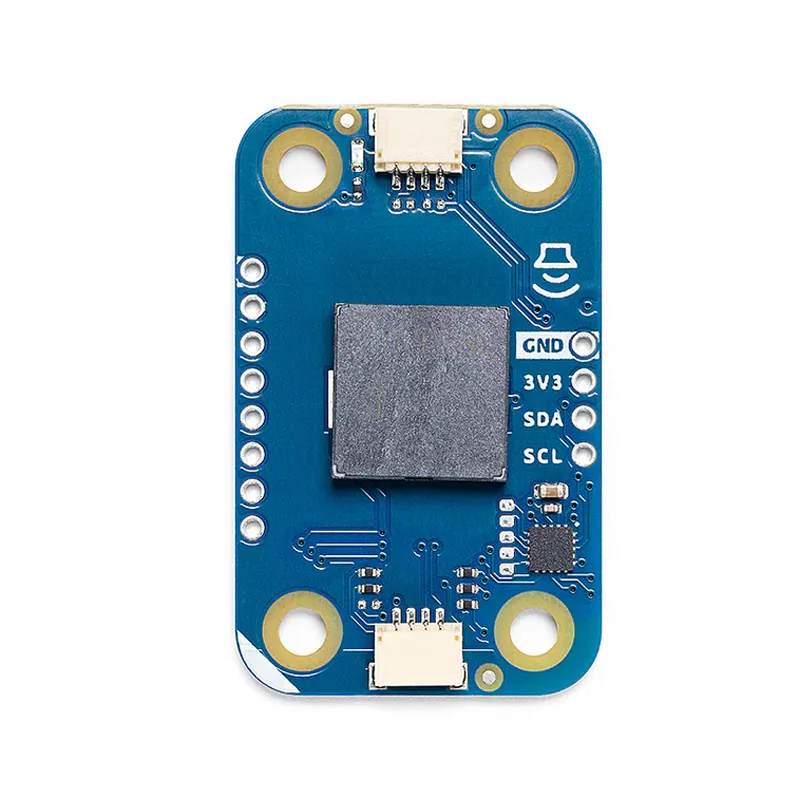

Arduino Modulino Buzzer Module ABX00108
Arduino Modulino Buzzer Module ABX00108 - Image 2
Arduino Modulino Buzzer Module ABX00108 - Image 3
Arduino Modulino Buzzer Module ABX00108 - Image 4
SKU: SBCD-0646
📋 GST Invoice Available

Arduino Modulino Buzzer Module ABX00108

₹689.00 (Inclusive of all taxes)
Out of Stock

The Arduino Modulino Buzzer Module ABX00108 is an I2C-controlled sound module featuring an STM32C011F4 microcontroller, designed for seamless integration into 3.3V Qwiic-compatible projects. It provides customizable tones, alerts, and audio feedback, making it ideal for alarms, sensor outputs, and educational applications.

Features

  • I2C (Qwiic) interface for easy, 3.3V integration.
  • Features an STM32C011F4 MCU for flexible audio generation.
  • Produces clear tones, beeps, and alerts via PKLCS1212E4001 buzzer.
  • Supports custom firmware and waveform control via optional SWD header.
  • Compact design suited for IoT, interactive, and educational projects.

Out of stock

Description

The Official Arduino Modulino Buzzer Module ABX00108 is a highly integrated, I2C-controlled sound solution built around the capable STM32C011F4 microcontroller. This module leverages a PKLCS1212E4001 piezo buzzer to deliver clear audible signals, operating efficiently at 3.3V through its convenient Qwiic interface. It is engineered for simplicity and versatility, making it a valuable addition to a wide array of embedded systems.

Developers and makers can utilize the Modulino Buzzer for essential feedback mechanisms such as alarms, status indicators, and interactive project alerts. Its onboard STM32C011F4 MCU is reprogrammable via an optional SWD header, enabling advanced users to implement custom tone generation, specific waveform patterns, and unique audio logic. This flexibility ensures the module can be precisely tailored to meet the demands of sophisticated IoT, educational, and general interactive prototyping applications.

Key Features

  • I2C (Qwiic) communication protocol for simplified integration with 3.3V systems.
  • Incorporates a high-quality PKLCS1212E4001 piezo buzzer for reliable sound output.
  • Powered by a reprogrammable STM32C011F4 microcontroller, offering advanced control over audio.
  • Includes an optional SWD header, enabling custom firmware development and waveform programming.
  • Designed for 3.3V operation, ensuring broad compatibility with most modern development boards.
  • Features pull-up resistor pads for I2C bus customization and flexibility.
  • Allows firmware-editable I2C address (default 0x3C) for multi-device bus configurations.
  • Ideal for maker projects, security alarms, educational tools, and various interactive applications.

Applications

  • Audible alerts and alarm systems in embedded projects.
  • Status indicators and feedback for IoT devices.
  • Educational tools for teaching microcontrollers and sound generation.
  • Interactive art installations and prototyping.
  • Robotics projects requiring audio cues.
  • Low-power sound generation in portable devices.

Technical Specifications

Item TypeBuzzer Module
Model No. / NameABX00108
MicrocontrollerSTM32C011F4
Buzzer TypePKLCS1212E4001 Piezo Buzzer
I2C Address0x3C (Default)
Connector TypeQwiic
Operating Voltage3.3V
Length41 mm
Width25.36 mm

Frequently Asked Questions

What microcontroller powers the Arduino Modulino Buzzer Module?

The Arduino Modulino Buzzer Module is driven by an STM32C011F4 microcontroller. This MCU provides robust control over tone generation and allows for custom firmware development via an optional SWD header, enabling diverse audio output patterns.

How does the Modulino Buzzer connect and what voltage does it operate at?

It connects via an I2C (Qwiic) interface, making integration simple and straightforward. The module operates at 3.3V, consistent with the Qwiic standard, ensuring compatibility with most modern microcontrollers and development boards without additional voltage conversion.

Can the I2C address of the Modulino Buzzer be changed?

Yes, the default I2C address of 0x3C can be modified through custom firmware. This flexibility is crucial for projects requiring multiple I2C devices on the same bus, preventing address conflicts and allowing for complex system configurations.

What type of buzzer is used in the Modulino Module?

The module utilizes a PKLCS1212E4001 piezo buzzer. This type of buzzer is known for its clear sound output, compact size, and low power consumption, making it well-suited for various alert and feedback applications in embedded systems.

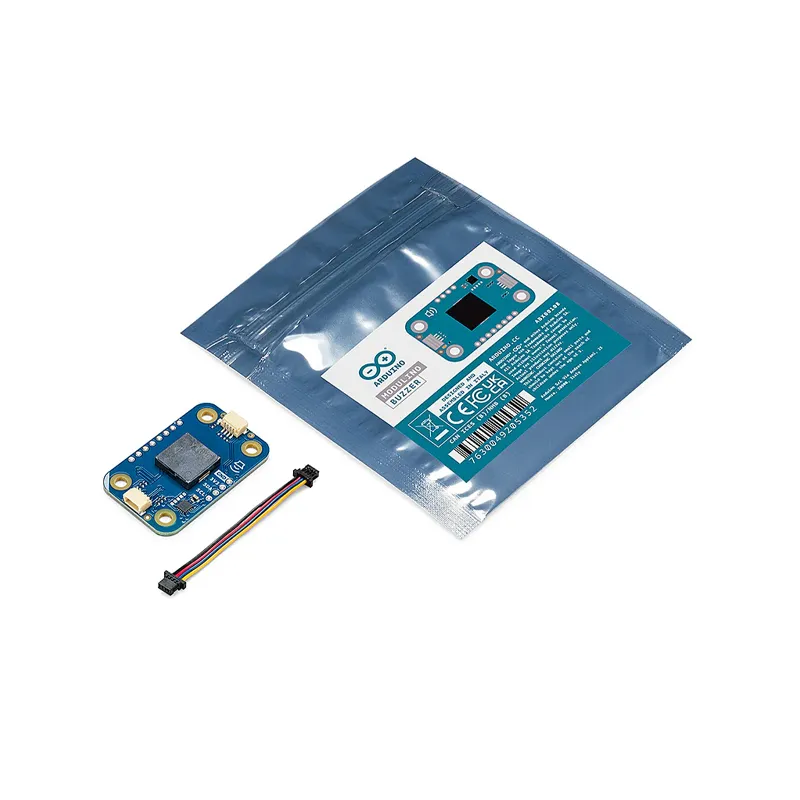

Package Includes

  • 1 x Official Arduino Modulino Buzzer
  • 1 x Qwiic cable (5 cm)

Additional Information

Weight 0.0042 kg
Dimensions 4.1 × 2.536 cm
