SIYI N7 Autopilot Flight Controller with 2-14S Power Module & GPS

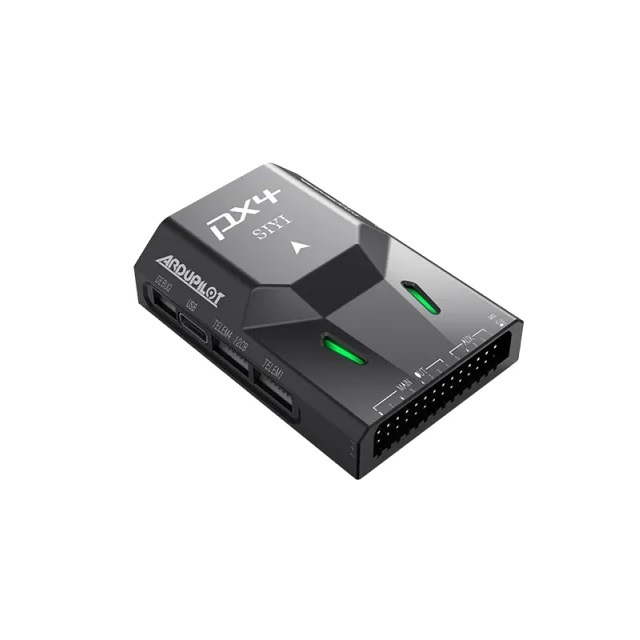

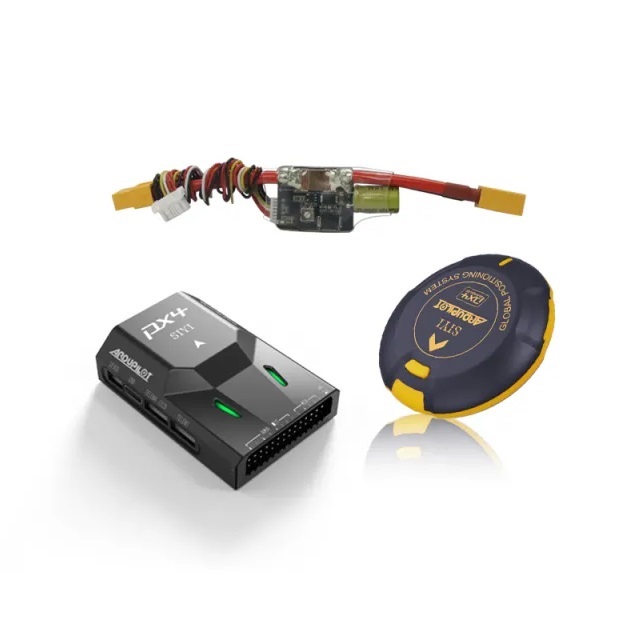

The SIYI N7 Autopilot Flight Controller is a high-performance flight control system built around a dual-processor architecture, featuring an STM32H743 main processor and STM32F103 co-processor. It is fully compatible with the ArduPilot and PX4 ecosystems, supporting a wide range of vehicle types from multirotors to VTOL and UGVs, and includes an integrated 2-14S power module and GPS for comprehensive navigation and power management.
Features
- Dual-Processor Architecture: STM32H743IIK6 (480 MHz Cortex-M7) main processor with STM32F103 (72 MHz Cortex-M3) co-processor for robust task handling.
- Broad Firmware Compatibility: Fully supports ArduPilot and PX4 firmware for planes, multirotors, helicopters, VTOL, UGV, and USV platforms.
- Integrated High-Precision Sensors: Features BMI088/ICM20689 IMU, IST8310 compass, and MS5611 barometer for accurate flight stabilization and navigation.
- Wide Voltage Input Range: Includes a power module supporting 2-14S LiPo battery configurations (5V ±0.25V system input).
- Complete Navigation Package: Comes with a high-precision GPS module for accurate positioning, enabling autonomous flight modes and mission planning.
Out of stock
The SIYI N7 Autopilot Flight Controller is engineered for demanding UAV applications, leveraging a powerful STM32H743 main processor paired with a dedicated STM32F103 co-processor. This design ensures high-speed data processing for complex flight algorithms and reliable redundancy for critical systems. The controller integrates a suite of high-fidelity sensors, including a selectable BMI088 or ICM20689 accelerometer/gyro, an IST8310 magnetometer, and an MS5611 barometer, providing a stable and accurate inertial measurement unit (IMU) foundation.
Built for versatility, the N7’s hardware platform is designed to withstand the environmental stresses of commercial and advanced recreational use. Its included 2-14S power module offers exceptional flexibility for power system integration, accommodating everything from small electric aircraft to large, heavy-lift drones. The integrated GPS module completes the essential sensor suite required for fully autonomous navigation, position hold, and return-to-home functionalities within the ArduPilot and PX4 software frameworks.
Additional Information
| Weight | 0.314 kg |
|---|---|
| Dimensions | 21 × 14 × 5 cm |
