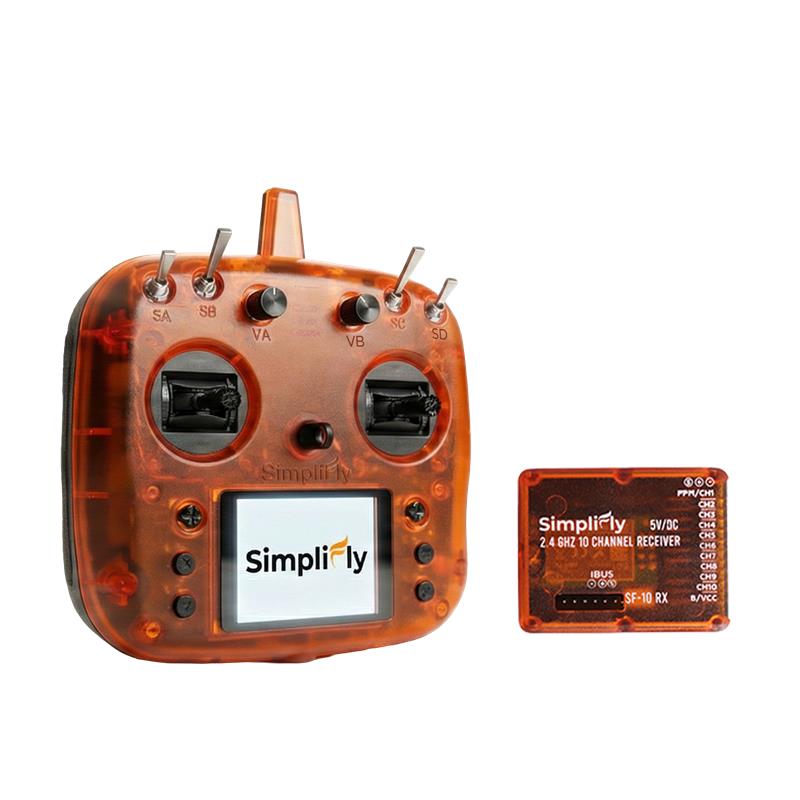

SimpliFly SF10 2.4GHz 10 Channel RC Transmitter and Receiver Combo Kit - OrangeRX-Black

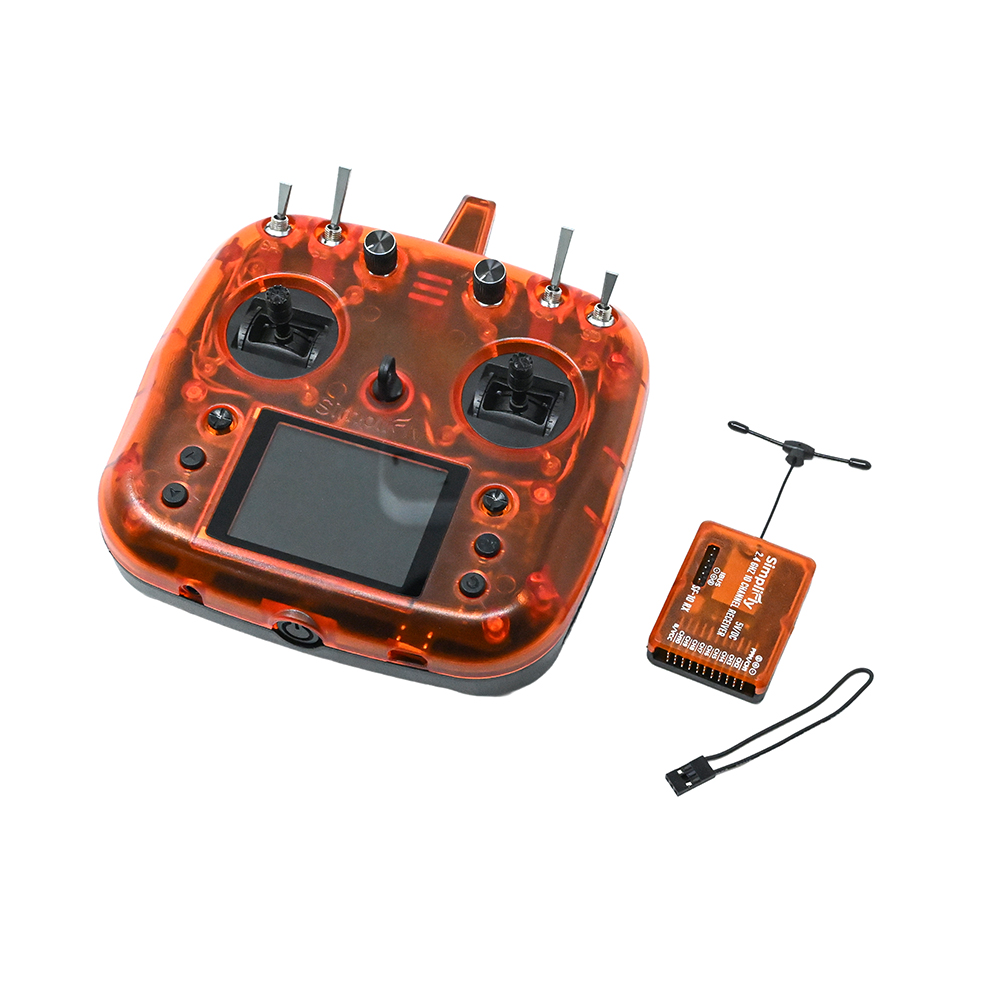

SimpliFly SF10 2.4GHz 10 Channel RC Transmitter and Receiver Combo Kit - OrangeRX-Black - Image 2

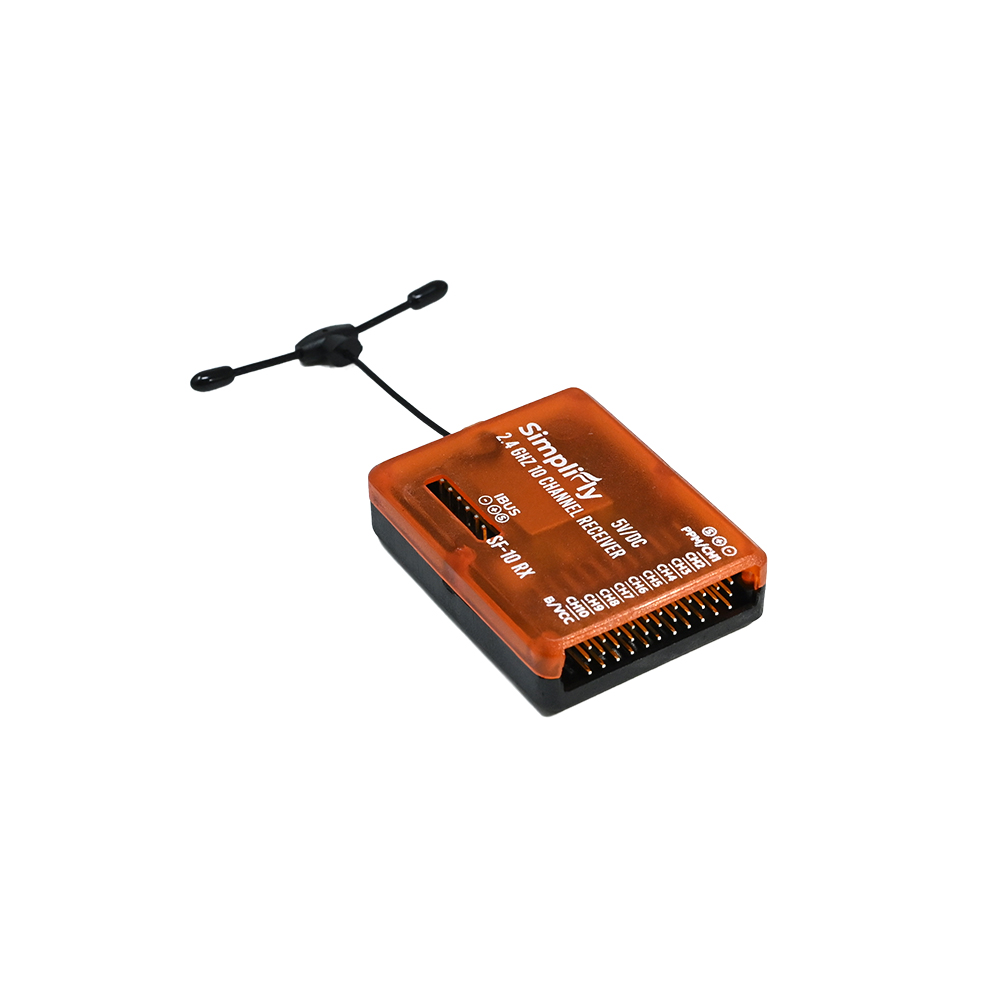

SimpliFly SF10 2.4GHz 10 Channel RC Transmitter and Receiver Combo Kit - OrangeRX-Black - Image 3
SimpliFly SF10 2.4GHz 10 Channel RC Transmitter and Receiver Combo Kit - OrangeRX-Black - Image 4

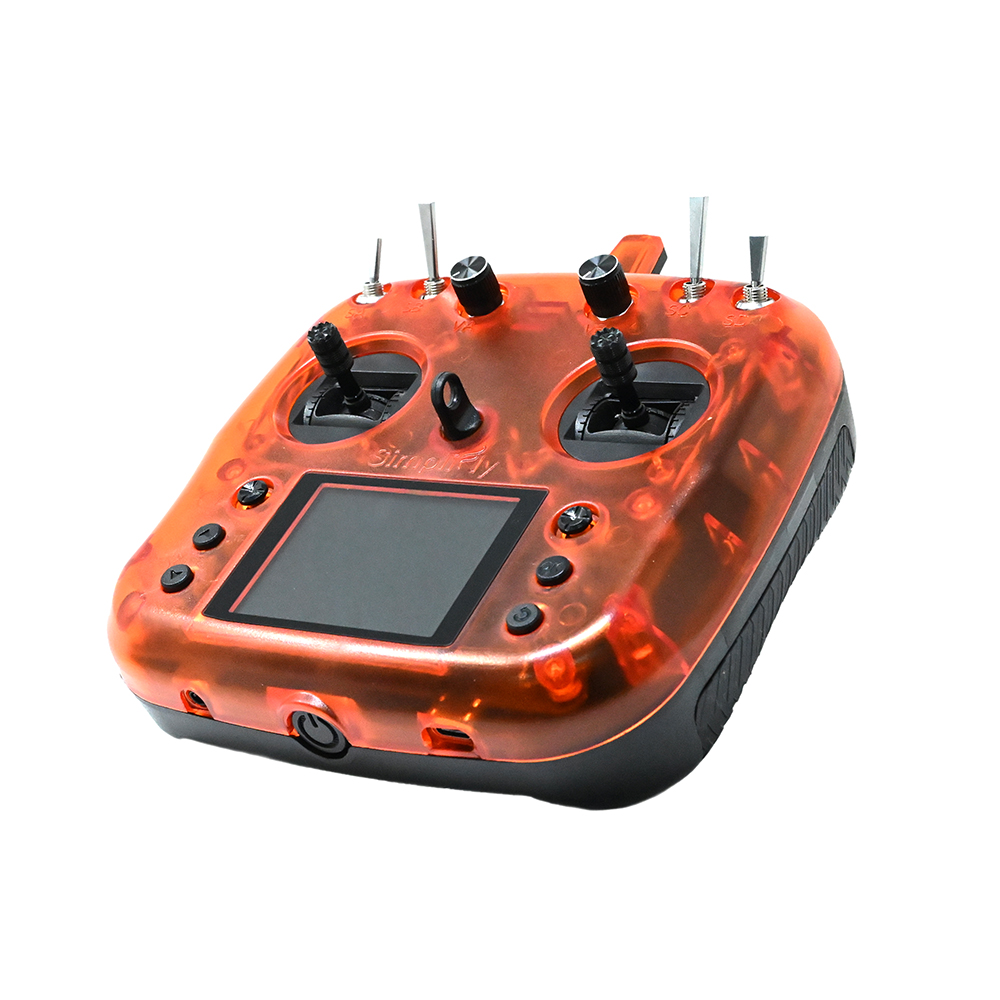

SimpliFly SF10 2.4GHz 10 Channel RC Transmitter and Receiver Combo Kit - OrangeRX-Black - Image 5

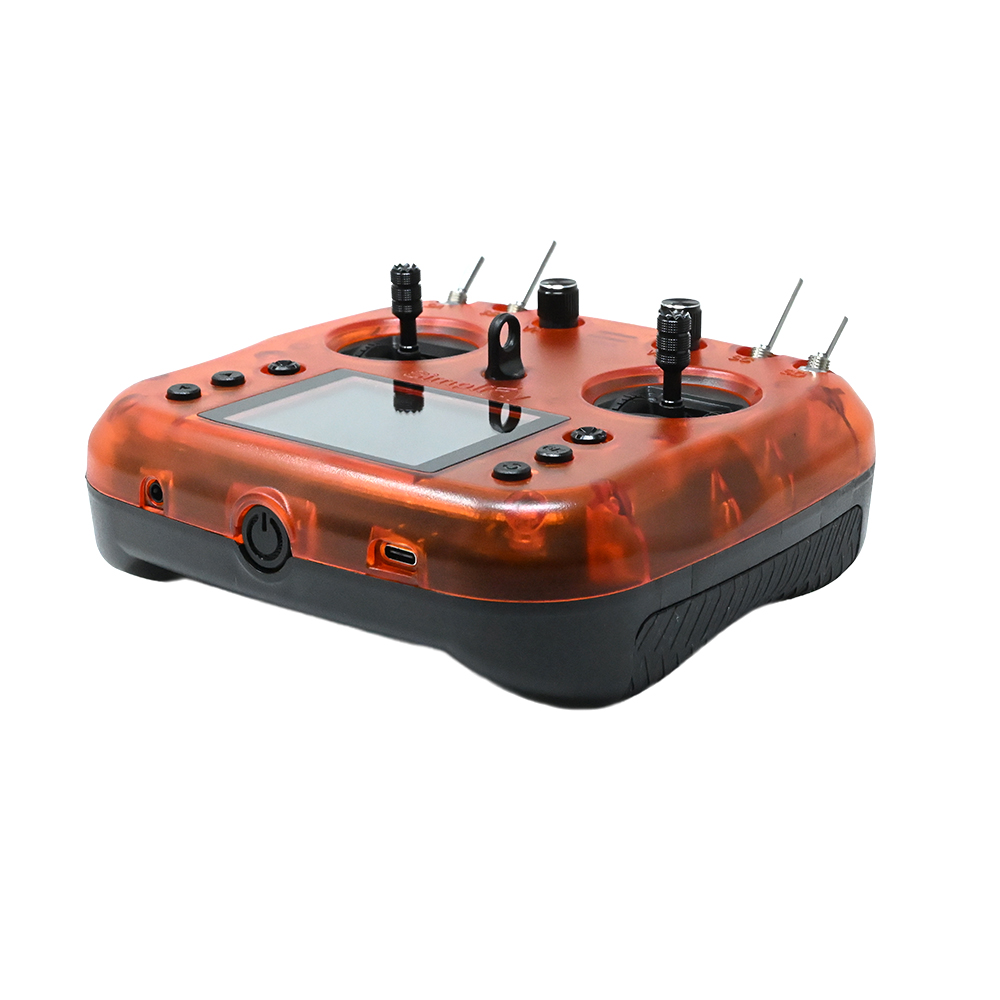

SimpliFly SF10 2.4GHz 10 Channel RC Transmitter and Receiver Combo Kit - OrangeRX-Black - Image 6

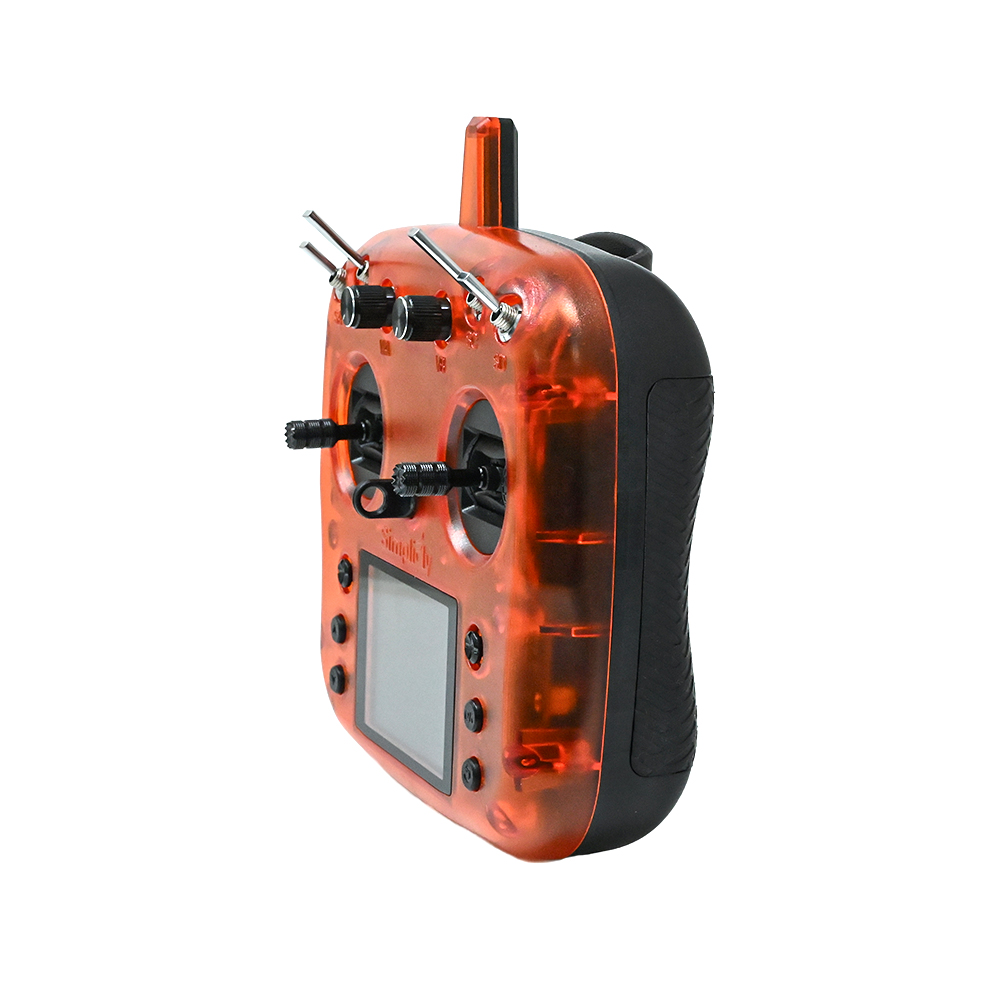

SimpliFly SF10 2.4GHz 10 Channel RC Transmitter and Receiver Combo Kit - OrangeRX-Black - Image 7

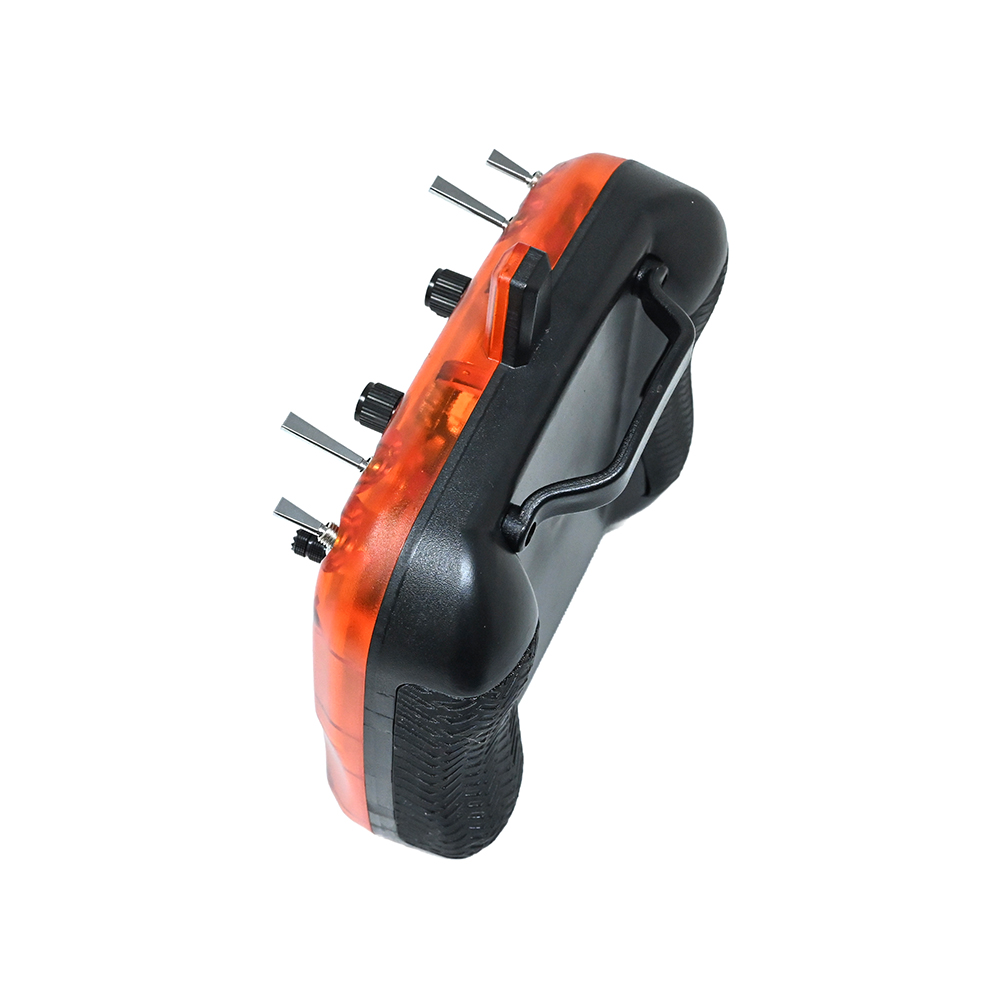

SimpliFly SF10 2.4GHz 10 Channel RC Transmitter and Receiver Combo Kit - OrangeRX-Black - Image 8

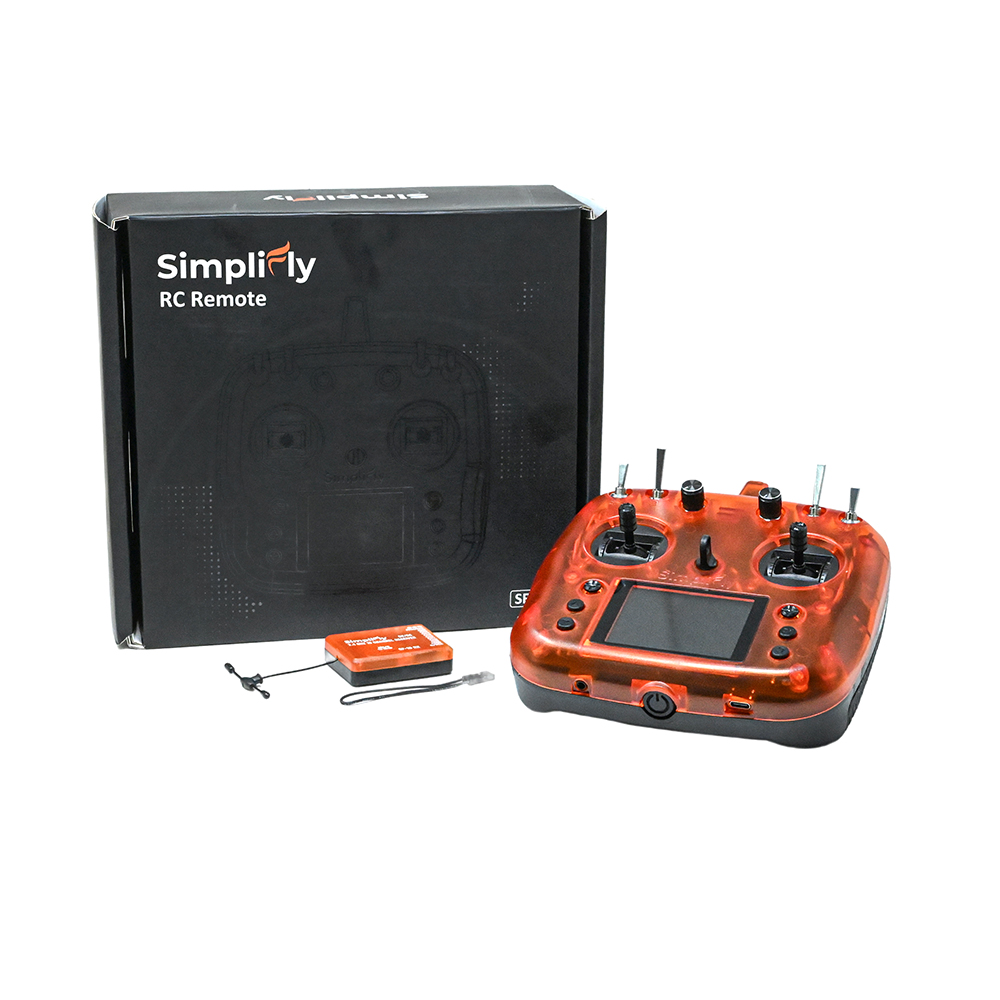

SimpliFly SF10 2.4GHz 10 Channel RC Transmitter and Receiver Combo Kit - OrangeRX-Black - Image 9
SKU: DRFC-3358
📋 GST Invoice Available

SimpliFly SF10 2.4GHz 10 Channel RC Transmitter and Receiver Combo Kit - OrangeRX-Black

₹6,559.00 (Inclusive of all taxes)
Out of Stock

The SimpliFly SF10 is a 10-channel 2.4GHz RC transmitter and receiver combo designed for UAVs, RC aircraft, and robotics projects, featuring a 2.4″ TFT display, 4096-step stick resolution, and USB-C charging for integrated 18650 Li-ion batteries.

Features

  • 10 independent control channels for managing throttle, flight modes, gimbals, and auxiliary functions.
  • 2.4 GHz spread spectrum technology with up to 500mW RF power for stable, long-range communication up to 1.5 km LOS.
  • High-precision 4-bearing joysticks with 4096-step resolution for accurate and responsive control.
  • Integrated 2.4″ TFT color display (240×320) for real-time telemetry and system configuration.
  • Powered by dual rechargeable 18650 Li-ion batteries (included) with convenient USB Type-C charging.

Out of stock

Description

The SimpliFly SF10 transmitter is engineered for reliable control in demanding UAV and FPV applications. Its robust 2.4 GHz GFSK modulation provides strong anti-interference performance and a stable link, essential for long-range flights and complex multi-rotor setups. The ergonomic design ensures comfortable handling during extended operation sessions.

The included 10-channel receiver is broadly compatible with popular flight controller firmware, facilitating quick integration into DIY drone builds, experimental robotics, and fixed-wing aircraft. The system supports PPM output for simulator training, making it a versatile tool for both hobbyist pilots and professional developers seeking a dependable control link.

Key Features

  • High-Power RF Output: Configurable RF power up to 500mW for extended range and robust signal penetration in challenging environments.
  • Advanced Gimbals: Hall-effect or high-quality potentiometer-based 4-bearing gimbals deliver smooth, precise, and repeatable stick movements.
  • Modern Power System: Utilizes two standard 18650 Li-ion cells (included) with built-in USB-C charging, eliminating the need for disposable batteries.
  • Comprehensive Display: The 2.4" TFT screen provides clear visibility of all model parameters, trim settings, and signal strength indicators.
  • Wide Compatibility: Receiver outputs standard PPM/SBUS signals, ensuring plug-and-play operation with Betaflight, ArduPilot, and other common flight controllers.

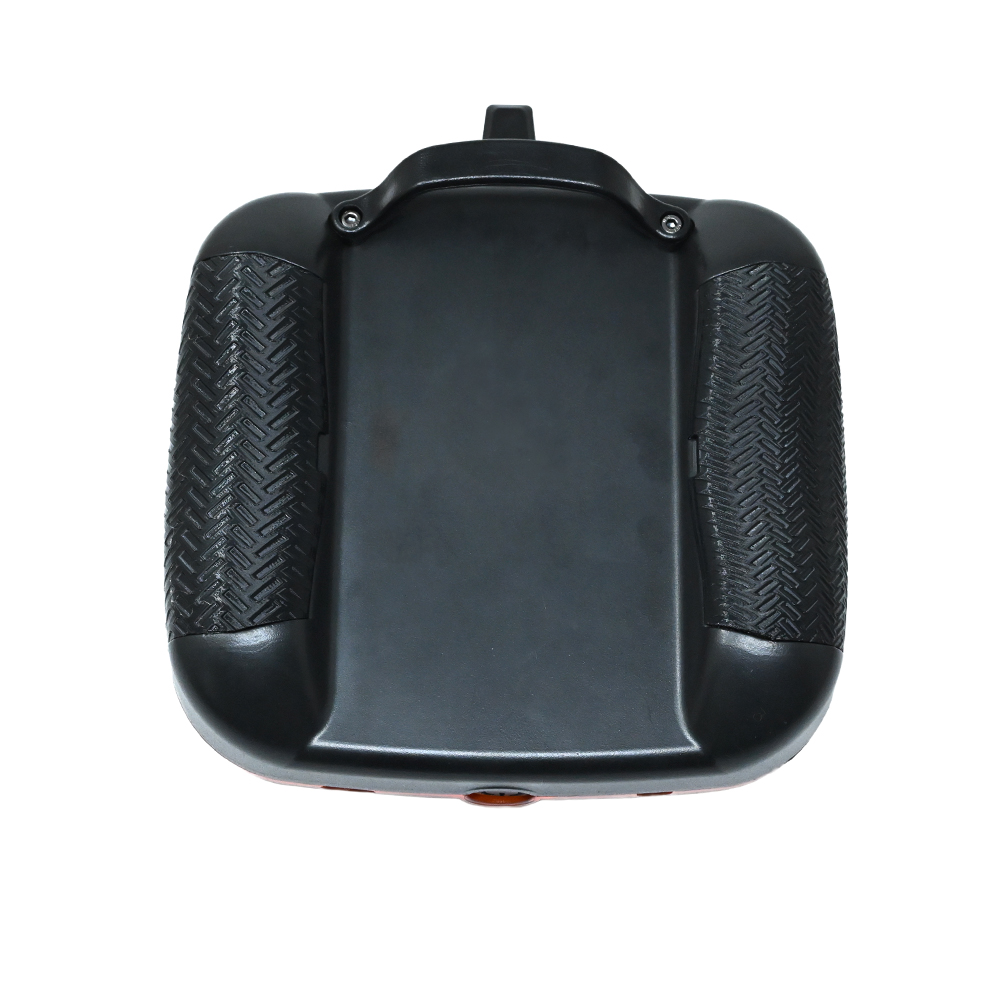

  • Durable Construction: The transmitter case is designed for durability and features a textured grip for secure handling.

Applications

  • FPV racing and freestyle drone builds requiring up to 10 channels for VTX control, LED lighting, and gimbal functions.
  • Long-range UAV and mapping platforms where stable 2.4GHz control and telemetry are critical.
  • DIY robotics projects and custom RC aircraft needing a reliable multi-channel command link.
  • Fixed-wing and VTOL (Vertical Take-Off and Landing) aircraft with complex control surface mixing.
  • Educational and development platforms for engineers and hobbyists learning UAV systems integration.

Technical Specifications

Channels10
Frequency Band2.4000 – 2.4835 GHz
ModulationGFSK (Gaussian Frequency Shift Keying)
Max RF Power500 mW
Stick Resolution4096 steps
Display2.4" TFT (240 x 320 pixels)
Gimbals4-Bearing Joysticks
Charging PortUSB Type-C
Battery2 x 18650 Li-ion (Included: Molicel INR-18650-P28A 2800mAh)
Transmitter Weight (without battery)392 g
Transmitter Dimensions (LxW)52.7 mm x 41 mm (Depth not specified)
ColorOrangeRX-Black

Frequently Asked Questions

What is the maximum range of the SimpliFly SF10 transmitter?

The SF10 offers a maximum line-of-sight (LOS) range of up to 1.5 kilometers under ideal conditions. This range is achieved with its configurable RF output power of up to 500mW, using the 2.4 GHz spread spectrum technology for stable and interference-resistant communication.

What type of batteries does the SF10 transmitter use, and are they included?

The transmitter is powered by two standard 18650 Li-ion cells. The package includes two high-quality Molicel INR-18650-P28A 2800mAh batteries. The transmitter features built-in USB Type-C charging, so you can recharge the installed batteries without removing them.

Is the SF10 receiver compatible with Betaflight and other flight controllers?

Yes, the included 10-channel receiver outputs standard PPM or SBUS signals (configurable), which are directly compatible with most flight controllers running Betaflight, ArduPilot, iNAV, and other common firmware. This allows for quick integration into DIY drone and UAV builds.

Does the SF10 support simulator use?

Yes, the SF10 transmitter supports PPM simulator output. You can connect it to your computer via a compatible USB adapter or audio cable to use with popular RC flight simulators like Velocidrone, Liftoff, or RealFlight for practice and training.

Package Includes

  • 1 x SimpliFly SF10 2.4 GHz 10 Channel RC Transmitter (OrangeRX-Black)
  • 1 x SimpliFly SF10 10-Channel Receiver with Bind Plug
  • 2 x Molicel A Grade INR-18650-P28A 3.6V 2800mAh Li-ion Battery
  • 1 x User Manual

Additional Information

Weight 0.392 kg
Dimensions 5.27 × 4.1 cm
