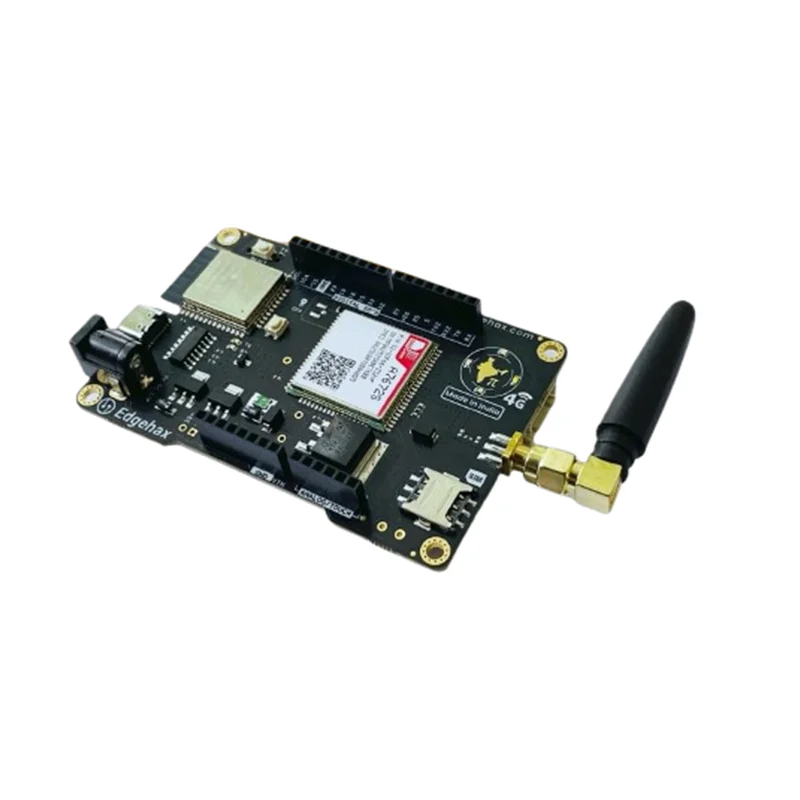

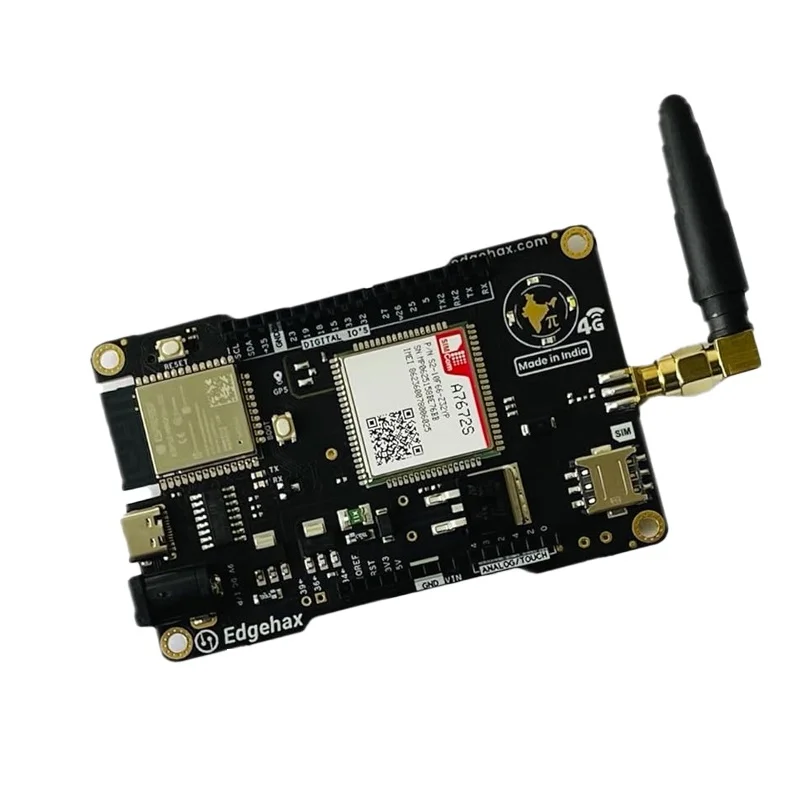

SIMCom A7672S LTE Cat-1 4G Module with ESP32 WROOM

The module is programmed via the onboard USB Type-C port. It supports the Arduino IDE using the ESP32 board package, Espressif's official ESP-IDF framework for advanced features, and MicroPython for script-based development. You will need to install the corresponding drivers and SDKs, then select the correct COM port and board target (e.g., ESP32 Dev Module) to begin uploading your firmware for cellular and wireless applications.

The module requires a 9V DC power supply, which can typically be provided via the USB Type-C port or an external barrel jack adapter if the board supports it. For cellular connectivity, you must attach an external 4G/LTE antenna to the board's SMA connector (if present) or via an IPEX-to-SMA pigtail. Ensure the antenna is tuned to the LTE bands used in your region (e.g., B1, B3, B5, B8) for optimal signal strength and data throughput in your IoT deployment.

You can send data via the integrated SIMCom A7672S modem using AT commands over a serial UART interface to the ESP32. Establish a PDP context to connect to the cellular network, then use protocols like HTTP or MQTT. For HTTP, send POST/GET requests to your server endpoint. For MQTT, use the modem's TCP stack to connect to an MQTT broker. The ESP32 can handle the application logic, format the JSON payload, and command the modem to transmit sensor data or telemetry efficiently.
