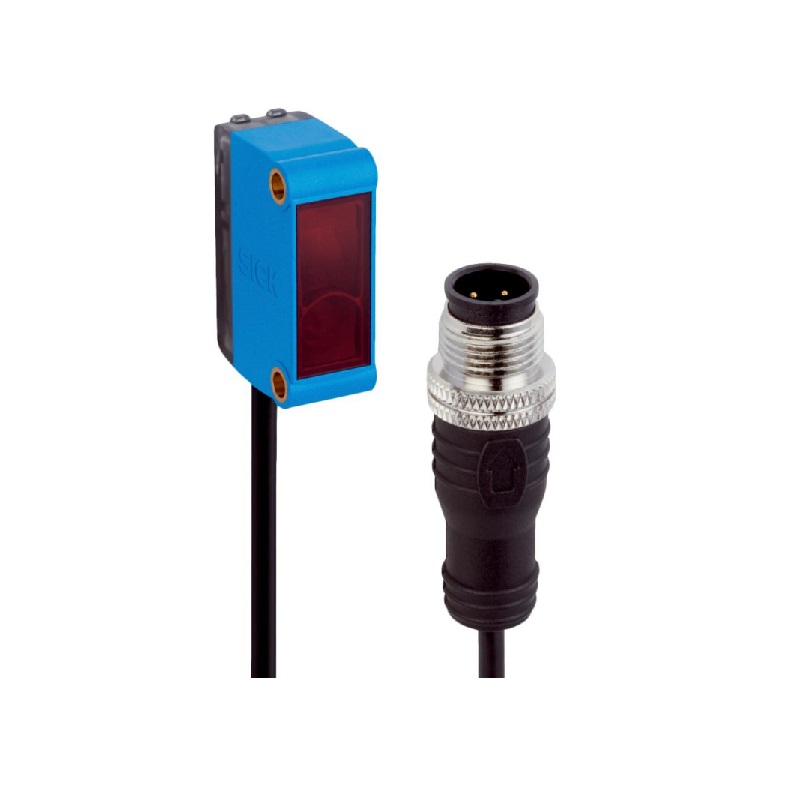

SICK GL6-P7112 Photoelectric Sensor 6 m PNP Retroreflective 10 to 30 VDC 4 Pin M12 Connector Cable IP67

This SICK GL6-P7112 sensor features a PNP (sourcing) output. In a PNP configuration, the output switches the positive voltage to the load when activated. This is commonly used in systems where the PLC or controller input is designed to receive a positive signal. It is the opposite of an NPN (sinking) output, which switches the ground connection.

While the IP67 rating provides excellent protection against dust and temporary water immersion (up to 1 meter for 30 minutes), it is not designed for prolonged exposure to direct sunlight, rain, or extreme weather without additional housing. For permanent outdoor use, a protective enclosure or a sensor with a higher environmental rating (e.g., IP69K) is recommended.

This sensor requires a dedicated retroreflector, typically a prismatic reflector designed for the specific wavelength of the sensor's LED (usually red or infrared). The reflector must be sized appropriately for the 6-meter range and aligned correctly with the sensor's beam. Using the manufacturer-recommended reflector model ensures optimal performance and sensing reliability.

The standard pinout for a 4-pin M12 PNP sensor is typically: Pin 1 - Supply Voltage (+V), Pin 2 - Output Signal, Pin 3 - 0V / Ground (-V), Pin 4 - Not connected (NC) or diagnostic function. Always consult the official SICK GL6 series datasheet for the exact wiring diagram. Connect the brown wire to +V (10-30VDC), blue to 0V, and black to your PLC input.
