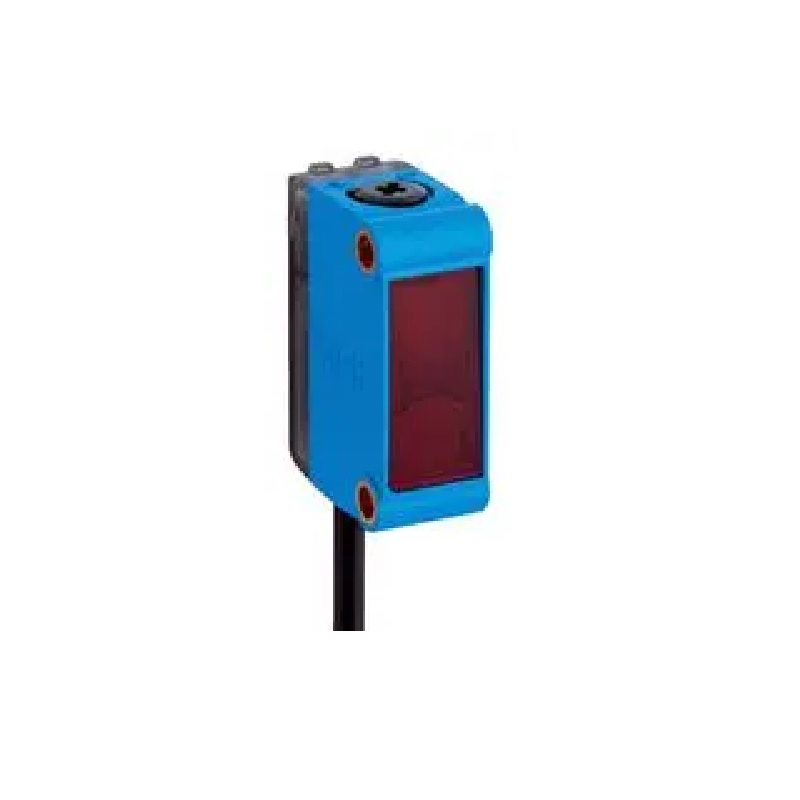

SICK GL6-P1211 Miniature Retro-Reflective Photoelectric Sensor, PNP Output, 3-Wire, DC 10-30V, IP67, Sensing Range: 0.07-5 m

The GL6-P1211 is a 3-wire DC sensor with a PNP output. The standard wiring is: Brown wire to DC+ (10-30V), Blue wire to DC- (0V), and Black wire as the PNP switching output. The output switches to supply voltage (sourcing) when an object is detected. Always refer to the official datasheet for the complete connection diagram.

The IP67 rating indicates the sensor is completely protected against dust ingress (first digit '6') and can withstand temporary immersion in water up to 1 meter for 30 minutes (second digit '7'). This makes it suitable for use in dusty workshops, washdown areas, and outdoor environments where it may be exposed to rain or splashing.

As a retro-reflective sensor, it requires a dedicated reflector. It detects objects that break the beam between the sensor and that reflector. Transparent or highly reflective objects may not reliably interrupt the beam. For detecting such materials, a through-beam sensor pair or a diffuse sensor with background suppression would be a more appropriate choice.

The primary difference is the specified sensing range. The GL6-P1211 is specified for a range of 0.07 to 5 meters, while the P1212 variant may have a different standardized range, such as up to 6 meters. Always verify the exact model number against your required detection distance and the manufacturer's datasheet to ensure compatibility.
