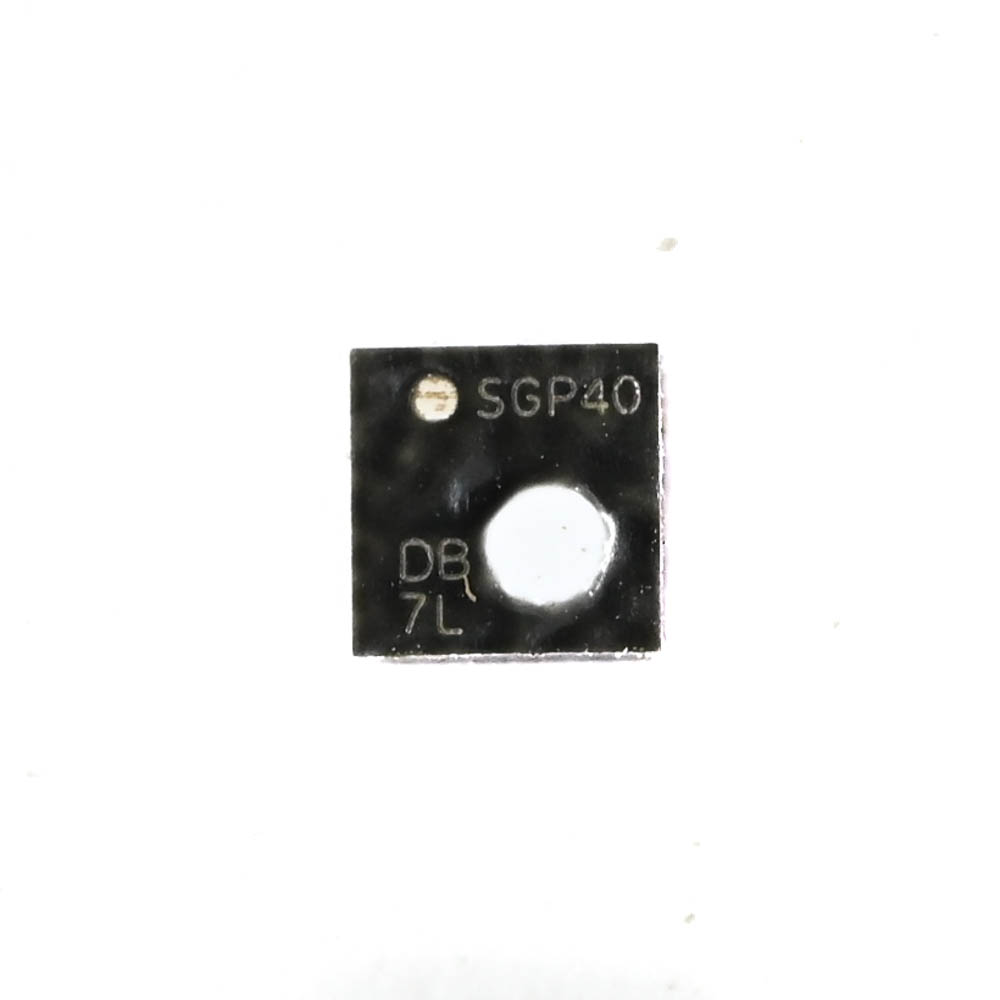

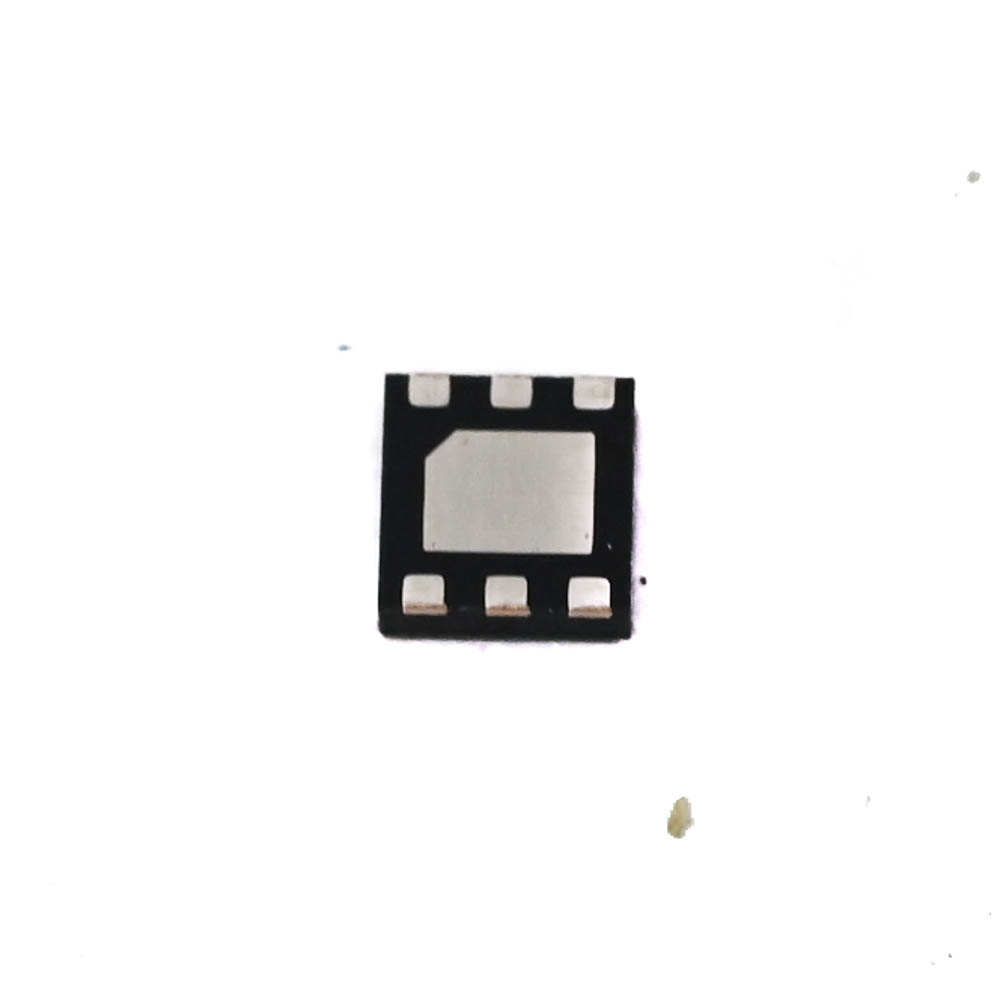

Sensirion SGP40-D-R4 Indoor Air Quality Sensor - Digital DFN 6-Pin
The Sensirion SGP40-D-R4 is a digital metal-oxide (MOX) gas sensor designed for indoor air quality (IAQ) monitoring, providing a VOC-based index via a standard I2C interface. It is compatible with 3.3V and 5V logic systems, including Arduino, Raspberry Pi, ESP32, and STM32 platforms.
Features
- Digital VOC sensor for indoor air quality (IAQ) monitoring
- Standard I2C interface for easy microcontroller integration
- Low-power operation from 1.7V to 3.6V supply voltage
- Compact DFN package with 6 pins for space-constrained designs
- On-chip signal processing and temperature compensation
Out of stock
The SGP40-D-R4 utilizes Sensirion’s advanced CMOSens® technology, integrating a metal-oxide (MOX) sensing element with a digital signal processor on a single chip. This design provides a robust, calibrated digital output representing a VOC (Volatile Organic Compounds) index, enabling the detection of a wide range of indoor air contaminants without requiring specific gas calibration.
Operating from a 1.7V to 3.6V supply, the sensor is optimized for low-power battery-operated devices and portable electronics. Its compact DFN package and I2C communication protocol make it ideal for integration into smart home systems, HVAC controls, air purifiers, and IoT environmental monitoring nodes.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 7 × 3 cm |
