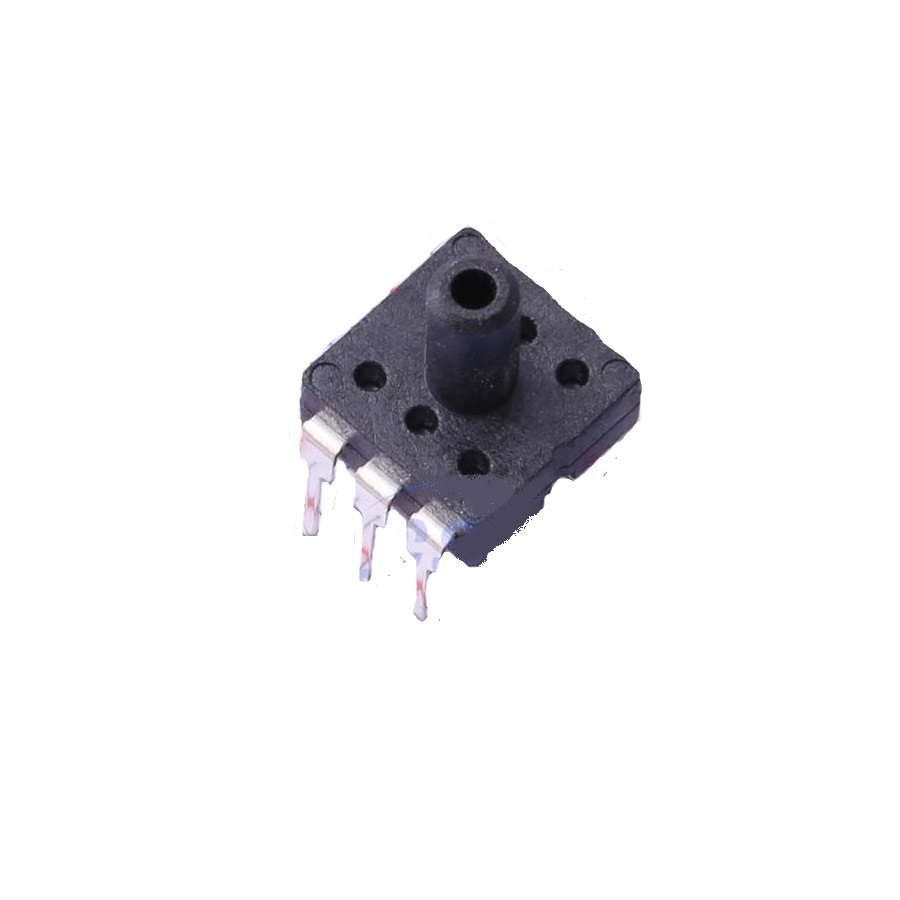

Sencoch GZP6857D005KPP I²C Digital Pressure Sensor, 3.3V, 100nA, DIP-6, Range: 0–5 kPa
The Sencoch GZP6857D005KPP is a low-power, I²C digital pressure sensor module designed for precise gauge pressure measurement from 0 to 5 kPa. Operating at 3.3V with an ultra-low 100nA standby current, it is ideal for battery-powered medical devices, portable instrumentation, and smart home appliances requiring integration with microcontrollers like Arduino, ESP32, or Raspberry Pi.
Features
- Ultra-low power consumption with 100nA standby current for extended battery life
- Digital I²C interface for direct microcontroller integration and simplified wiring
- High-accuracy MEMS piezoresistive sensing element with ±2% full-scale accuracy
- Wide operating temperature range from -30°C to +85°C for robust performance
- Compact DIP-6 package suitable for space-constrained PCB designs
Out of stock
The GZP6857D005KPP utilizes a MEMS piezoresistive sensing core to translate applied pressure into a precise electrical signal. This signal is conditioned and digitized by an integrated ASIC, providing a stable, calibrated digital output via the I²C bus, eliminating the need for external analog-to-digital conversion and simplifying system design.
Engineered for reliability, the sensor is housed in a robust DIP-6 package capable of withstanding demanding environmental conditions across its full -30°C to +85°C operating range. Its low-power architecture makes it particularly suitable for always-on, portable, or wireless sensing applications where energy efficiency is critical.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
