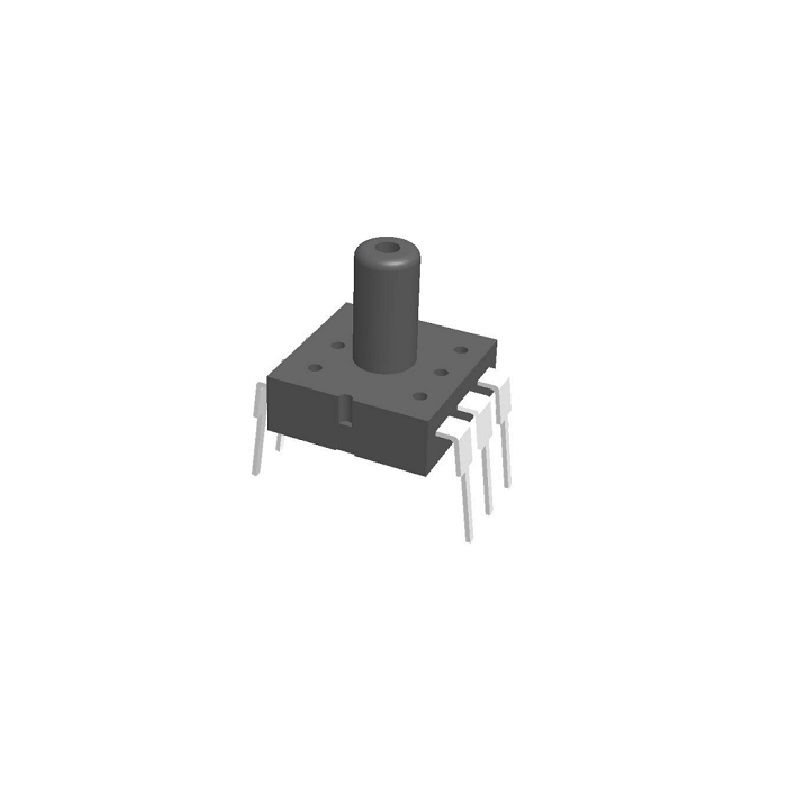

Sencoch GZP6857A040KPP33Z Pressure Sensor, 0-40 kPa Range, 3.3V Supply, DIP-6 Package
The Sencoch GZP6857A040KPP33Z is a MEMS piezoresistive gauge pressure sensor providing a 0-40 kPa analog voltage output. Operating from a 3.3V supply, it is designed for integration into medical devices, home appliances, and other systems requiring precise low-pressure measurement.
Features
- MEMS piezoresistive sensing element for gauge pressure measurement.
- 0 to 40 kPa measurement range with ±2% accuracy.
- 3.3V DC supply voltage with low 1.8mA standby current.
- Analog voltage output for direct ADC interfacing.
- Wide operating temperature range from -30°C to +85°C.
Out of stock
The GZP6857A040KPP33Z utilizes a MEMS piezoresistive silicon sensing element to detect gauge pressure changes, converting them into a proportional analog voltage signal. This design ensures stable and repeatable measurements suitable for low-pressure monitoring applications.
Housed in a compact DIP-6 package, the sensor is engineered for reliable performance across a broad industrial temperature range. Its low power consumption and 3.3V logic compatibility make it ideal for integration into portable medical devices, HVAC controls, and smart appliance systems.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 9 × 2 × 6 cm |
