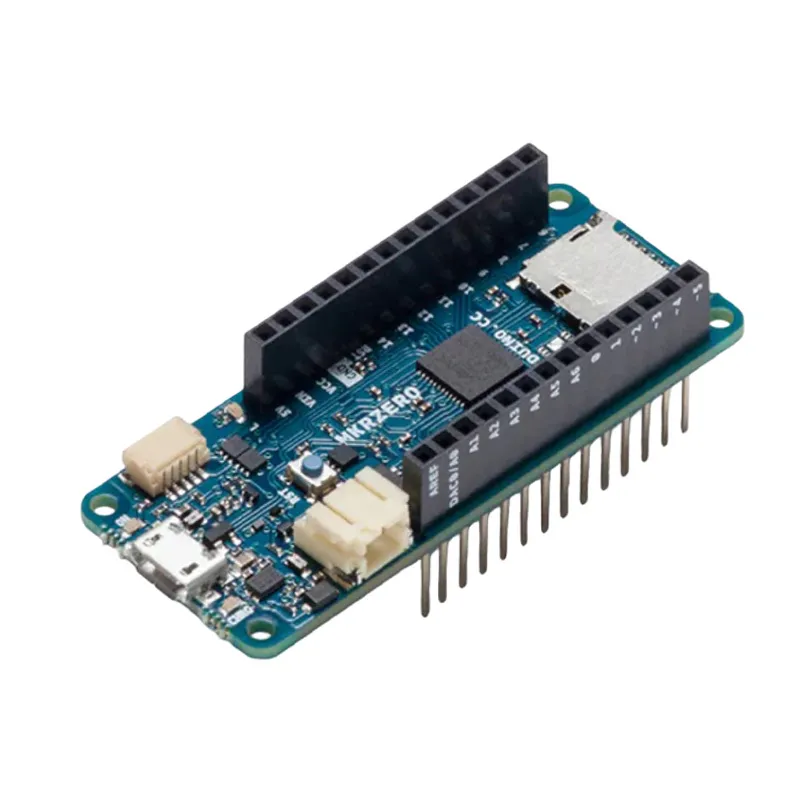

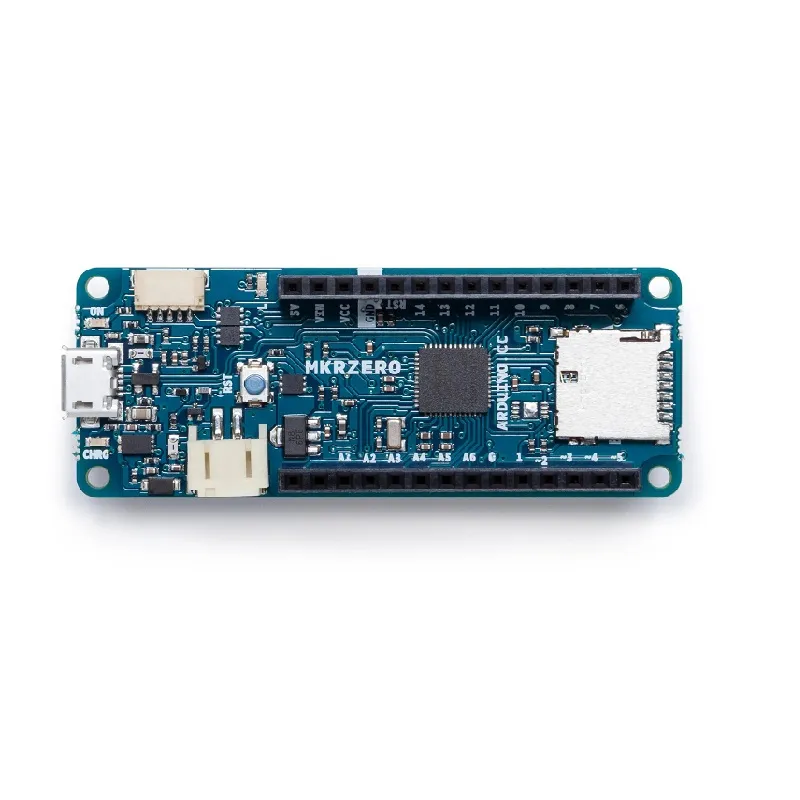

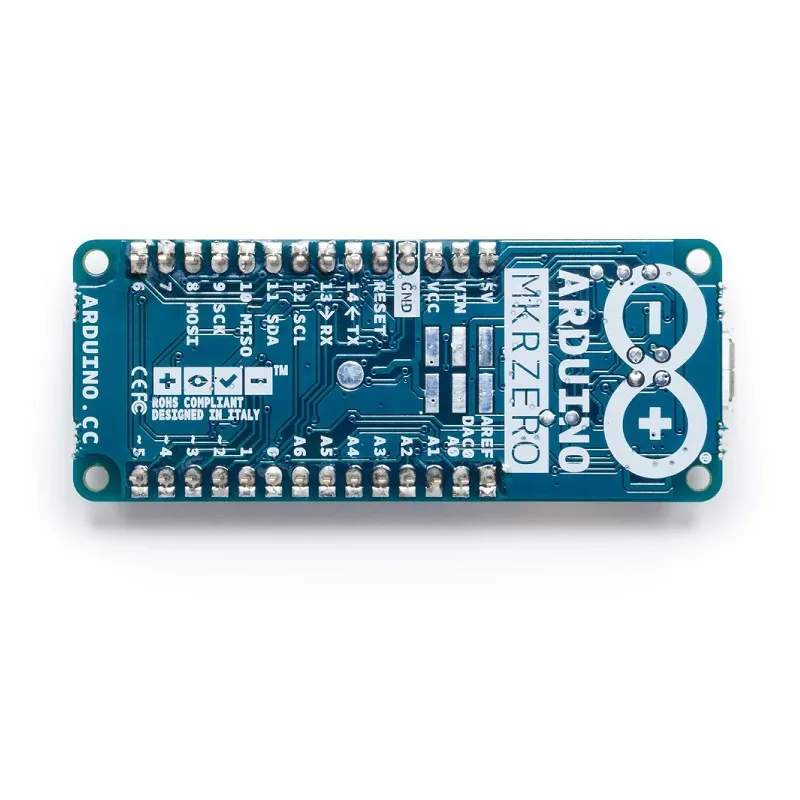

Arduino MKR Zero ABX00012 with I2S Audio & SD Card
The Arduino MKR Zero ABX00012 is a compact development board powered by the SAMD21 ARM Cortex-M0+ processor, designed for 32-bit applications. It features an integrated I2S bus and a MicroSD card slot, making it ideal for digital audio projects and data logging.
Features
- Powered by the Atmel SAMD21 ARM Cortex-M0+ 32-bit microcontroller for robust performance.
- Integrated I2S bus and built-in DAC enable advanced digital audio processing and playback without extra hardware.
- Onboard MicroSD card slot with dedicated SPI interface for expandable data storage and music files.
- Operates at a low 3.3V, making it suitable for low-power embedded applications and battery-powered projects.
- Compact MKR form factor with a rich set of I/O, including 22 digital and 12 analog pins.
Out of stock
The Arduino MKR Zero serves as an excellent platform for diving into 32-bit application development. Its core is the Atmel SAMD21 MCU, featuring a 32-bit ARM Cortex-M0+ processor, providing a significant upgrade in processing capabilities compared to traditional 8-bit Arduino boards. A standout feature is the integrated MicroSD connector with dedicated SPI interfaces (SPI1), which allows for easy management and playback of audio files directly from the board.
This board comes fully equipped to support the microcontroller, requiring only a micro-USB cable for power and programming or a LiPo battery via its JST connector. The MKR Zero also allows for battery voltage monitoring. It is crucial to note that, unlike many Official Arduino boards, the MKR Zero operates at 3.3V. Applying voltages higher than 3.3V to any I/O pin can cause irreparable damage to the board.
Its compact form factor and low-power operation make the MKR Zero versatile for various embedded projects, from audio-centric applications to data loggers and educational tools for exploring advanced ARM microcontroller features.
Additional Information
| Weight | 0.021 kg |
|---|---|
| Dimensions | 6.15 × 2.5 × 0.4 cm |
