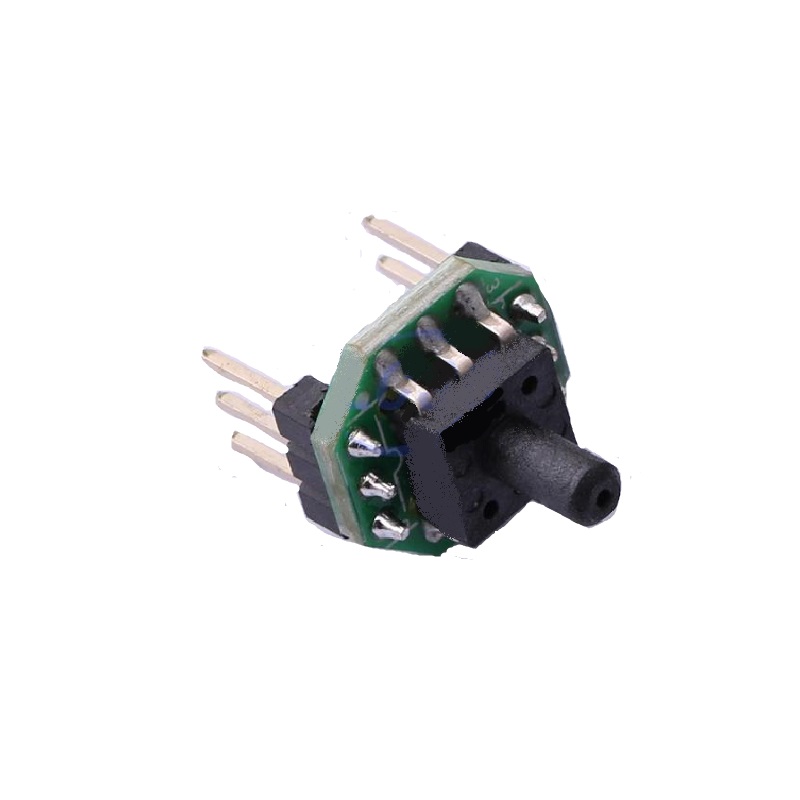

Sencoch GZP6847A005KPP50K Pressure Sensor, 0-5 kPa Gauge, Analog Voltage Output, DIP-6 Package
The Sencoch GZP6847A005KPP50K is a low-pressure MEMS piezoresistive sensor delivering a 0-5 kPa gauge pressure range with an analog voltage output. Operating from a 5V DC supply, this compact DIP-6 packaged sensor is engineered for integration into medical, HVAC, and appliance control systems requiring precise differential pressure monitoring.
Features
- MEMS piezoresistive sensing element for stable, low-pressure measurement.
- 0 to 5 kPa gauge pressure range with ±2% typical accuracy.
- Analog voltage output for direct ADC interfacing with microcontrollers.
- Low 1.8mA standby current for power-sensitive embedded designs.
- Compact DIP-6 package for easy PCB mounting and integration.
Out of stock
The GZP6847A005KPP50K utilizes a micromachined silicon piezoresistive bridge to translate applied differential pressure into a proportional analog voltage signal. This MEMS-based design ensures high sensitivity and repeatability across its specified 0-5 kPa gauge range, making it suitable for detecting subtle pressure changes in air and non-corrosive gases.
Engineered for reliability, the sensor operates across an industrial temperature range of -30°C to +85°C. Its 5V DC supply requirement and analog output interface simplify connection to common ADC inputs on development platforms like Arduino, Raspberry Pi, and industrial PLC analog modules, providing a calibrated pressure reading with minimal external signal conditioning.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
