Sencoch GZP6847A001MPP50K Pressure Sensor, 0-1000 kPa, Analog Output, 5V DC, DIP-6 Package

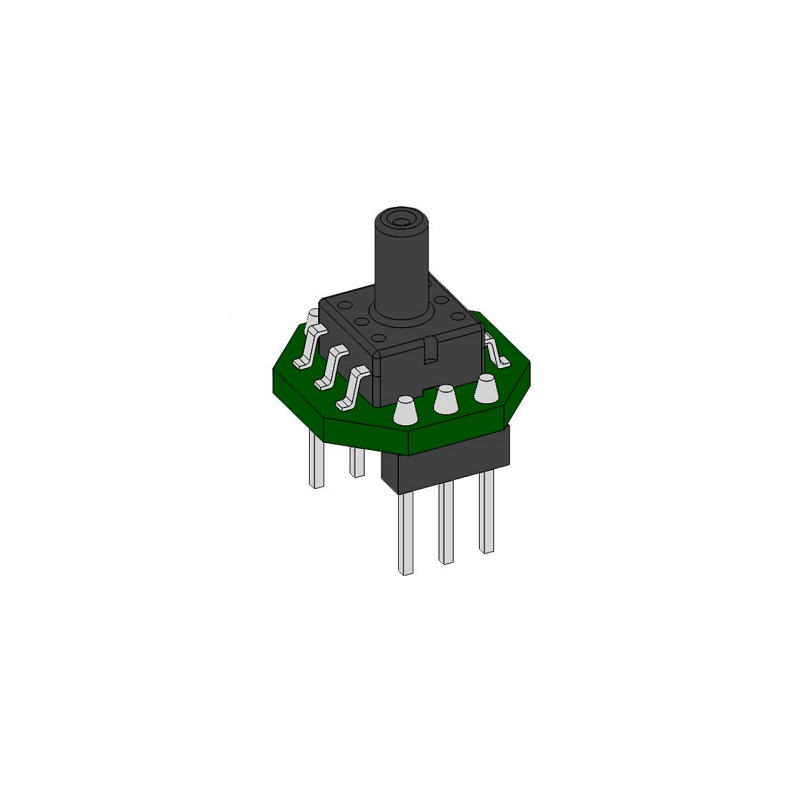

Sencoch GZP6847A001MPP50K Pressure Sensor, 0-1000 kPa, Analog Output, 5V DC, DIP-6 Package - Image 2
SKU: SENS-2115
📋 GST Invoice Available

Sencoch GZP6847A001MPP50K Pressure Sensor, 0-1000 kPa, Analog Output, 5V DC, DIP-6 Package

₹709.00 (Inclusive of all taxes)
Out of Stock

The Sencoch GZP6847A001MPP50K is a MEMS piezoresistive pressure sensor providing a 0-1000 kPa gauge pressure measurement range with an analog voltage output. Operating from a 5V DC supply, it is designed for integration into medical devices, HVAC systems, and industrial control applications requiring reliable pressure monitoring.

Features

  • MEMS piezoresistive sensing element for 0 to 1000 kPa gauge pressure.
  • Analog voltage output for direct interface with ADCs and microcontrollers.
  • Low 1.8 mA standby current for power-sensitive designs.
  • Wide operating temperature range from -30°C to +85°C.
  • Compact DIP-6 package for easy PCB mounting and integration.

Out of stock

Description

The GZP6847A001MPP50K utilizes a precision MEMS piezoresistive silicon sensing element to translate applied pressure into a proportional analog voltage signal. This design ensures high sensitivity and stable output across its specified measurement range.

Housed in a robust DIP-6 package, the sensor is suitable for printed circuit board integration in various electronic systems. Its wide operating temperature range and low power consumption make it a reliable choice for applications from medical instrumentation to appliance control and industrial monitoring.

Key Features

  • High-sensitivity MEMS piezoresistive sensing technology.
  • Linear analog voltage output proportional to applied pressure.
  • Designed for operation with a stable 5V DC power supply.
  • Excellent long-term stability and repeatability.
  • RoHS compliant construction for environmental safety.
  • Compact and standardized DIP-6 footprint for simplified PCB layout.

Applications

  • Medical device pressure monitoring (e.g., ventilators, infusion pumps).
  • HVAC system air flow and duct pressure control.
  • Appliance pressure sensing in coffee machines, water dispensers, and white goods.
  • Industrial process control and pneumatic system monitoring.
  • Portable instrumentation and data logging equipment.

Technical Specifications

Pressure TypeGauge
Pressure Range0 to 1000 kPa
Sensor TypeMEMS Piezoresistive
Output TypeAnalog Voltage
Supply Voltage5 V DC
Standby Current1.8 mA
Operating Temperature-30°C to +85°C
Accuracy±2% (Typical)
PackageDIP-6
Weight0.008 kg

Frequently Asked Questions

What is the output signal of the GZP6847A001MPP50K sensor?

The sensor provides an analog voltage output that is linearly proportional to the applied gauge pressure. This output can be directly connected to an analog-to-digital converter (ADC) pin on a microcontroller, such as an Arduino or STM32, for digital pressure reading.

What is the required power supply for this pressure sensor?

This sensor requires a stable 5V DC power supply. It is critical to provide a clean, regulated 5V source to ensure accurate sensor readings and prevent damage to the internal MEMS element. The typical standby current draw is 1.8 mA.

What is the pressure range and type measured by this sensor?

This sensor measures gauge pressure from 0 to 1000 kilopascals (kPa). Gauge pressure is measured relative to ambient atmospheric pressure. It is suitable for monitoring pressure in closed systems like pneumatic lines, medical devices, and fluid reservoirs.

How do I interface this DIP-6 sensor with my PCB?

The sensor comes in a standard Dual In-line Package (DIP-6) with 6 pins. It is designed for through-hole PCB mounting. You must consult the official Sencoch datasheet for the precise pinout diagram to correctly connect the power, ground, and analog output signals.

Package Includes

  • 1 x Sencoch GZP6847A001MPP50K Pressure Sensor

Additional Information

Weight 0.008 kg
Dimensions 9 × 6 × 2 cm
