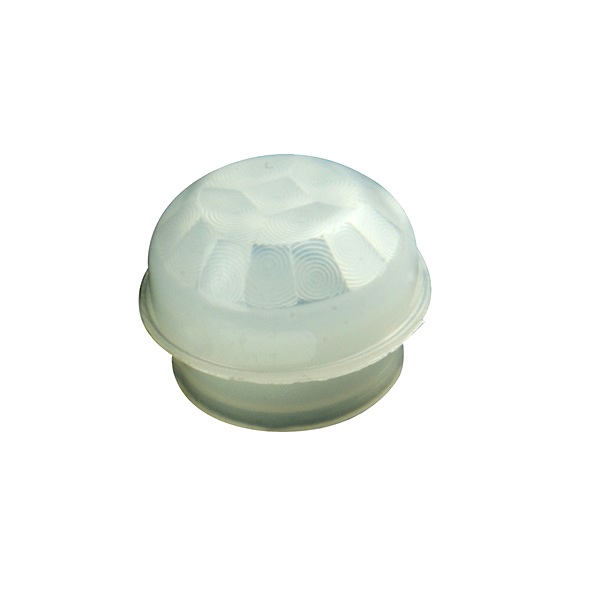

Senba S9001 Plastic Fresnel Lens for PIR Sensor - 13.6x13.6mm, 5m Range, 120° Angle
The Senba S9001 is a high-density polyethylene (HDPE) Fresnel lens designed to enhance the sensitivity and detection field of Passive Infrared (PIR) motion sensors. With a 120° viewing angle and a 5-meter detection range, it is compatible with a wide range of smart home security systems and PIR sensor modules.
Features
- Optimized for PIR sensor sensitivity and detection field enhancement.

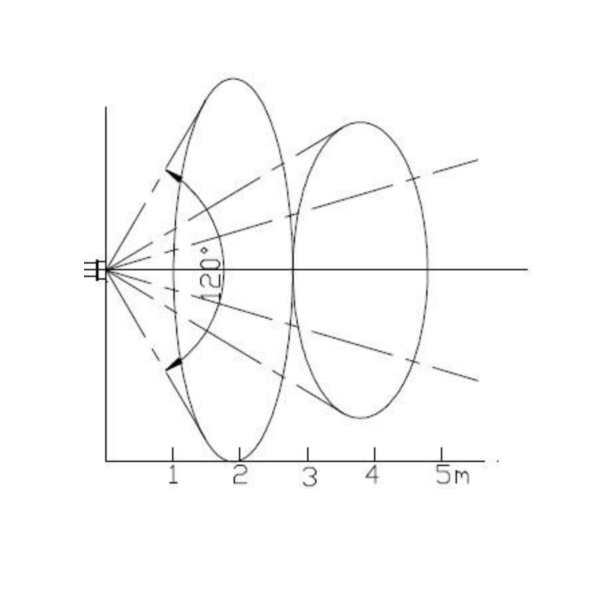

- Wide 120° viewing angle for broad area coverage.
- Effective detection range up to 5 meters.
- Constructed from durable, transparent HDPE plastic.

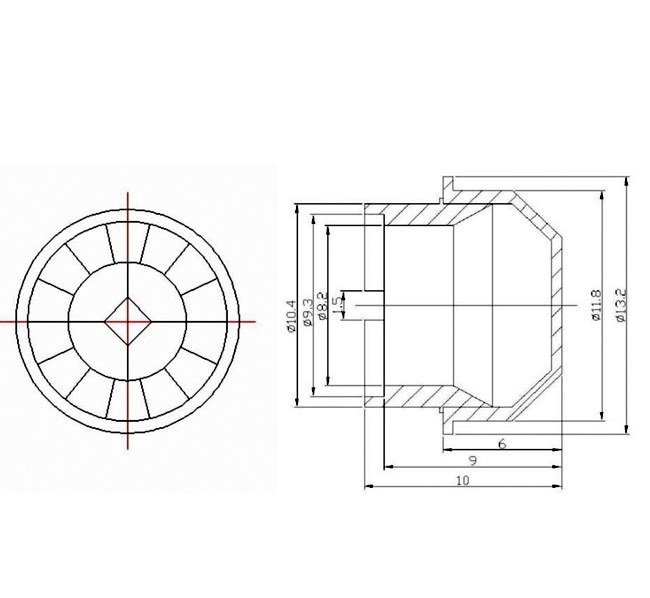

- Compact 13.6 x 13.6 mm size with a 6 mm focal length.
Out of stock
The S9001 Fresnel lens is an optical component specifically engineered for Passive Infrared (PIR) sensor applications. Its concentric ring structure focuses infrared radiation from a wide field of view onto the sensor’s pyroelectric element, significantly increasing the system’s sensitivity to human motion. The smooth outer surface and precise focal length ensure optimal performance in intrusion alarms and smart home automation.
This lens is a critical accessory for any PIR-based motion detection system, converting the raw sensor into a functional module with defined detection zones. Its design offers a more compact and cost-effective solution compared to traditional bulky optical lenses, making it the standard choice for modern PIR sensor integration.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 4 × 1 cm |
