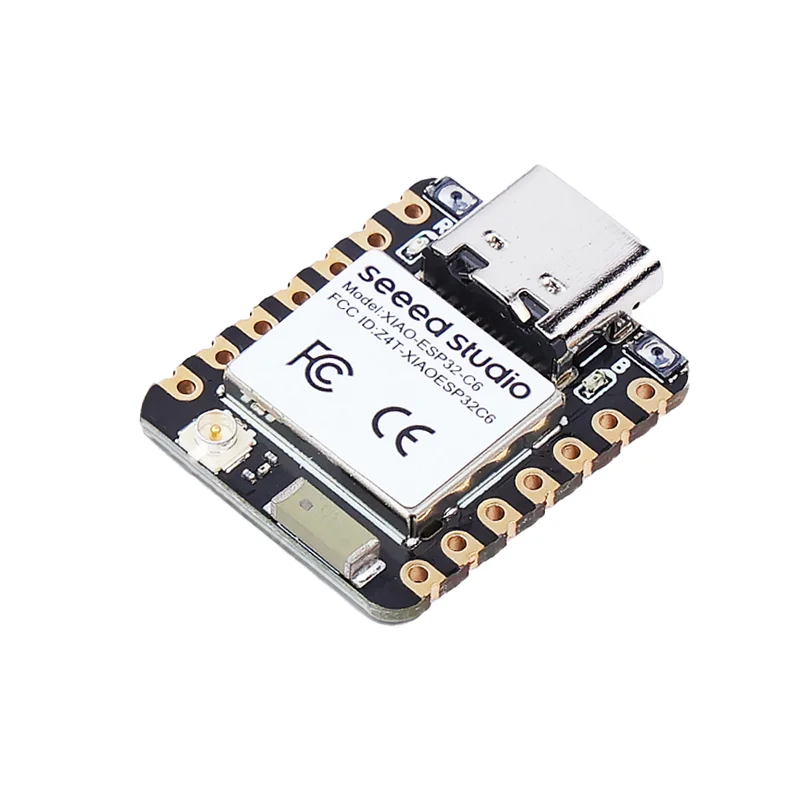

Seeed Studio Studio XIAO ESP32C6 MCU (Wi-Fi 6, BLE 5.0, Zigbee, Thread)
Seeed Studio Studio XIAO ESP32C6 MCU (Wi-Fi 6, BLE 5.0, Zigbee, Thread) - Image 2
Seeed Studio Studio XIAO ESP32C6 MCU (Wi-Fi 6, BLE 5.0, Zigbee, Thread) - Image 3
SKU: IOWC-1255
📋 GST Invoice Available

Seeed Studio Studio XIAO ESP32C6 MCU (Wi-Fi 6, BLE 5.0, Zigbee, Thread)

₹759.00 (Inclusive of all taxes)
Out of Stock

The Seeed Studio Studio XIAO ESP32C6 is a compact, thumb-sized MCU development board powered by the ESP32-C6 SoC, featuring native support for 2.4GHz Wi-Fi 6, Bluetooth 5.0, Zigbee, and Thread for versatile IoT connectivity and Matter-enabled smart home projects.

Features

  • ESP32-C6 SoC with Dual RISC-V Cores: Combines a high-performance and a low-power 32-bit RISC-V processor for efficient task handling and energy savings.
  • Multi-Protocol Wireless Connectivity: Integrates 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0 LE, Zigbee, and Thread (802.15.4) on a single chip for flexible network integration.
  • Matter-Native & Enhanced Security: Designed for interoperability in Matter-compliant smart home ecosystems, featuring secure boot, flash encryption, and a Trusted Execution Environment (TEE).
  • Ultra-Low Power Operation: Supports deep sleep modes with current consumption as low as 15μA, making it ideal for battery-powered wearables and remote sensors.
  • Compact XIAO Form Factor: Maintains the classic, space-saving design perfect for embedded projects with strict size constraints.

Out of stock

Description

The XIAO ESP32C6 from Seeed Studio Studio is a highly integrated microcontroller unit built around Espressif’s ESP32-C6 system-on-chip. This board delivers a powerful combination of processing capability and comprehensive wireless connectivity in a minimal footprint. It is engineered for developers creating next-generation IoT devices that require seamless integration into modern smart home networks, particularly those utilizing the Matter standard.

Its architecture supports concurrent operation of multiple wireless protocols, allowing a single device to communicate across different network topologies. The on-board antenna provides robust RF performance with a range up to 80 meters for BLE and Wi-Fi, while an external U.FL antenna connector offers flexibility for extended range applications. With 512KB SRAM and 4MB of integrated flash memory, it provides ample resources for complex firmware developed in Arduino IDE, ESP-IDF, or MicroPython.

Key Features

  • Multi-Protocol Wireless Hub: Single-chip solution supporting Wi-Fi 6, BLE 5.0, Zigbee, and Thread for versatile IoT node design.
  • Matter Compliance Ready: Native support simplifies development of interoperable smart home devices for ecosystems like Apple Home, Google Home, and Amazon Alexa.
  • Enterprise-Grade Security On-Chip: Hardware-based security features including secure boot, flash encryption, and a Trusted Execution Environment protect device integrity and data.
  • Optimized for Low-Power Applications: Features multiple power-saving modes, with deep sleep enabling long-term deployment on coin-cell or small LiPo batteries.

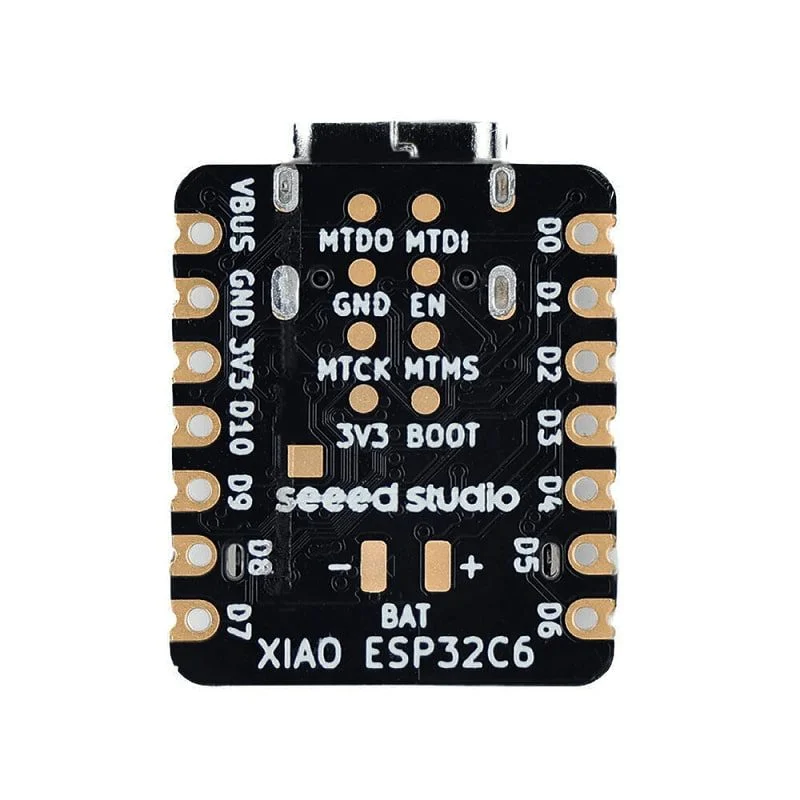

  • Compact & Developer-Friendly Design The XIAO series footprint provides a familiar pinout with accessible GPIOs for rapid prototyping in space-constrained projects.
  • Enhanced RF Performance: On-board PCB antenna delivers reliable connectivity, with an optional U.FL connector for attaching high-gain external antennas.

Applications

  • Matter-Compatible Smart Home Devices: Wall switches, sensors, lighting controllers, and smart plugs that require seamless cross-platform interoperability.
  • Wearable Technology & Health Monitors: Compact, battery-efficient designs for fitness trackers, smart watches, and medical sensors.
  • Industrial IoT & Wireless Sensor Networks: Multi-protocol gateways or nodes for environmental monitoring, asset tracking, and telemetry data collection.
  • Space-Constrained Prototypes & Products: Ideal for embedding into final products where PCB real estate is limited, such as consumer electronics or compact gadgets.

Technical Specifications

Microcontroller / SoCESP32-C6 (Dual-core 32-bit RISC-V)
Wireless ProtocolsWi-Fi 6 (802.11ax 2.4GHz), Bluetooth 5.0 LE, Zigbee, Thread (802.15.4)
SRAM512 KB
Flash Memory4 MB (On-chip)
Security FeaturesSecure Boot, Flash Encryption, Trusted Execution Environment (TEE)
AntennaIntegrated PCB Antenna, U.FL Connector for External Antenna
Typical Deep Sleep Current~15 μA
Development PlatformArduino IDE, ESP-IDF, MicroPython
Operating TemperatureStandard Commercial Range (Typical for ESP32)

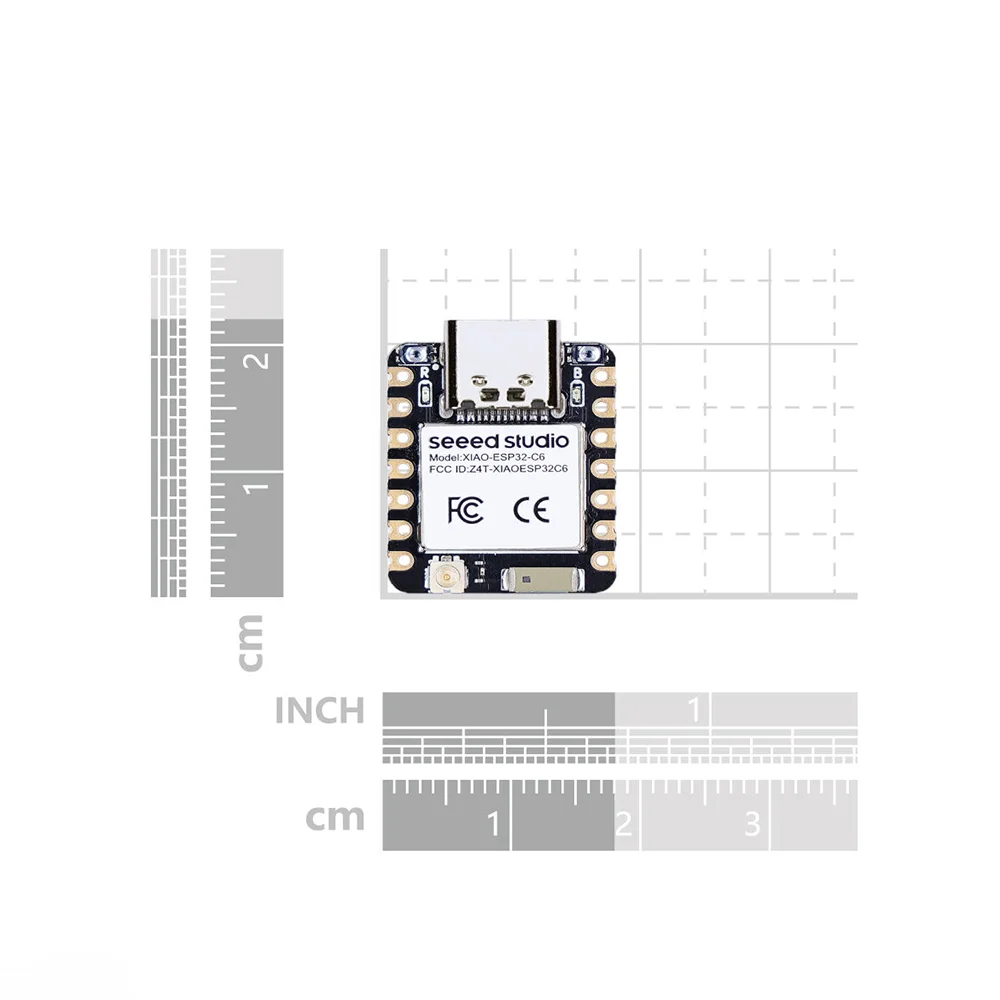

Dimensions (Board)Approx. 21 x 17.5 mm (XIAO Form Factor)

Frequently Asked Questions

What development frameworks are supported for programming the XIAO ESP32C6?

The board is fully compatible with the Arduino IDE using the ESP32 board manager, Espressif's official ESP-IDF framework for advanced features, and MicroPython for rapid scripting. You need to install the appropriate board package or toolchain. The ESP32-C6 is a relatively new chip, so ensure your development environment is updated to the latest versions to access all wireless protocols like Wi-Fi 6, BLE, Zigbee, and Thread.

How do I enable the external antenna on the XIAO ESP32C6 for better range?

The board has an onboard PCB antenna by default. To use an external antenna, you must solder a U.FL (IPEX) connector to the designated pads on the board and attach your compatible antenna. In your firmware, you will typically need to configure the RF path to use the external antenna via an API call in ESP-IDF or a library function in Arduino, which disables the internal antenna path and routes the signal to the connector.

What is the power supply requirement and how low is its sleep current?

The XIAO ESP32C6 operates at 3.3V. You can power it via the 3V3 pin or the USB-C connector. For battery operation, its deep sleep mode is highly efficient, consuming approximately 15 microamps (μA). This ultra-low current enables projects to run for months or years on small batteries, making it perfect for wireless sensors that only wake up periodically to transmit data.

Package Includes

  • 1 x Seeed Studio Studio XIAO ESP32C6 Development Board

Additional Information

Weight 0.005 kg
Dimensions 5 × 5 × 1 cm
