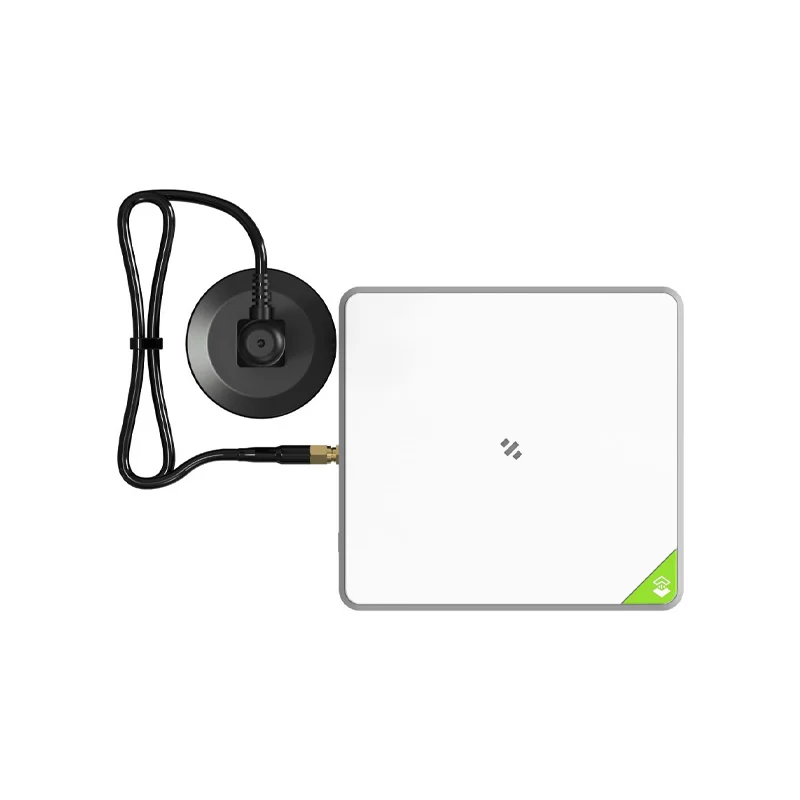

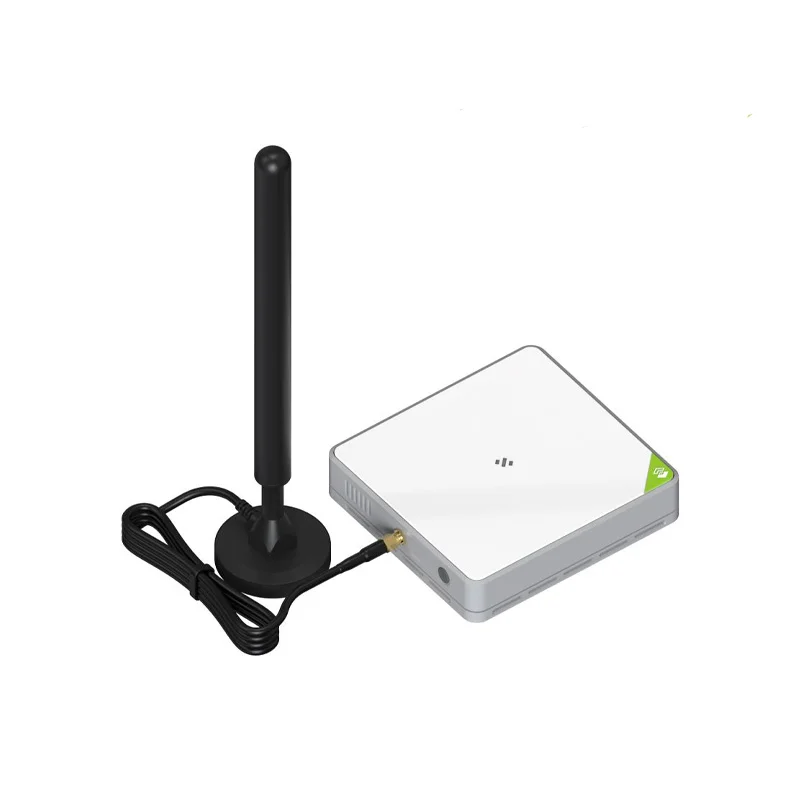

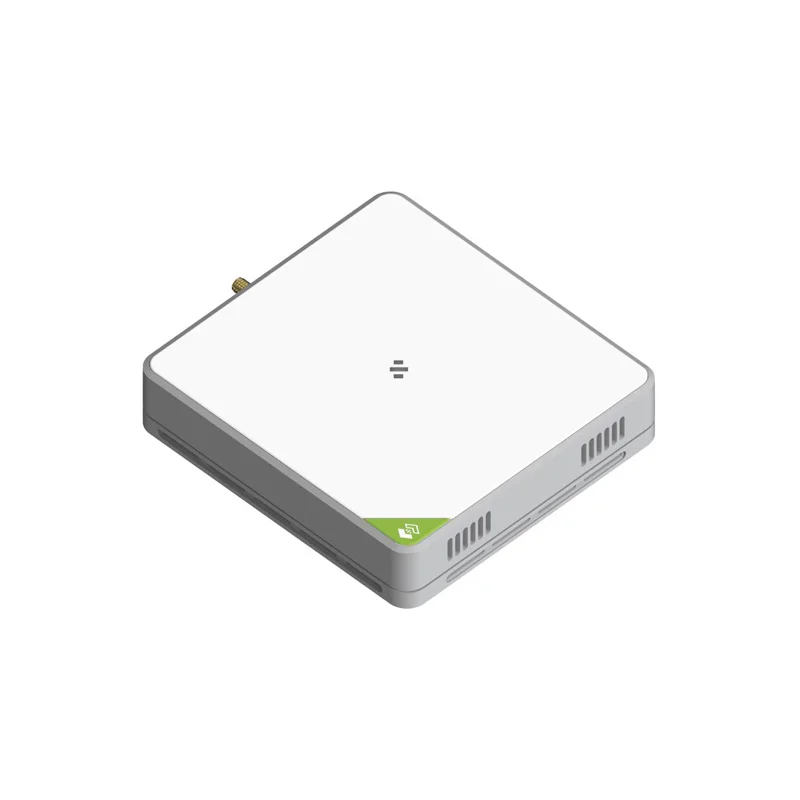

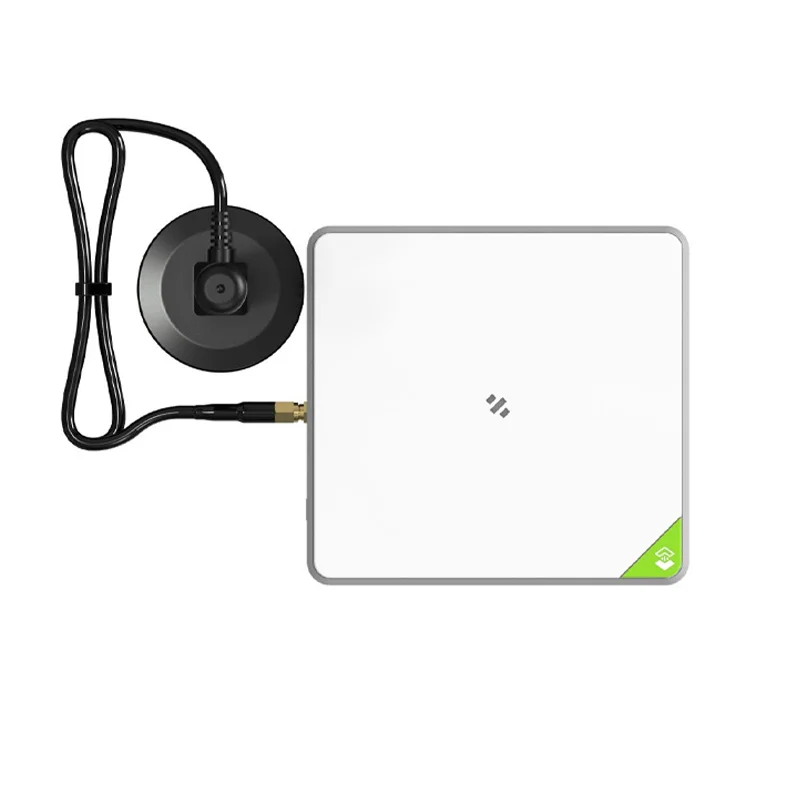

Seeed Studio Studio SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway (SX1302) EU868
Seeed Studio Studio SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway (SX1302) EU868 - Image 2
Seeed Studio Studio SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway (SX1302) EU868 - Image 3
Seeed Studio Studio SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway (SX1302) EU868 - Image 4
Seeed Studio Studio SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway (SX1302) EU868 - Image 5
SKU: IOWC-1712
📋 GST Invoice Available

Seeed Studio Studio SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway (SX1302) EU868

₹13,649.00 (Inclusive of all taxes)
Out of Stock

The SenseCAP M2 is a multi-platform LoRaWAN indoor gateway built on the Semtech SX1302 chipset, supporting EU868 (865-923 MHz) frequency plans. It connects to major LoRaWAN network servers like TTN and ChirpStack, features Power-over-Ethernet (PoE) support, and provides up to 10 km of wireless coverage for scalable IoT deployments.

Features

  • Multi-Network Server Compatibility: Seamlessly connects to The Things Network (TTN), ChirpStack, AWS IoT Core, and other standard LoRaWAN® servers for flexible cloud integration.
  • Semtech SX1302 Concentrator: Delivers robust 8-channel LoRa packet forwarding with high sensitivity (-139 dBm @ SF12) for reliable long-range communication up to 10 km.
  • Power-over-Ethernet (PoE) & Dual Power: Simplifies installation by receiving power via the Ethernet cable (IEEE 802.3af) or an optional 12V DC adapter, reducing cable clutter.
  • Easy Local Configuration: Features a dedicated Wi-Fi Access Point and SenseCAP Local Console web interface for quick, network-independent setup and management.
  • Industrial-Grade Hardware: Powered by an MT7628 processor (580 MHz) with 128MB DDR2 RAM, ensuring stable performance for handling hundreds of end-device connections.

Out of stock

Description

The SenseCAP M2 Multi-Platform LoRaWAN Gateway is a professional-grade indoor base station designed for developers and system integrators to build private or community LoRaWAN networks. Its core is the Semtech SX1302 digital baseband chipset, which provides an 8-channel concentrator capable of receiving multiple LoRa packets simultaneously on different spreading factors. This architecture ensures high capacity and excellent sensitivity, making it ideal for dense IoT sensor deployments in urban or agricultural settings.

Network management is highly flexible, as the gateway does not lock you into a single provider. It can be configured to forward payloads to any standard LoRaWAN Network Server (LNS) via Packet Forwarder, including open-source options like ChirpStack (which is pre-integrated) or cloud platforms like AWS IoT Core for LoRaWAN. For local control and monitoring, the built-in SenseCAP Local Console provides a web-based dashboard accessible via its own Wi-Fi AP or the Ethernet port, offering real-time status, packet logs, and firmware update capabilities.

Built for reliability, the gateway operates from -20°C to 55°C and is powered by a robust MT7628 MIPS processor. The inclusion of a USB Type-C console port aids in advanced debugging, while the RP-SMA female antenna connector allows for the attachment of higher-gain antennas to extend coverage. Its compact form factor and PoE support make it perfect for ceiling-mounted installations in smart buildings, warehouses, or greenhouses, providing the essential link between your LoRa end nodes and the cloud.

Key Features

  • Multi-Platform LoRaWAN Support: Connect to The Things Network (TTN), ChirpStack, AWS IoT Core, and other standard-compliant LoRaWAN Network Servers for maximum deployment flexibility.
  • High-Capacity SX1302 Concentrator: Features 8 parallel demodulation paths to handle high volumes of simultaneous uplink transmissions from numerous sensors.
  • Dual Power Input with PoE: Supports IEEE 802.3af Power-over-Ethernet for single-cable deployment, with a fallback to 12V/2A DC input for non-PoE networks.
  • Integrated Management Interfaces: Configure and monitor the gateway locally via Wi-Fi AP and the SenseCAP Local Console, or remotely through the cloud-based SenseCAP Portal.
  • Global Frequency Plan Compatibility: Hardware supports the EU868 (865-923 MHz) ISM band, with firmware configurable for other regional plans like US915 and AS923.
  • Extended Operational Range: Engineered for up to 10 km line-of-sight coverage in ideal conditions, capable of penetrating urban and rural environments.
  • Future-Proof Expansion: Includes a microSD card slot (reserved for future features) and a USB Type-C port for console access and potential peripheral connectivity.
  • Robust Thermal Design: Operates reliably in temperatures from -20°C to 55°C, suitable for uncontrolled indoor environments like attics or industrial sheds.

Applications

  • Smart Agriculture & Precision Farming: Gateway for soil moisture, weather, and livestock monitoring sensors across large farms and greenhouses.
  • Environmental Monitoring Networks: Central hub for air quality, water level, and pollution sensors in smart city and conservation projects.
  • Industrial IoT & Asset Tracking: Provides LoRaWAN coverage in warehouses, factories, and logistics yards for tracking equipment and monitoring conditions.
  • Smart Building Management: Connects occupancy, temperature, and energy metering sensors for efficient office and facility management.
  • Community & Private LoRaWAN Networks: Ideal for developers, researchers, or municipalities building their own localized IoT infrastructure.

Technical Specifications

Model / NameSenseCAP M2 Multi-Platform LoRaWAN Gateway
ProcessorMT7628 (MIPS24KEc @ 580MHz)
RAM128MB DDR2
LoRaWAN Concentrator ChipsetSemtech SX1302
Frequency Range865 MHz to 923 MHz (EU868)
RF Sensitivity-125 dBm @ SF7/125kHz, -139 dBm @ SF12/125kHz
Channels8
Max Transmit PowerProgrammable up to region-specific limits (e.g., +27 dBm for EU868)
Theoretical Coverage RangeUp to 10 km (line-of-sight)
Supply VoltagePoE (IEEE 802.3af, 40-57V DC) or DC 12V @ 2A
Wi-Fi2.4 GHz 802.11 b/g/n (for configuration AP)
Ethernet1x RJ45 (10/100 Mbps), PoE PD supported
Antenna Connector1x RP-SMA Female
Other InterfacesUSB Type-C (Console), Micro SD Card Slot (future use)
Operating Temperature-20°C to 55°C
Dimensions (L x W x H)143.6 mm x 135 mm x 34 mm (excluding connector)

Frequently Asked Questions

How do I configure the SenseCAP M2 Gateway to connect to The Things Network (TTN)?

Power on the gateway and connect your computer to its Wi-Fi Access Point (SSID: SenseCAP_XXXX). Open a browser and go to the default IP (e.g., 192.168.4.1) to access the SenseCAP Local Console. Navigate to the LoRaWAN Network Server settings, select 'TTN' as the server type, and enter your Gateway EUI and TTN account credentials. Finally, configure the frequency plan to EU868, save settings, and connect the gateway to your internet via Ethernet. The gateway will then start forwarding packets to your TTN application. (Word count: 50)

Can I power the SenseCAP M2 Gateway using only an Ethernet cable?

Yes, the SenseCAP M2 supports IEEE 802.3af Power-over-Ethernet (PoE). You need a PoE switch or a PoE injector that provides 40-57V DC. Connect the Ethernet cable from the PoE source to the gateway's RJ45 port; no separate power adapter is required. Ensure your PoE source is rated for at least Class 1 (4W) to deliver sufficient power for the gateway's operation, including the LoRa radio and processor. (Word count: 40)

What is the purpose of the USB Type-C port on the SenseCAP M2 Gateway?

The USB Type-C port serves as a console/serial interface for advanced debugging and direct command-line access to the gateway's Linux operating system. You can connect it to a computer using a USB-C cable and use a terminal emulator (like PuTTY or screen) at the specified baud rate (commonly 115200) to view system logs, modify configuration files, or perform firmware updates manually. It is essential for developers needing low-level control beyond the web-based Local Console. (Word count: 42)

How do I update the firmware on my SenseCAP M2 Gateway?

Firmware updates can be performed through the SenseCAP Local Console web interface. Ensure the gateway is connected to the internet via Ethernet. In the Local Console, navigate to the 'System' or 'Maintenance' section and find the firmware update option. You can upload a provided firmware file or trigger an online check for the latest version. The process is automated; the gateway will download, verify, and install the update, then reboot. Do not power off the device during this process to avoid bricking. (Word count: 40)

Can I attach a higher-gain antenna to the SenseCAP M2 to increase range?

Yes, the gateway features a standard RP-SMA female antenna connector. You can replace the included 3dBi antenna with a higher-gain directional or omnidirectional LoRa antenna (e.g., 5dBi or 8dBi) that supports the 868 MHz band. Ensure the antenna has an RP-SMA male connector. Using a higher-gain antenna can significantly extend the effective coverage area, especially in line-of-sight scenarios, by improving both transmit and receive signal strength. Always comply with local regulations for maximum effective radiated power (ERP). (Word count: 42)

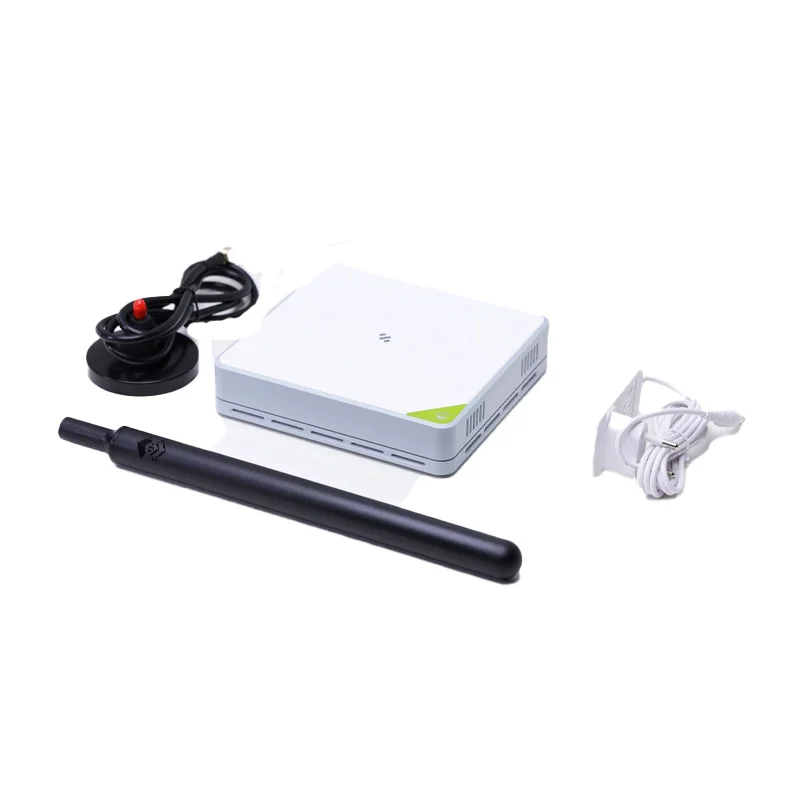

Package Includes

  • 1 x SenseCAP M2 Multi-Platform LoRaWAN Gateway
  • 1 x 3dBi RP-SMA LoRa Antenna
  • 1 x 12V/2A DC Power Adapter (Region-specific plug)

Additional Information

Weight 0.83 kg
Dimensions 14.36 × 13.5 × 3.4 cm
