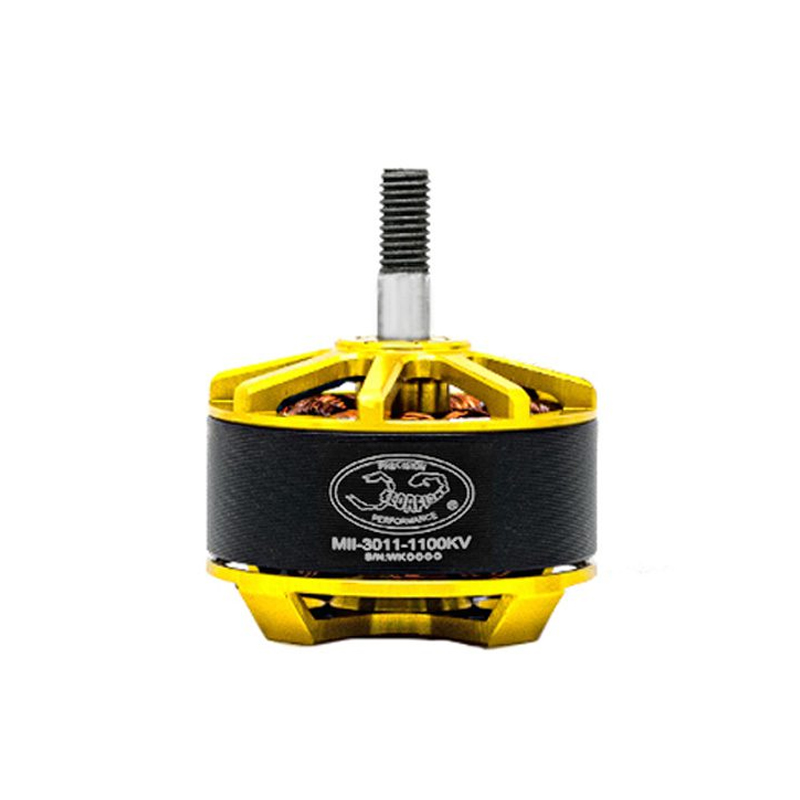

Scorpion MII-3011-1100kv Cinematography Edition Drone Motor - 8"-9" Prop
Scorpion MII-3011-1100kv Cinematography Edition Drone Motor - 8"-9" Prop - Image 2
SKU: DRFC-2741
📋 GST Invoice Available

Scorpion MII-3011-1100kv Cinematography Edition Drone Motor - 8"-9" Prop

₹8,039.00 (Inclusive of all taxes)
Out of Stock

The Scorpion MII-3011-1100kv Cinematography Edition is a high-power brushless motor engineered for 6S LiPo-powered cinematic drone platforms, optimized for 8″-9″ propellers to deliver smooth, efficient, and low-noise flight performance for heavy-lift applications.

Features

  • 1100KV rating optimized for 6S LiPo power and 8″-9″ propellers.
  • Delivers up to 3200g of thrust with 844W continuous / 1332W peak power handling.
  • Low 55mΩ internal resistance for high efficiency and extended flight times.
  • 12-arm stator with 14 magnet poles and 8T Delta wind for smooth, quiet operation.
  • Ideal for X4 (3.5kg MTOW) and X8 (up to 5kg MTOW) heavy-lift cinematography drones.

Out of stock

Description

The Scorpion MII-3011-1100kv motor is purpose-built for professional cinematography and heavy-lift drone applications. Its 1100KV design is precisely matched to 6S battery systems and large 8″-9″ propellers, generating substantial thrust while maintaining operational smoothness critical for stable camera footage.

Engineered with a robust 12-arm stator and 14-pole magnet configuration, the motor provides exceptional torque and thermal management, allowing it to sustain high continuous power loads. The low internal resistance minimizes electrical losses, translating to cooler running temperatures and improved overall system efficiency for longer endurance flights.

Key Features

  • Cinematography-Optimized Design: Engineered for ultra-smooth, low-vibration operation essential for gimbal-stabilized aerial filming.
  • High-Power Stator Architecture: 12-arm stator with 8T Delta winding provides high torque density and excellent thermal dissipation.
  • Premium Magnetic Circuit: 14-pole Neodymium magnet bell ensures consistent power delivery and responsive throttle control.
  • Efficiency-Focused Engineering: Low 55mΩ phase resistance maximizes battery efficiency, extending flight time per charge.
  • Heavy-Duty Construction: Durable materials and precision machining support sustained high-load operation in X4 and X8 multirotor configurations.
  • Thermal Management: Design promotes effective heat dissipation, supporting 844W continuous power handling.

Applications

  • Heavy-lift cinematography drones using 8" or 9" propellers on 6S power.
  • X4 (quadcopter) platform builds targeting a 3.5kg Maximum Take-Off Weight (MTOW).
  • X8 (octocopter) platform builds for payloads up to 4.5-5kg MTOW.
  • Aerial photography and mapping platforms requiring smooth, efficient, and long-endurance flight.
  • Custom heavy-lift multirotors for professional film, inspection, or delivery applications.

Technical Specifications

Motor KV1100 KV
Model SeriesMII Series
Model NumberMII-3011-1100kv
Continuous Current38 A
Peak Current60 A
Continuous Power844 W
Peak Power1332 W
Max Thrust3200 g
Internal Resistance55 mΩ
Stator Arms12
Magnet Poles14
Winding8T Delta
Supported Battery4-6S LiPo
Motor Diameter36.8 mm
Motor Length44 mm
Weight90 g

Frequently Asked Questions

What is the recommended propeller size and battery for this motor?

The Scorpion MII-3011-1100kv motor is optimized for 8" to 9" propellers, such as the HQ 8x4x3, and is designed to run on 4S to 6S LiPo battery packs, with 6S being the ideal voltage for achieving its rated thrust and power performance in cinematography applications.

What is the maximum thrust and continuous power rating?

This motor delivers up to 3200 grams of thrust. It is rated for a continuous power handling of 844 watts and a peak power of 1332 watts, making it suitable for sustained high-load operation in heavy-lift drone configurations.

Is this motor suitable for an X8 (octocopter) build?

Yes, this motor is explicitly recommended for X8 platform builds, supporting Maximum Take-Off Weights (MTOW) up to 4.5-5kg. Its high torque and efficiency make it a reliable choice for distributing heavy payloads across eight motors.

What are the key design features for smooth operation?

Smooth, low-noise operation is achieved through a 12-arm stator and 14-pole magnet design, which provides consistent torque and minimizes cogging. Combined with a low 55mΩ internal resistance, this results in vibration-free performance critical for cinematic video.

Package Includes

  • 1 x Scorpion MII-3011-1100kv Cinematography Edition Motor
  • 4 x Mounting Screws

Additional Information

Weight 0.09 kg
Dimensions 4.4 × 3.68 cm
