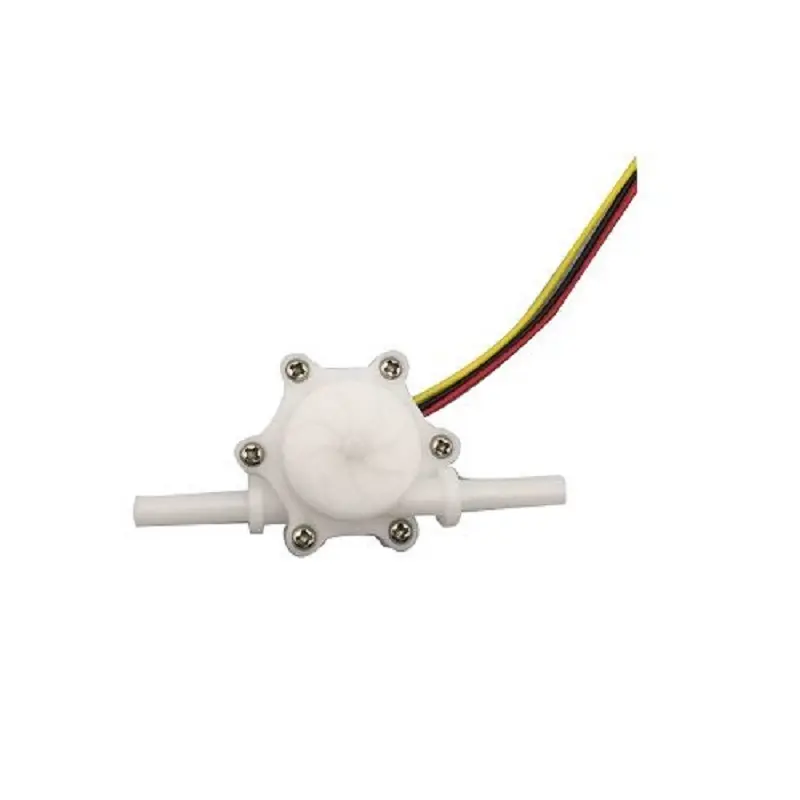

Saier SEN-HZ06K Water Flow Sensor 0.5–4.5 L/Min DC 4.5–18V
The Saier SEN-HZ06K is a turbine-based water flow sensor designed for precise liquid flow rate monitoring from 0.5 to 4.5 L/min. Operating on a wide DC 4.5–18V supply, it provides both analog and digital output signals for easy integration with microcontrollers (Arduino, Raspberry Pi, ESP32) and industrial PLCs.
Features
- Turbine-based flow sensing with 5–8% accuracy over a 0.5–4.5 L/min range.
- Wide operating voltage: DC 4.5–18V with low current draw (≤15mA).
- Durable construction rated for working water pressures up to 1.20 MPa.
- Flexible output options: compatible with both analog voltage and digital pulse signals.
- Compact form factor (approx. 10 x 8 x 3 cm) for installation in confined spaces.
Out of stock
The Saier SEN-HZ06K utilizes a precision turbine mechanism to translate fluid velocity into a measurable electrical signal. As liquid passes through the sensor body, it spins an internal rotor, generating a corresponding pulse frequency or analog voltage output proportional to the flow rate. This reliable mechanical principle ensures consistent performance for water and compatible low-viscosity liquids.
Engineered for system integration, the sensor features a wide 4.5–18V DC input range, making it compatible with 5V and 12V logic systems common in automation and IoT projects. Its robust housing and internal components are designed to withstand continuous operation at pressures up to 1.20 MPa, providing long-term durability in demanding applications.
Additional Information
| Weight | 0.027 kg |
|---|---|
| Dimensions | 8 × 10 × 3 cm |
