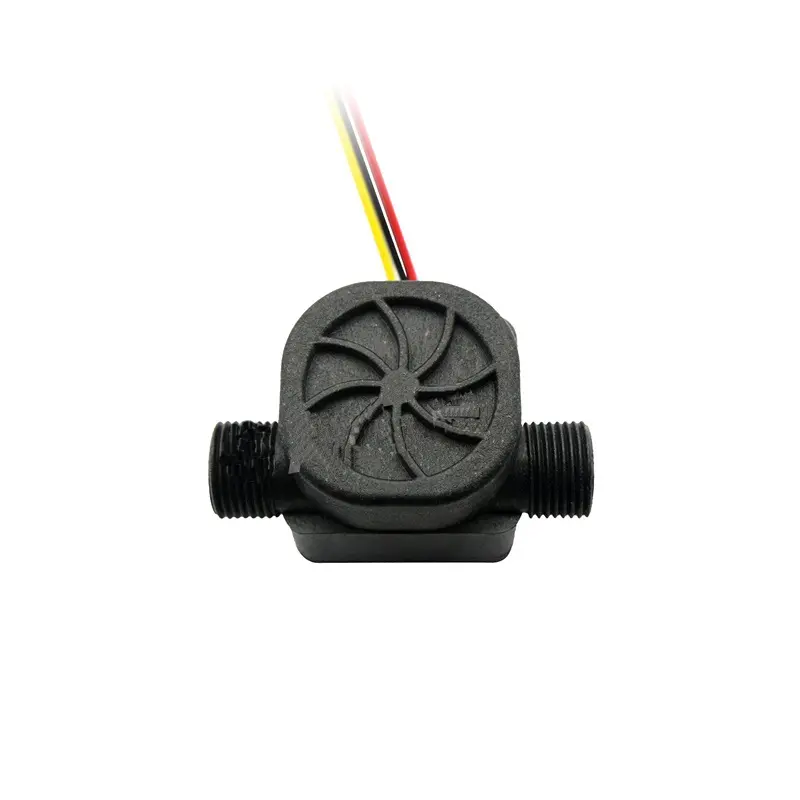

Saier HZ16WA Water Flow Sensor (0.5–20 L/min) - Turbine Sensor, 4.5-18V DC
The Saier HZ16WA is a turbine-based water flow sensor designed for precise measurement of liquid flow rates from 0.5 to 20 L/min. Operating on a 4.5-18V DC supply, it provides both analog and digital output signals, making it compatible with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs for process monitoring and automation.
Features
- Turbine-based sensing for accurate flow rate measurement from 0.5 to 20 L/min.
- Wide operating voltage range of 4.5-18V DC with low current consumption (≤15mA).
- Provides both analog and digital output options for flexible system integration.
- Durable construction suitable for liquids and gases, rated for pressures up to 1.75 MPa.
- Compact form factor for easy installation in confined plumbing or system spaces.
Out of stock
The Saier HZ16WA Water Flow Sensor utilizes a precision turbine mechanism to measure fluid flow. As liquid passes through the sensor body, it spins an internal rotor, generating a pulse frequency or analog voltage signal proportional to the flow rate. This electromechanical principle ensures reliable and repeatable measurements across its specified range.
Engineered for robust performance, the sensor features a housing capable of withstanding working pressures up to 1.75 MPa and offers high insulation resistance (>100 MΩ). Its wide 4.5-18V DC input range allows for direct compatibility with 5V and 12V logic systems commonly found in industrial control panels, IoT gateways, and DIY automation projects, providing a versatile solution for flow monitoring.
Additional Information
| Weight | 0.06 kg |
|---|---|
| Dimensions | 12 × 10 × 5 cm |
