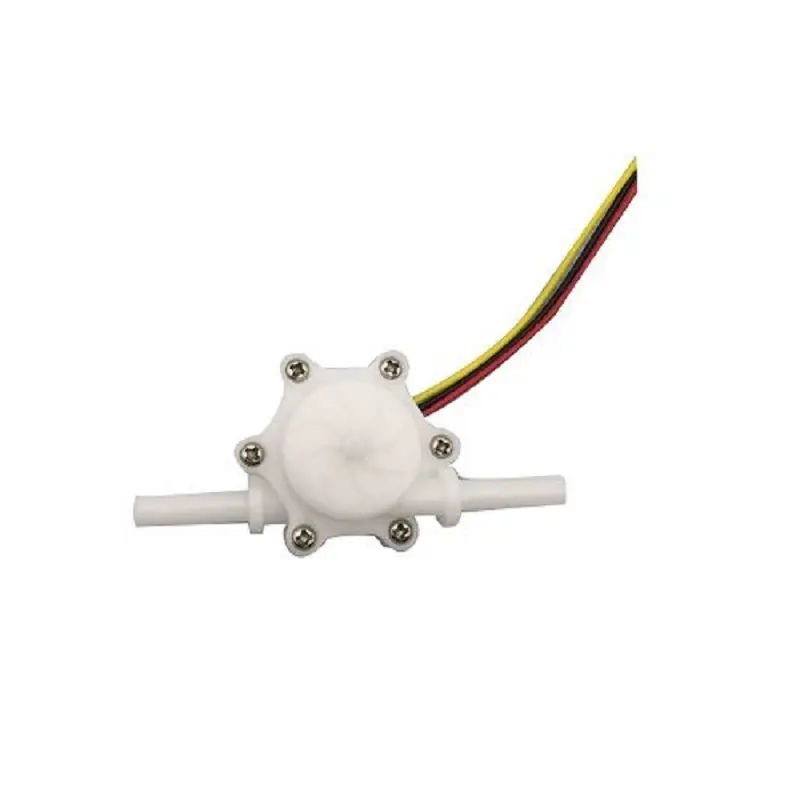

Saier HZ06K Water Flow Sensor (0.3–3.5 L/min)
The Saier HZ06K is a turbine-based water flow sensor designed for precise monitoring of liquid flow rates from 0.3 to 3.5 L/min. It features a wide 4.5–18V DC input range, making it compatible with 5V and 12V systems like Arduino, Raspberry Pi, and industrial PLCs, and offers both analog and digital output options for flexible integration.
Features
- Turbine-based sensing for accurate flow measurement (0.3–3.5 L/min).
- Wide operating voltage range: 4.5–18V DC for 5V/12V system compatibility.
- Low power consumption with input current ≤15mA.
- Durable construction suitable for both liquids and gases.
- Provides both analog and digital output signal options.
Out of stock
The Saier HZ06K Water Flow Sensor employs a precision turbine mechanism to translate fluid velocity into a measurable electrical signal. Its internal Hall-effect sensor detects the rotation of the turbine impeller, generating a pulse frequency proportional to the flow rate, which can be read as a digital signal or converted to an analog voltage.
Engineered for reliability, the sensor features a robust housing capable of withstanding working pressures up to 1.2 MPa. With an insulation resistance greater than 100 MΩ and a dielectric strength of 500V AC, it is designed for safe, long-term operation in various aqueous environments, from domestic appliances to light industrial monitoring systems.
Additional Information
| Weight | 0.027 kg |
|---|---|
| Dimensions | 8 × 10 × 3 cm |
