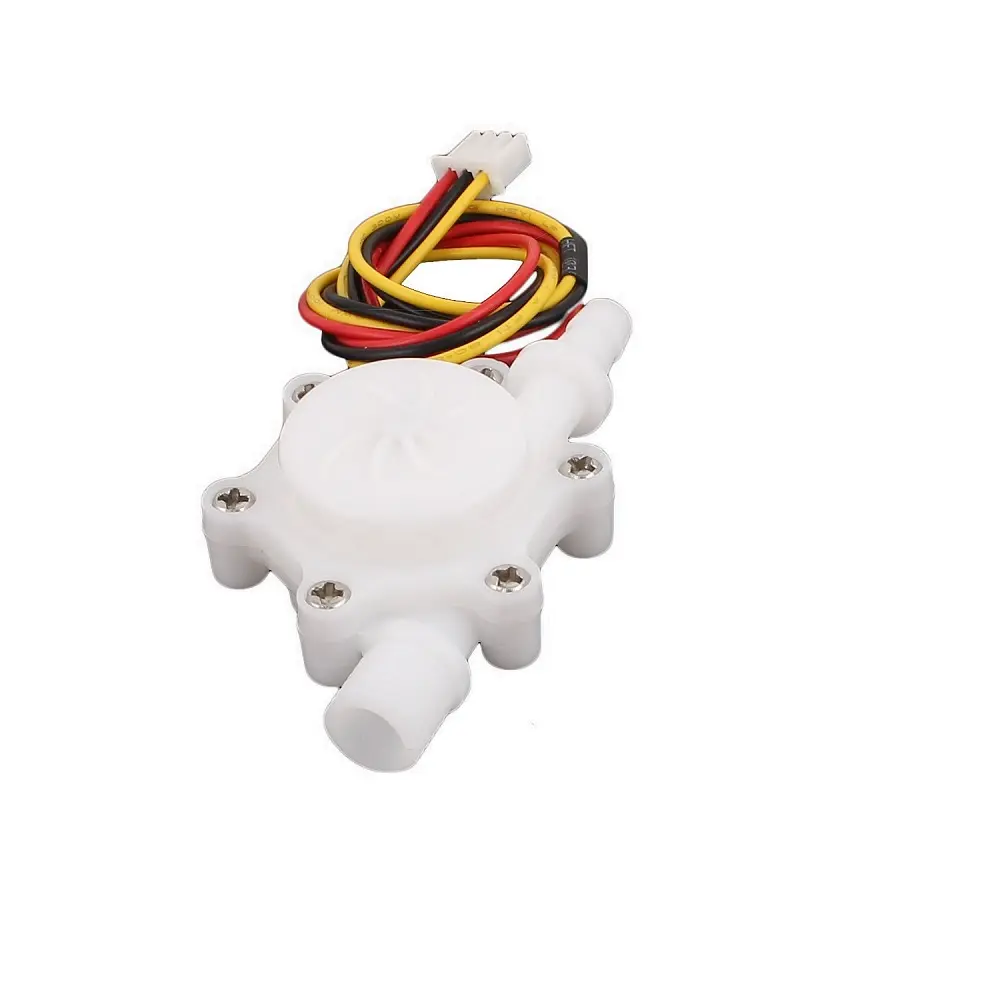

Saier HZ06FB Water Flow Sensor (0.15–1.5 L/min) - DC 4.5-18V
The Saier HZ06FB is a compact turbine-based water flow sensor designed for precise flow rate monitoring from 0.15 to 1.5 L/min. Operating from a wide 4.5-18V DC supply, it provides both analog and digital output options for easy integration into industrial control systems, home automation, and IoT projects.
Features
- Turbine-based sensor for accurate flow rate measurement from 0.15 to 1.5 L/min.
- Wide operating voltage range of 4.5-18V DC for flexible power supply compatibility.
- Provides both analog and digital output signals for versatile system integration.
- Compact and durable construction for reliable long-term operation in tight spaces.
- Suitable for monitoring both liquids and gases in various applications.
Out of stock
The Saier HZ06FB employs a precision turbine mechanism to translate fluid flow into a measurable electrical signal. As fluid passes through the sensor body, it spins an internal rotor, generating a series of pulses or an analog voltage proportional to the flow rate. This robust sensing principle ensures consistent performance across its specified range.
Built for durability, the sensor features a housing designed to withstand working pressures up to 1.2 MPa. Its electrical design includes high insulation resistance (>100 MΩ) and dielectric strength, making it suitable for integration into a wide array of electronic control systems, from simple microcontroller boards like Arduino to more complex industrial PLCs and data acquisition modules.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
