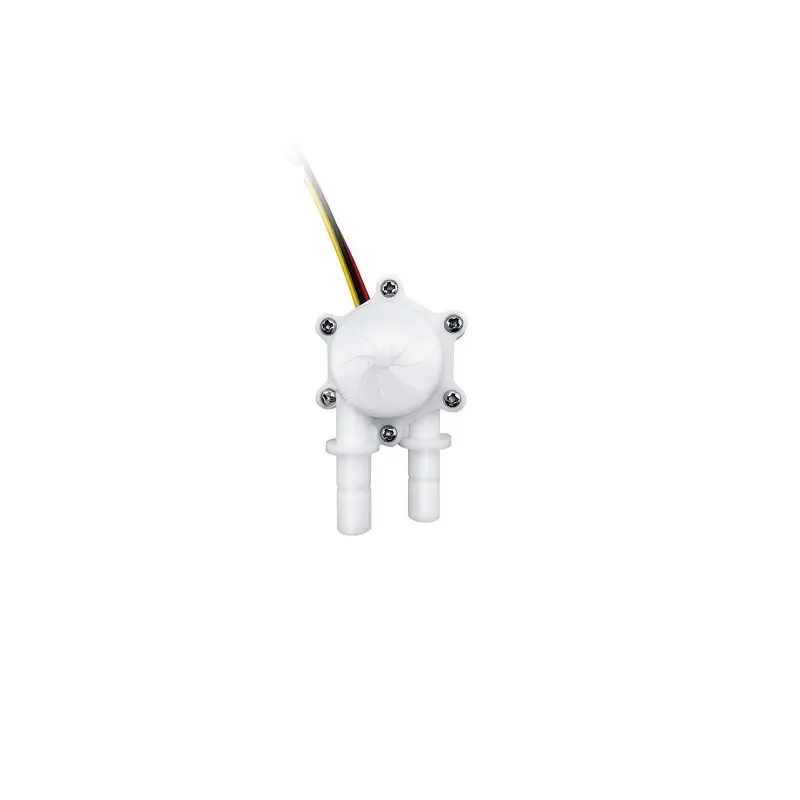

Saier HW83K Water Flow Sensor (0.3–10 L/min, 4.5–18V)
The Saier HW83K Water Flow Sensor is a turbine-based flow meter designed for precise liquid flow rate monitoring from 0.3 to 10 L/min. Compatible with 4.5–18V DC systems, it provides both analog and digital output signals for easy integration into industrial automation, home appliances, and IoT projects.
Features
- Turbine-based flow sensing with 5–8% accuracy for reliable measurement.
- Wide operating voltage range of 4.5–18V DC for flexible system integration.
- Compact design with ≤1.20 MPa pressure rating for easy installation in confined spaces.
- Dual analog/digital output options for versatile control and monitoring applications.
- Durable construction suitable for monitoring both liquids and gases in various environments.
Out of stock
The Saier HW83K employs a precision turbine sensor to measure fluid flow rates. As fluid passes through the sensor chamber, it spins an internal rotor; the rotational speed is converted into a proportional electrical signal, providing accurate flow data. The sensor includes built-in signal conditioning to deliver stable analog or digital output.
Constructed with durable materials, the sensor is rated for working pressures up to 1.20 MPa and features high insulation resistance (>100 MΩ) for safe operation in wet environments. Its low current draw (≤15mA) makes it suitable for battery-powered or low-power embedded systems, including those based on Arduino, Raspberry Pi, or industrial PLCs.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
