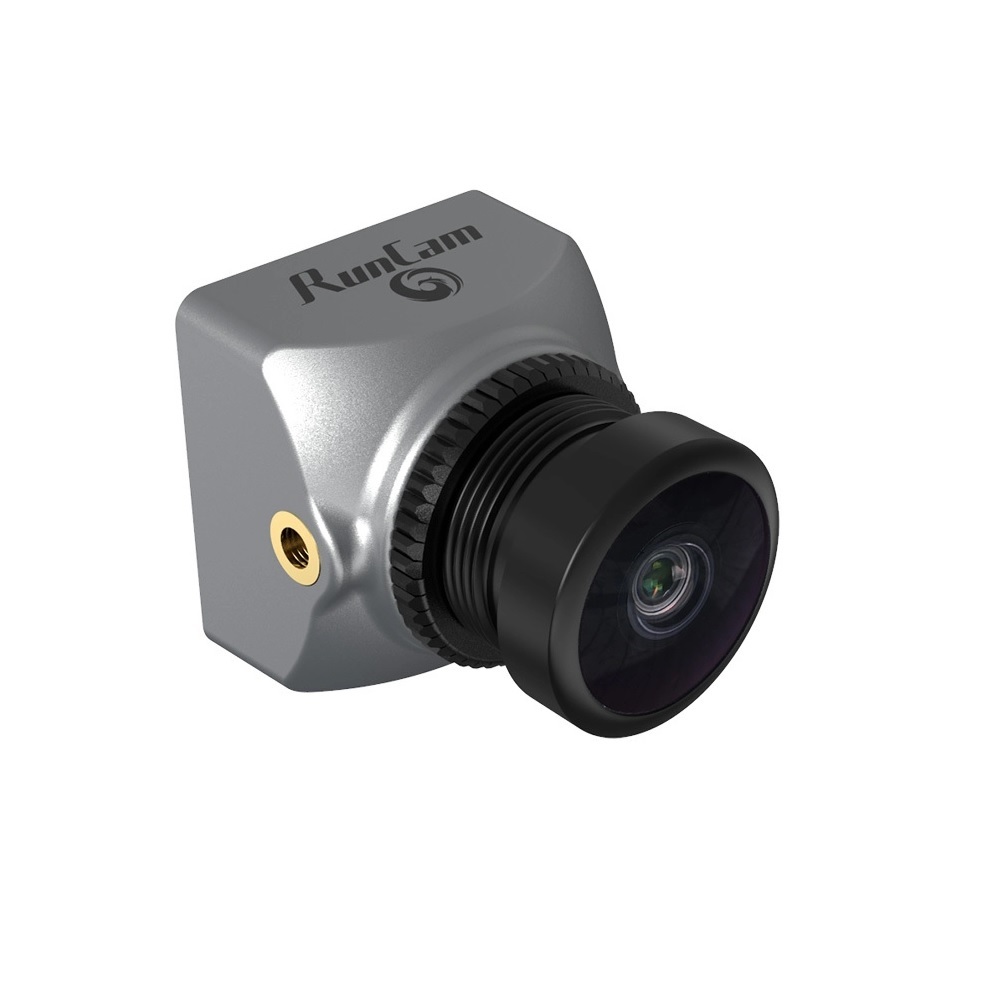

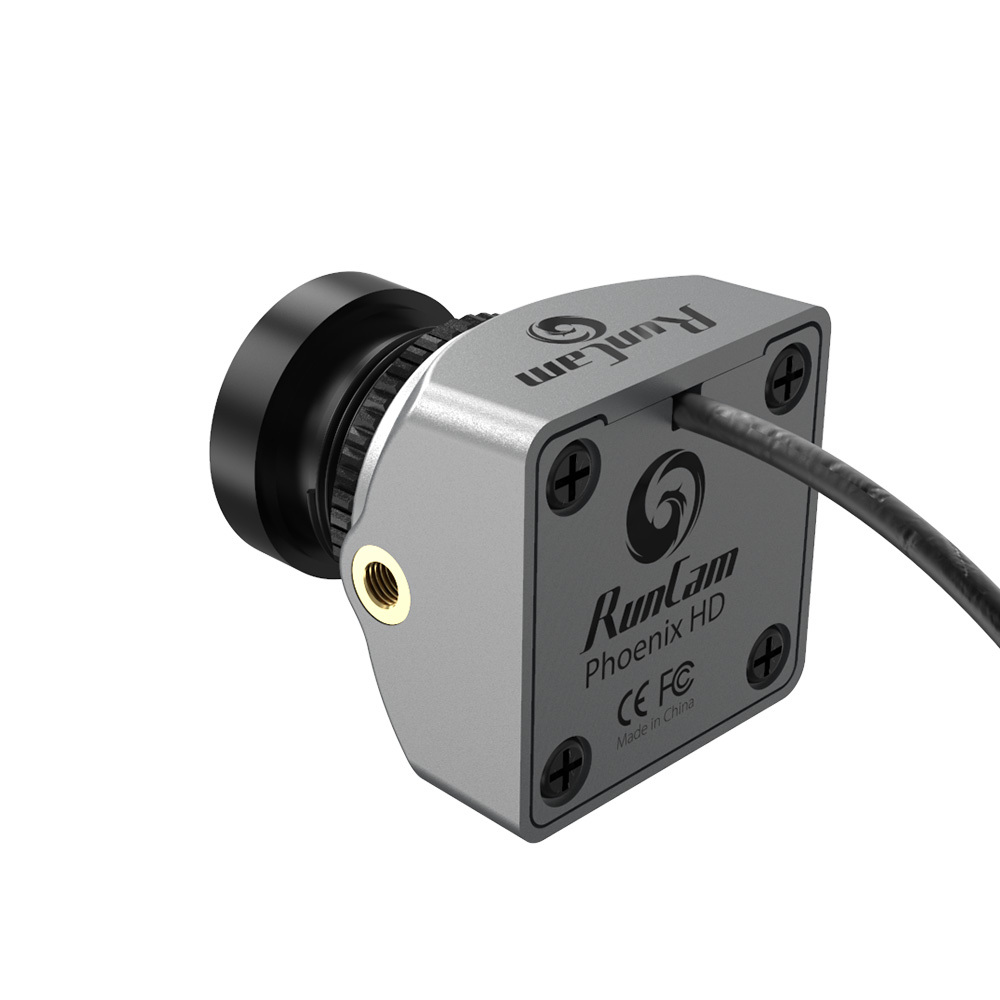

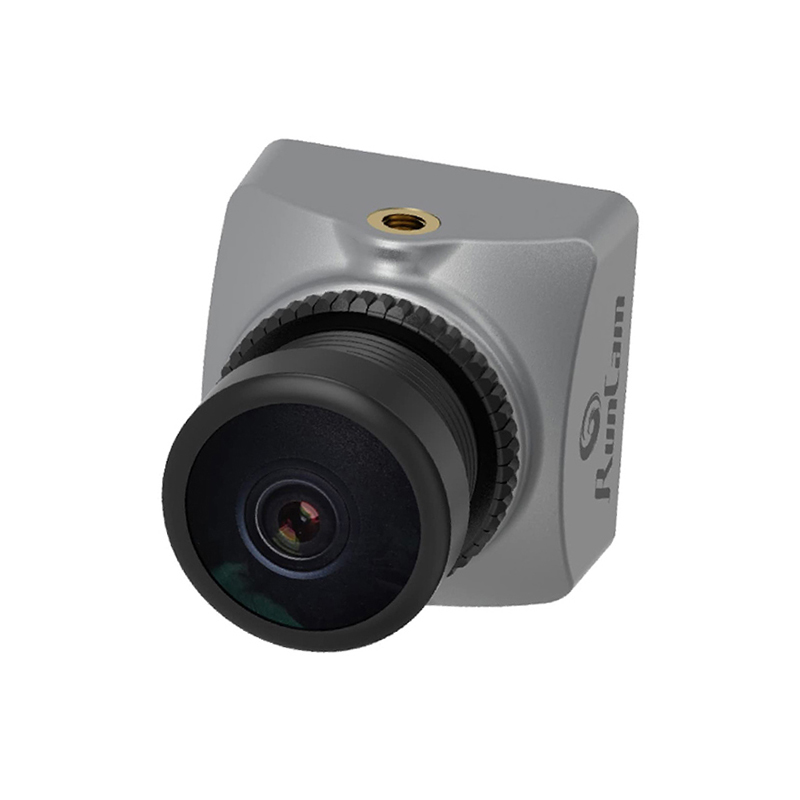

RunCam Phoenix HD Camera with 12 cm Cable

₹4,859.00 (Inclusive of all taxes)
Out of Stock

The RunCam Phoenix HD is a compact FPV camera featuring a 1/2-inch ultra-high-sensitivity sensor for excellent low-light performance, delivering 1280×720 resolution at 60fps with a low 32ms latency, making it ideal for freestyle and cinematic FPV flight.

Features

  • 1/2-inch ultra-high-sensitivity sensor for superior low-light and night vision performance.
  • 1280×720 resolution at 60fps with a low 32ms latency for real-time, responsive flying.
  • Wide 157° diagonal field of view (FOV) for immersive flight perspective.
  • Compact 19x19x23.5mm form factor and lightweight 7.5g design for easy integration.
  • Includes a 12cm (120mm) coaxial cable for direct connection to your video transmitter.

Out of stock

Description

The RunCam Phoenix HD camera is engineered for FPV pilots who demand clarity and performance in varying light conditions. Its 1/2-inch sensor provides an ultra-high sensitivity of up to 10650 mV/Lux-sec, significantly enhancing image detail in dawn, dusk, and low-light environments where other cameras struggle. This makes it a top choice for extended flying sessions and freestyle pilots who encounter diverse lighting.

With a resolution of 1280×720 at 60 frames per second and a rolling shutter, the Phoenix HD delivers smooth, detailed video with a system latency as low as 32ms. This balance of image quality and speed ensures pilots receive a responsive, real-time feed critical for precise acrobatic control and obstacle avoidance. The camera’s robust coaxial cable and compact, durable housing are built to withstand the vibrations and minor impacts typical in FPV flight.

Key Features

  • High-Sensitivity Sensor: 1/2-inch CMOS sensor with exceptional 10650 mV/Lux-sec sensitivity for outstanding performance in low-light and night flying conditions.
  • Low-Latency HD Video: Streams 720p video at 60fps with a total system delay of just 32ms, ensuring real-time control feedback.
  • Ultra-Wide Field of View: 157° diagonal FOV (133° horizontal, 72° vertical) provides an expansive, immersive pilot's view.
  • Compact & Lightweight Build: Measures only 19x19x23.5mm and weighs 7.5g, designed for minimal impact on drone weight and balance.
  • Integrated Coaxial Cable: Pre-attached 12cm (120mm) high-quality coaxial cable simplifies wiring and ensures a reliable video signal connection to your VTX.
  • Durable Construction: Engineered to handle the vibrations and physical stresses common in FPV freestyle and racing applications.

Applications

  • 5-inch and larger FPV freestyle drones requiring high-quality, low-latency video in changing light.
  • Cinematic long-range FPV builds where flight extends into dawn or dusk conditions.
  • Micro and whoop-class drones where the compact size and integrated cable simplify installation.
  • Racing drones where the wide 157° FOV provides crucial situational awareness on tight courses.
  • DIY drone projects and replacements for standard analog FPV camera systems.

Technical Specifications

Model NameRunCam Phoenix HD
Image Sensor1/2-inch CMOS
Resolution1280 x 720 @ 60fps
Sensor SensitivityUp to 10650 mV/Lux-sec
Lens FOV (Diagonal/Horizontal/Vertical)157° / 133° / 72°
Shutter TypeRolling Shutter
System Latency~32ms
Cable12cm (120mm) Coaxial

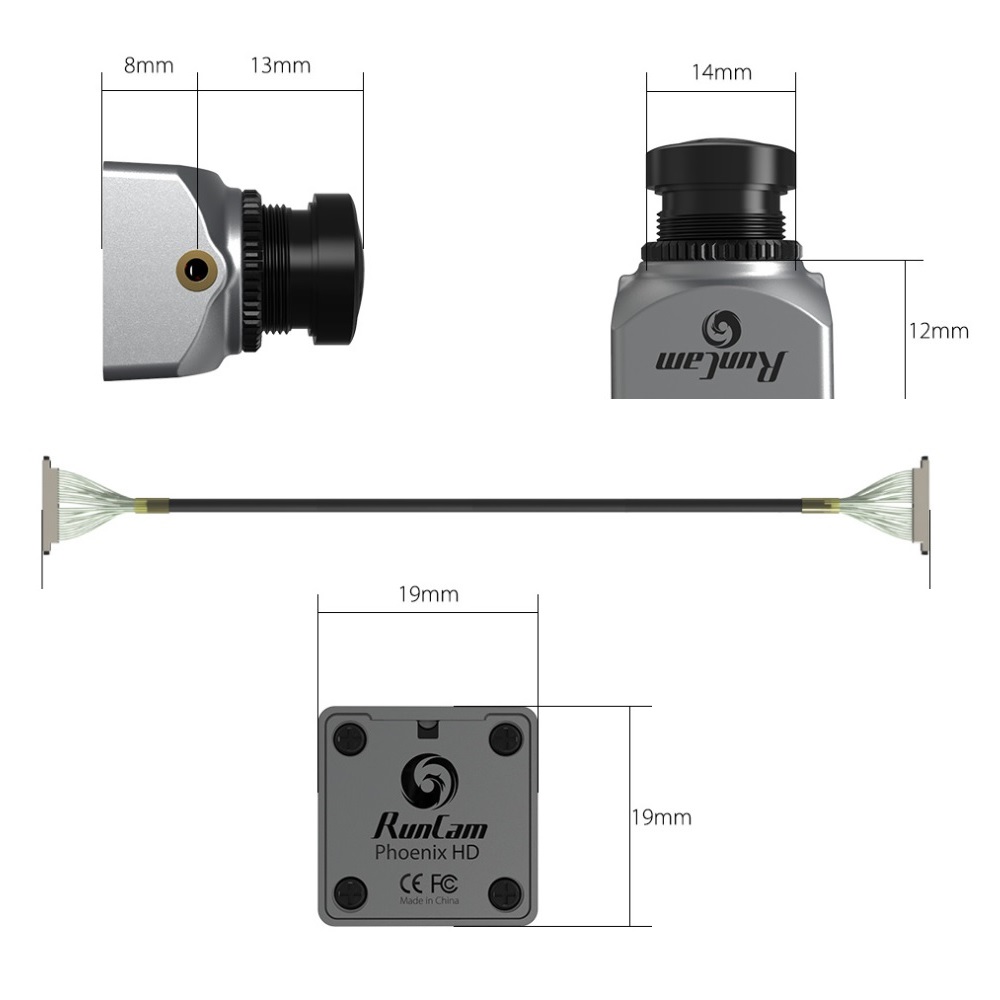

Dimensions (L x W x H)19mm x 19mm x 23.5mm
Net Weight7.5g

Frequently Asked Questions

What is the input voltage range for the RunCam Phoenix HD camera?

The RunCam Phoenix HD typically operates on a standard 5V input, common from most FPV video transmitters or a regulated BEC. Always check your specific VTX or flight controller's camera power output pin to ensure compatibility before connecting.

Is the 12cm cable removable or can I use my own?

The 12cm coaxial cable is integrated into the camera housing and is not designed to be user-removable. For custom wiring lengths, you would need to splice or use an extension connector, ensuring proper impedance matching for the video signal.

How does the Phoenix HD perform in bright sunlight compared to low light?

The Phoenix HD's high-sensitivity sensor excels in low-light conditions, but it also includes automatic gain control and exposure settings to handle bright sunlight. For optimal performance in extreme contrast, you may need to adjust your video transmitter's settings or use an ND filter.

What is the compatible video signal format and connector type?

The Phoenix HD outputs a standard analog NTSC/PAL video signal via its integrated coaxial cable. The cable end typically has a bare wire or a JST-style connector that mates directly with common video transmitter (VTX) inputs. Verify your VTX's input connector type before installation.

Package Includes

  • 1 x RunCam Phoenix HD Camera with 12 cm Cable

Additional Information

Weight 0.0075 kg
Dimensions 1.9 × 1.9 × 2.35 cm
