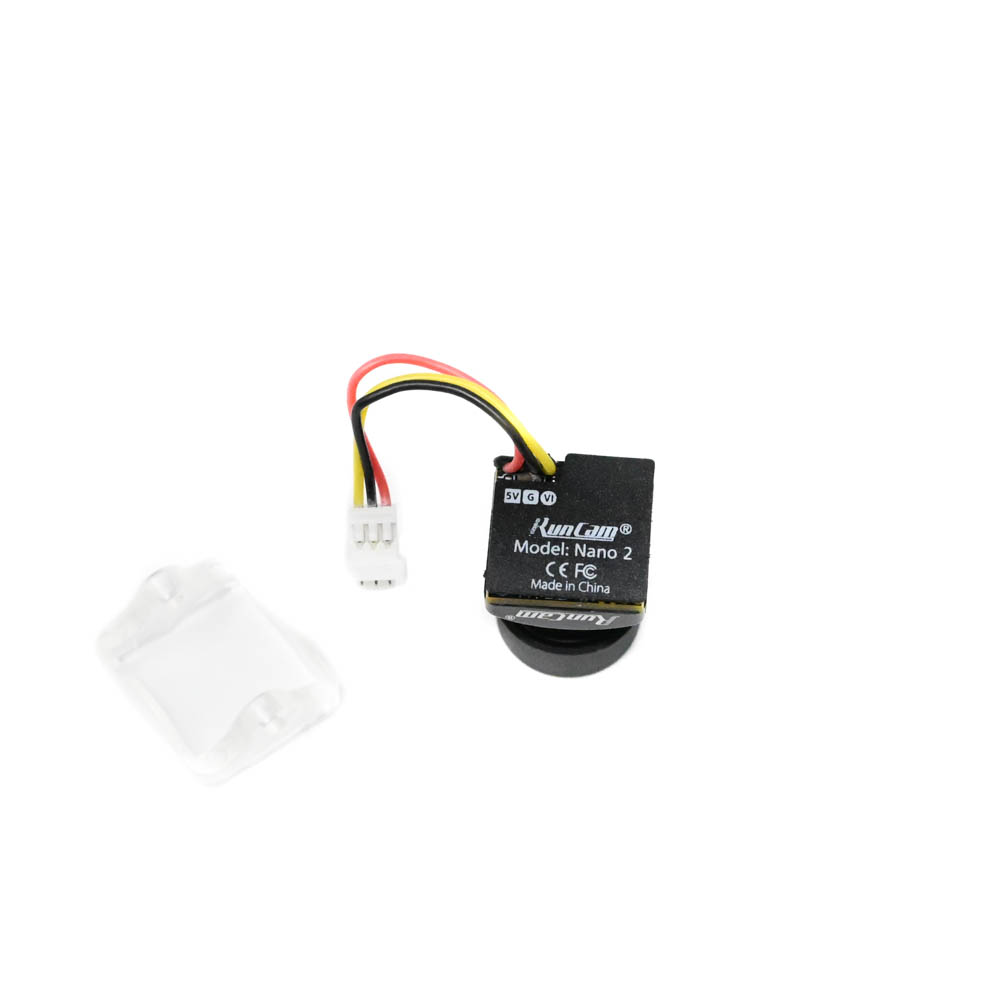

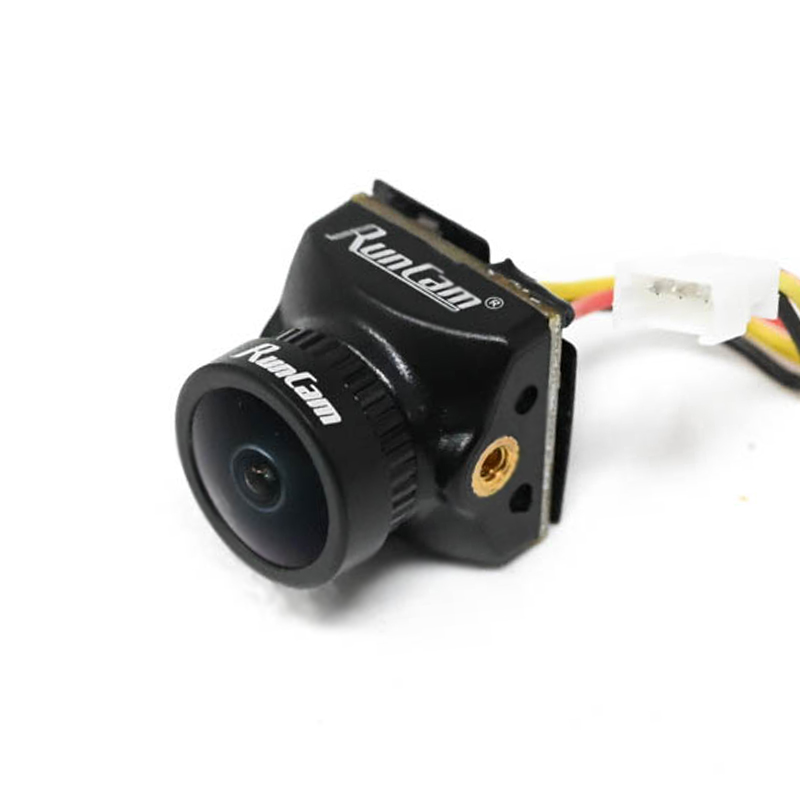

RunCam Nano 2 700TVL FPV Camera 2.1mm Lens

Name: RunCam Nano 2 700TVL FPV Camera 2.1mm Lens
Brand: RunCam
SKU: DRFC-2309
Price: 2129.00 INR
Availability: OutOfStock

₹2,129.00 (Inclusive of all taxes)

Out of Stock

The RunCam Nano 2 is a 700TVL CMOS FPV camera featuring a 2.1mm lens with a 155° FOV, designed for 3-5.5V operation and compatibility with both PAL and NTSC video systems for integration into compact FPV drones and micro builds.

Features

700TVL horizontal resolution for clear analog video feed.
Ultra-compact 14x14x16mm form factor with lightweight 3.5g ABS housing.
Wide 155° field of view via fixed 2.1mm M8 threaded lens.
Low-light capable 1/3″ CMOS sensor with 0.01Lux minimum illumination.
Wide 3-5.5V input voltage range compatible with most FPV drone power systems.

Out of stock

Get Notified When Available

Description

The RunCam Nano 2 is engineered as a micro-sized analog FPV camera, utilizing a 1/3″ CMOS image sensor to deliver a 700TVL video signal. Its compact 14x14x16mm dimensions and minimal weight make it ideal for tight builds where space and mass are critical constraints, such as micro racing drones and CineWhoops.

Operating on a 3-5.5V DC input, the camera integrates seamlessly with standard 5V BEC outputs from flight controllers or video transmitters. The fixed 2.1mm lens provides a wide 155-degree field of view, offering pilots expansive situational awareness during high-speed flight. The sensor’s high signal-to-noise ratio (>50dB) and automatic gain control contribute to a stable, low-noise video output in varying lighting conditions.

Key Features

High-Resolution Sensor: 1/3" CMOS sensor delivers 700TVL clarity for detailed analog video.
Ultra-Compact Housing: Precision-molded ABS housing measures just 14x14x16mm for installation in confined spaces.
Wide-Angle Lens: Fixed 2.1mm M8 threaded lens with a 155° diagonal field of view.
Low-Light Performance: Enhanced sensitivity down to 0.01Lux@F1.2 for flying in dawn, dusk, or shaded environments.
Broad Voltage Compatibility: 3-5.5V operational range supports direct connection to 5V regulated pads or 1S LiPo setups.
Dual Video Standard Support: Outputs both PAL and NTSC signal formats for global compatibility with goggles and monitors.
Lightweight Construction: Total assembly weight of only 3.5 grams minimizes impact on drone flight dynamics.

Applications

Ultra-lightweight micro and nano FPV drone builds (65mm-75mm whoops).
Compact 3-inch and 2.5-inch FPV freestyle and racing quadcopters.
Tiny whoop (CineWhoop) builds requiring minimal front-end weight.
FPV drone builds where space is extremely limited behind the duct or frame.
Secondary onboard camera for HD digital system drones requiring a live analog feed.

Technical Specifications

Item Type	FPV Camera
Brand	RunCam
Model	Nano 2
Horizontal Resolution	700 TVL
Image Sensor	1/3" CMOS
Lens	2.1mm, M8 Thread
Field of View (FOV)	155°
Signal System	PAL / NTSC (Non-Switchable)
Supply Voltage	DC 3-5.5V
Min. Illumination	0.01 Lux @ F1.2
S/N Ratio	>50 dB
Auto Gain Control (AGC)	Auto
Housing Material	ABS
Dimensions (L x W x H)	14 x 14 x 16 mm
Weight	3.5 g

Frequently Asked Questions

What is the input voltage range for the RunCam Nano 2?

The RunCam Nano 2 operates on a wide 3-5.5V DC input. This makes it directly compatible with standard 5V regulated outputs from most flight controllers and video transmitters, as well as 1S LiPo battery configurations common in micro drone builds.

Can I switch between PAL and NTSC video formats on this camera?

No, the RunCam Nano 2 outputs a fixed video signal format. Individual camera units are manufactured for either PAL or NTSC standard. You must select the correct version for your specific video receiver or goggles during purchase.

What size drone is the RunCam Nano 2 designed for?

Its ultra-compact 14x14x16mm size and 3.5g weight make it specifically designed for the smallest FPV drone formats. It is an ideal choice for micro and nano builds, including Tiny Whoops, 65mm-75mm drones, and other space-constrained 3-inch or smaller quadcopters.
