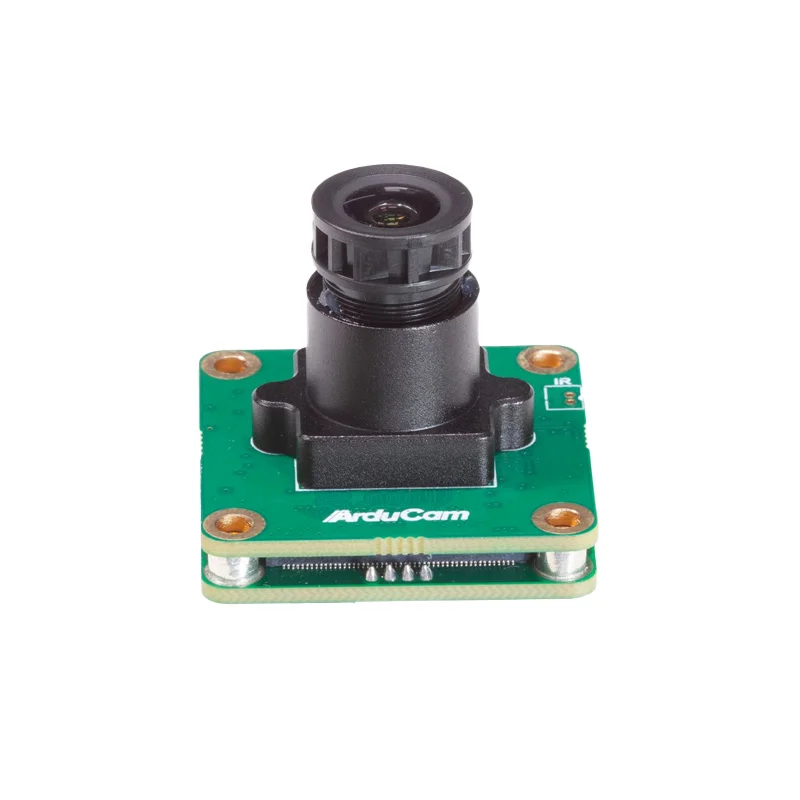

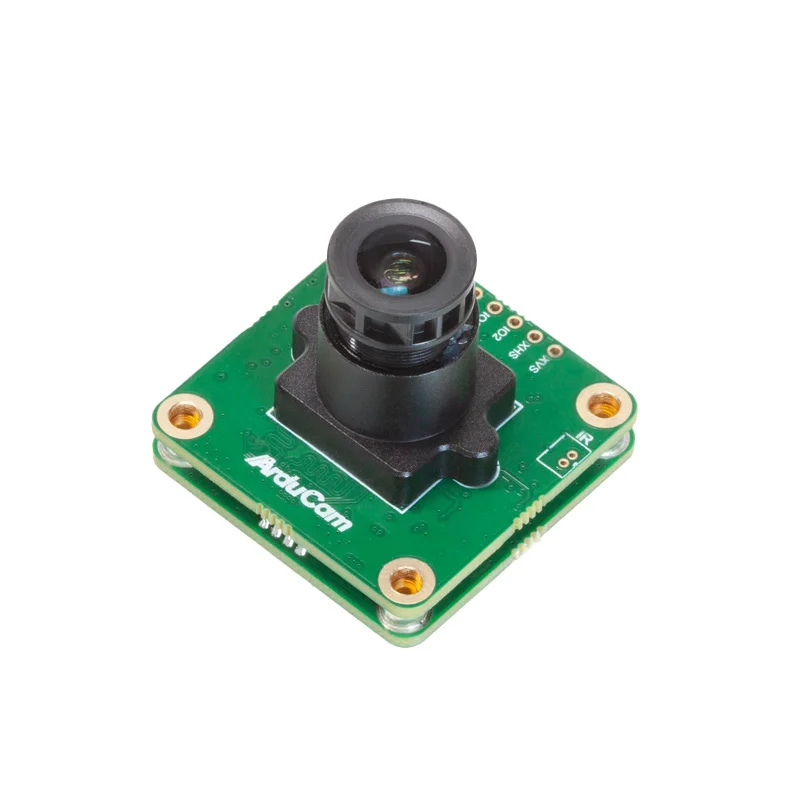

Arducam B0587 IMX678 STARVIS 2 4K USB Camera

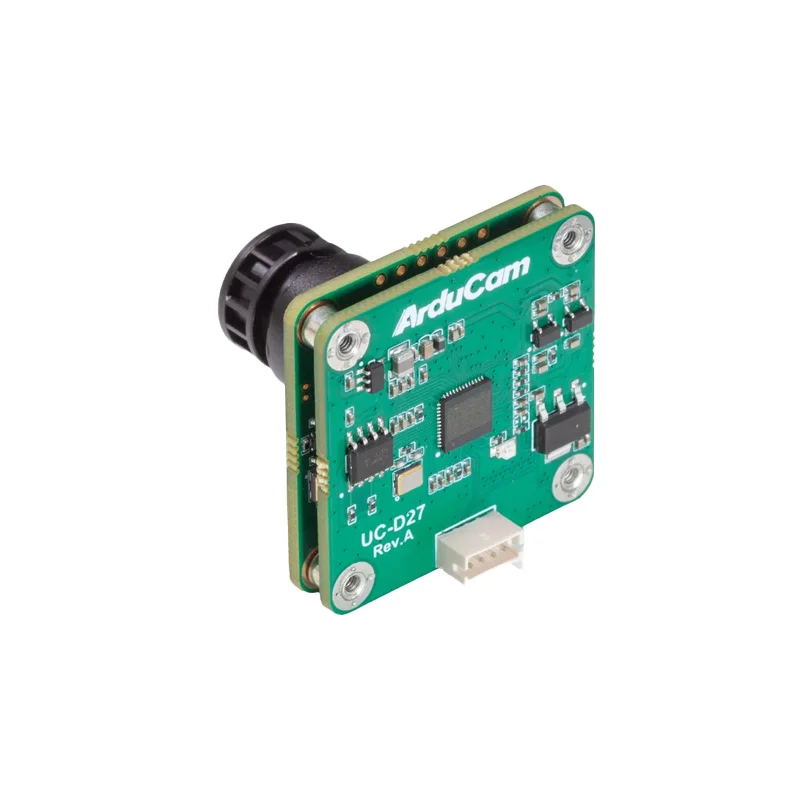

Arducam B0587 IMX678 STARVIS 2 4K USB Camera - Image 2
Arducam B0587 IMX678 STARVIS 2 4K USB Camera - Image 3
Arducam B0587 IMX678 STARVIS 2 4K USB Camera - Image 4
SKU: IOWC-0248
📋 GST Invoice Available

Arducam B0587 IMX678 STARVIS 2 4K USB Camera

₹11,079.00 (Inclusive of all taxes)
Out of Stock

Arducam B0587 is an 8.3MP USB camera module featuring the Sony STARVIS 2 IMX678 sensor, delivering 4K resolution and exceptional low-light performance for surveillance and vision applications. It offers UVC-compliant plug-and-play operation via USB 2.0 across Windows, Linux, Mac, and Android platforms.

Features

  • Sony STARVIS 2 IMX678 Sensor: 8.3MP resolution delivers crisp 4K (3840×2160) video at 25fps, optimized for superior clarity in low-light and near-darkness conditions.
  • Plug-and-Play USB 2.0 UVC: No drivers required for instant compatibility with Windows, Linux, Mac, and Android systems, simplifying deployment.
  • Wide-Angle M12 Lens: Pre-installed fixed-focus lens provides a 100° diagonal field of view for broad scene coverage, with a focus range from 3 meters to infinity.
  • Low Power Consumption: Operates on a standard 5V supply with just 1.2W power draw, suitable for continuous USB-powered applications.
  • Versatile Output Formats: Supports MJPG and YUV formats across multiple resolutions and frame rates, including 1080p at 60fps for flexible streaming.

Out of stock

Description

The Arducam B0587 USB Camera Module integrates Sony’s latest STARVIS 2 IMX678 back-illuminated CMOS sensor, engineered specifically for high-sensitivity imaging in challenging lighting. This 8.3-megapixel sensor provides native 4K video output with a pixel size of 2.0µm, capturing detailed footage even in near-total darkness, making it ideal for security, surveillance, and night vision systems.

Designed for seamless integration, the module features a UVC-compliant USB 2.0 interface, ensuring true plug-and-play functionality without the need for custom drivers on most operating systems. The unit comes with a pre-mounted M12 lens offering a wide 100° diagonal field of view, fixed focus, and an integrated 650nm IR filter for visible-light-only capture. Its compact 34x34mm form factor and low 1.2W power consumption allow for easy embedding into various IoT and edge computing devices.

Key Features

  • High-Sensitivity STARVIS 2 Sensor: Sony IMX678 8.3MP CMOS sensor delivers exceptional 4K image quality with outstanding signal-to-noise ratio in low-light conditions.
  • Universal UVC USB 2.0 Compliance: Ensures broad compatibility and effortless setup across Windows, Linux, macOS, and Android hosts without additional drivers.
  • Fixed-Focus Wide-Angle Optics: Pre-installed M12 lens with 4.9mm focal length provides a 100° diagonal FOV, optimized for surveillance and monitoring applications.
  • Multi-Format Video Streaming: Supports MJPG and YUV output formats with configurable resolutions from 4K@25fps down to 96x96@30fps for AI and computer vision tasks.
  • Low-Power, Compact Design: Operates from a single 5V USB bus power, consuming only 1.2W, housed in a minimal 34x34mm board for space-constrained installations.
  • Robust Operating Range: Functions reliably in temperatures from 0°C to 70°C, suitable for both indoor and controlled outdoor environments.

Applications

  • Surveillance & Security Systems: High-quality 4K night vision cameras for home, commercial, or industrial monitoring.
  • Low-Light Vision Applications: Machine vision and inspection tasks in dimly lit factory or laboratory environments.
  • USB-Powered IoT Devices: Embedded vision for robotics, drones, or smart home appliances requiring plug-and-play camera feeds.
  • Edge AI & Computer Vision: Source sensor for object detection, people counting, or activity recognition algorithms running on SBCs or edge servers.
  • Video Conferencing & Streaming: High-resolution webcam for professional streaming, telemedicine, or remote collaboration setups.

Technical Specifications

Image SensorSony STARVIS 2 IMX678 (8.3MP)
Max Resolution & Frame Rate3840x2160 (4K) @ 25fps
Output FormatsMJPG, YUV
Lens TypeFixed-focus M12, 4.9mm focal length
Field of View (Diagonal)100°
Focus Range3m to Infinity
IR FilterIntegrated 650nm (visible light only)
InterfaceUSB 2.0 UVC (B4B-ZR JST connector)
Supply Voltage5.0V DC
Power Consumption1.2W
Operating Temperature0°C to 70°C
Dimensions (L x W)34mm x 34mm
Weight10g

Frequently Asked Questions

What operating systems are compatible with this Arducam USB module?

The camera is fully UVC-compliant over USB 2.0, providing native plug-and-play support without additional drivers on Windows (7/10/11), Linux (using V4L2), macOS, and Android. For advanced control or custom resolutions, you may use platform-specific APIs like OpenCV or libusb.

How do I connect and power the Arducam B0587 camera module?

Connect the provided JST-to-USB cable from the module's B4B-ZR connector to a host computer's USB 2.0 (or higher) port. The module draws 5V power directly from the USB bus, with a typical consumption of 1.2W. Ensure your host port can supply at least 500mA for stable 4K streaming.

Can the fixed-focus M12 lens be replaced or adjusted?

The lens is pre-installed and fixed-focus, set for a range from 3 meters to infinity. It uses a standard M12x0.5 thread mount, allowing replacement with other M12 lenses if required, though recalibration for focus and field of view would be necessary.

What software can I use to capture video streams from this camera?

Use any UVC-compatible software like OBS Studio, VLC, or built-in camera apps. For development, integrate with OpenCV (cv2.VideoCapture), GStreamer, or Python's picamera library on Linux. The camera outputs MJPG and YUV formats selectable via UVC controls.

What are the key specifications for low-light performance?

The Sony STARVIS 2 IMX678 sensor features a 2.0µm pixel size and back-illuminated structure, providing high sensitivity and low noise in dim light. The integrated 650nm IR filter ensures visible-light accuracy. Optimal performance is achieved in scenes above 0.1 lux, suitable for night vision applications.

Package Includes

  • 1 x Arducam B0587 IMX678 STARVIS 2 4K USB Camera Module

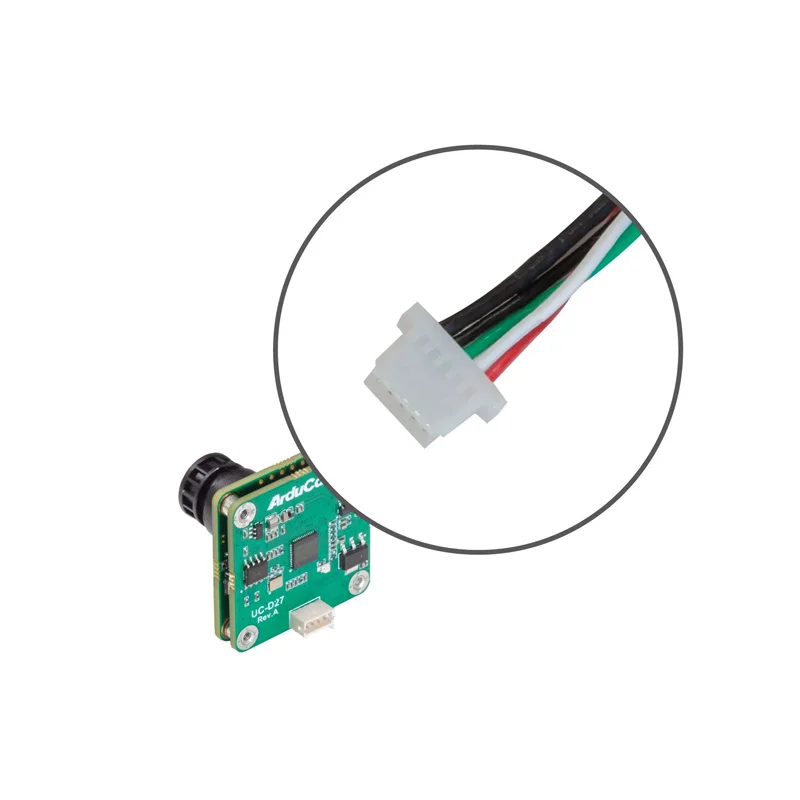

  • 1 x 1m USB2 to B4B-ZR JST Cable

Additional Information

Weight 0.01 kg
Dimensions 3.4 × 3.4 cm

Related Products

Out of Stock

Arducam B0597 12.3MP IMX577 Mini Camera Module for DepthAI

7,139.00
Learn More
Out of Stock

Arducam LN083 3.7mm Wide Angle M12 Lens for OS08A10/OS08A20

3,239.00
Learn More
Out of Stock

Arducam LN079 5.5mm F2.8 Low Distortion M12 Lens for OS08A10/OS08A20

6,669.00
Learn More
Out of Stock

Waveshare IMX335 5MP USB Camera (B) w/ 2K Video & M12 Lens

4,389.00
Learn More
Out of Stock

Waveshare IMX290 2MP Camera Module (A) for Raspberry Pi

5,769.00
Learn More
Out of Stock

Arducam LN001 16mm Focal Length M12 Mount Camera Lens

889.00
Learn More
Out of Stock

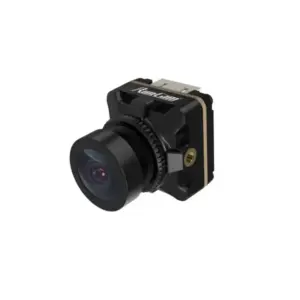

RunCam Phoenix 2 Special Edition V2 FPV Camera
