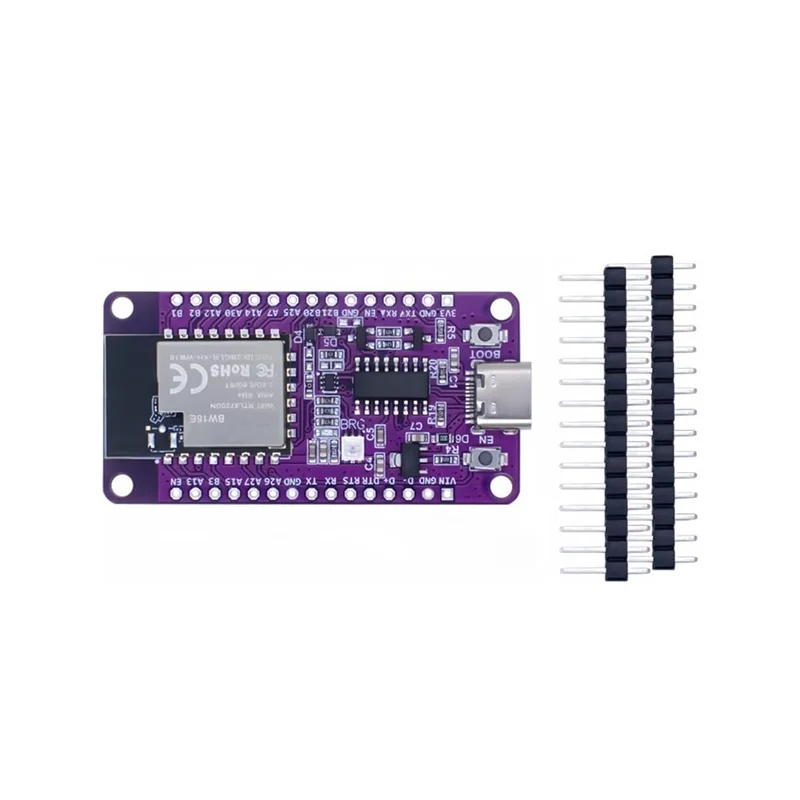

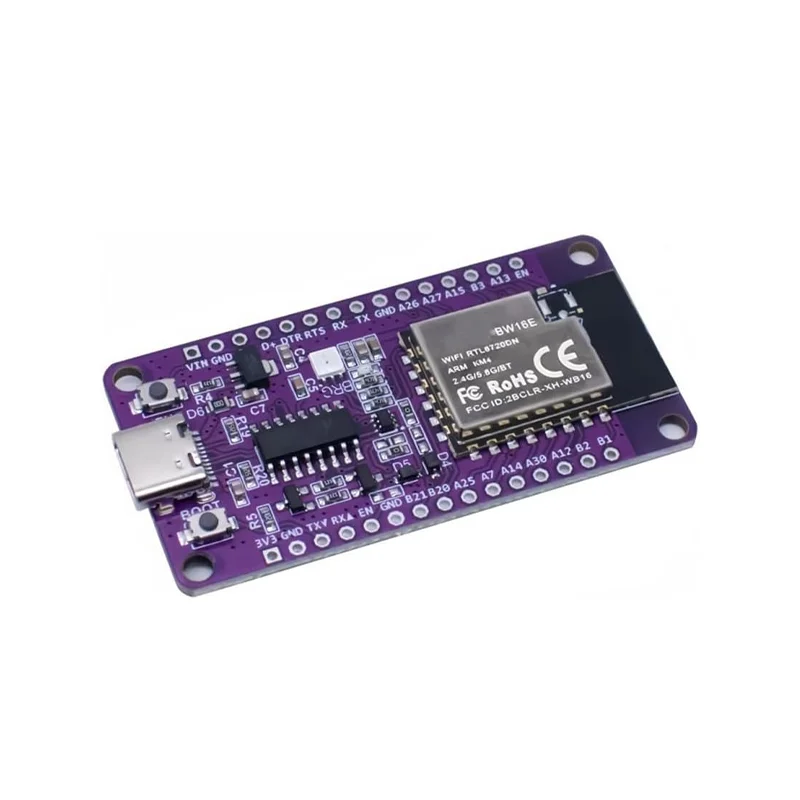

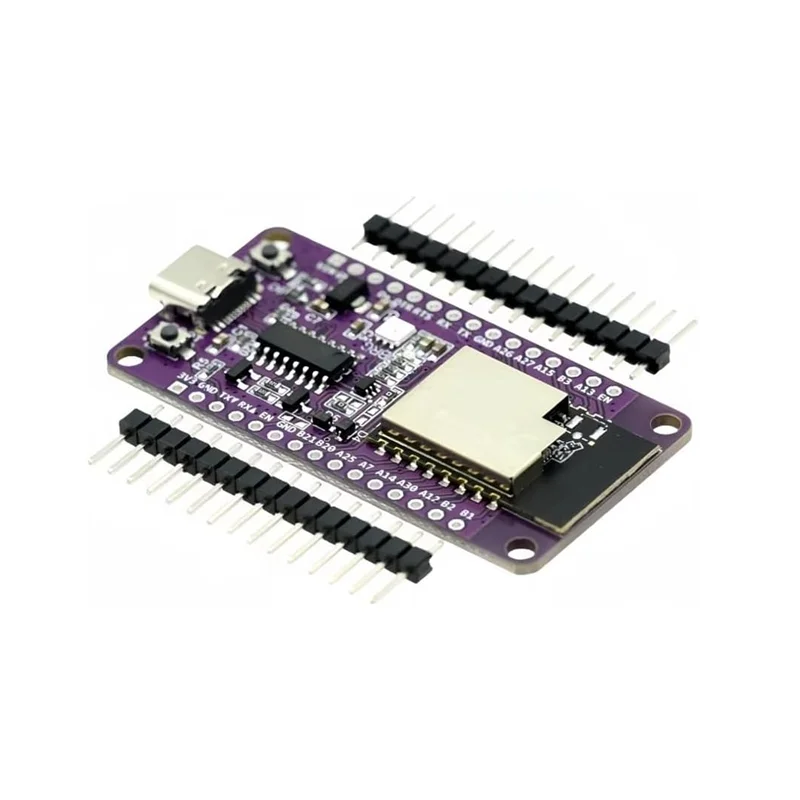

RTL8720DN NICEMCU BW16E Dual-Band WiFi BLE 5.0 Development Board
The NICEMCU BW16E is a NodeMCU-style development board built around the RTL8720DN SoC, offering dual-band 2.4/5GHz Wi-Fi and Bluetooth 5.0 BLE connectivity. Powered by a dual-core ARM V8 MCU, it’s compatible with Arduino IDE and designed for low-power IoT and smart home applications.
Features
- Dual-band Wi-Fi (2.4GHz & 5GHz) and Bluetooth 5.0 BLE via the RTL8720DN SoC.
- Dual-core ARM V8 MCU (M4F + M0) for high-performance and low-power operation.
- NodeMCU-compatible pinout with accessible GPIO, UART, SPI, ADC, and PWM interfaces.
- Onboard solderless PCB antenna for immediate out-of-the-box wireless functionality.
- Supports Arduino development and features an onboard RGB LED for system status indication.
Out of stock
The NICEMCU BW16E Development Board integrates the RTL8720DN wireless SoC, providing robust dual-band Wi-Fi (802.11 a/b/g/n) and Bluetooth Low Energy 5.0 connectivity in a compact, prototyping-friendly form factor. Its dual-core ARM V8 architecture pairs a high-performance Cortex-M4F core with an ultra-low-power Cortex-M0 core, enabling efficient power management for battery-operated IoT nodes.
The board features a standard NodeMCU layout, granting developers easy access to a full suite of interfaces including multiple UARTs, SPI, I2C, ADC channels, and PWM outputs. The integrated solderless PCB antenna simplifies deployment, while the 4MB flash memory provides ample space for application code and file systems. Its 5V DC power requirement and wide operating temperature range make it suitable for diverse embedded environments.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 5.5 × 2.7 cm |
