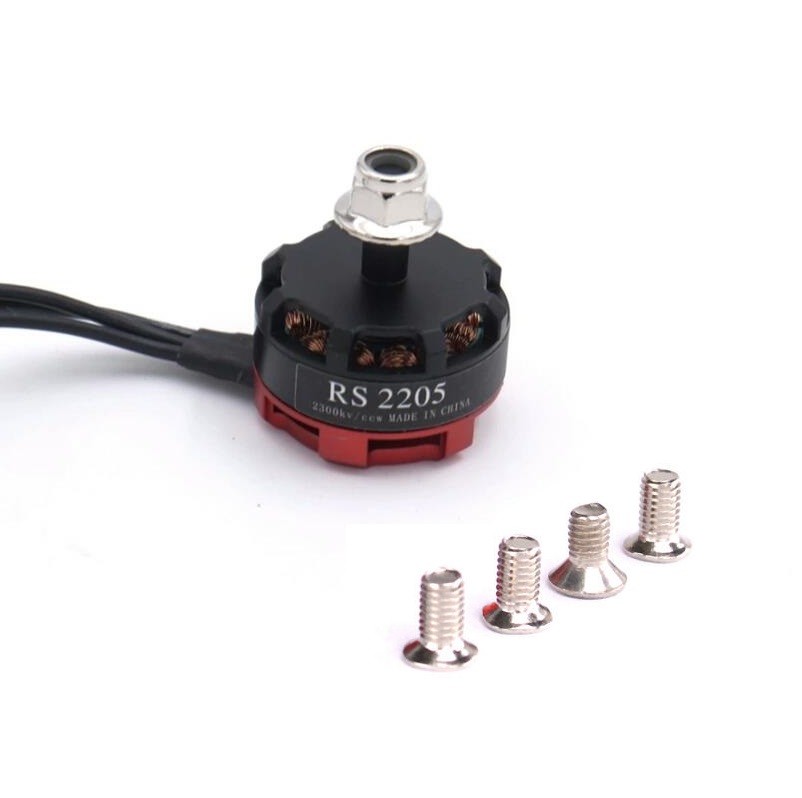

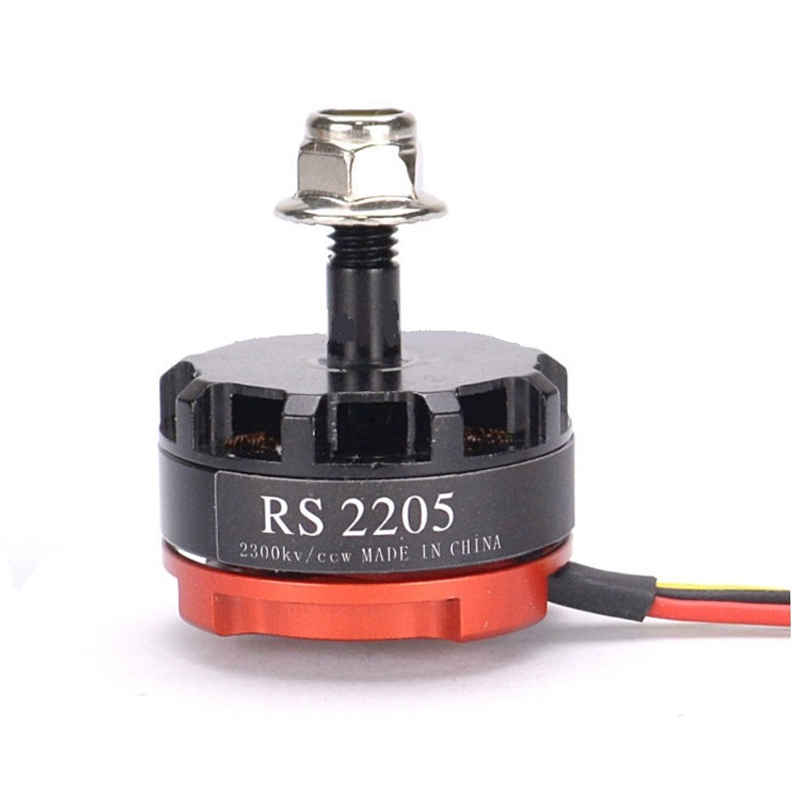

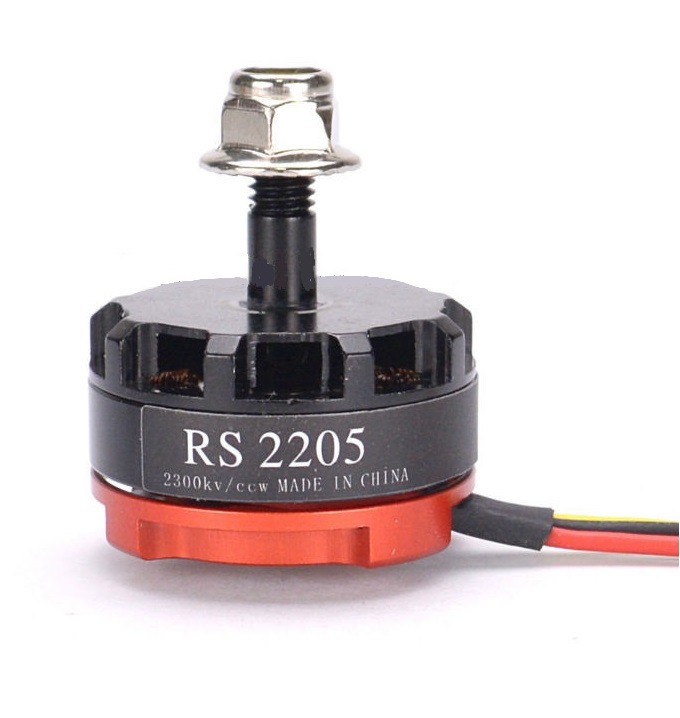

RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter - Silver Cap (CCW Rotation)
The RS2205 2300KV brushless motor is engineered for high-performance 5-inch FPV racing drones, compatible with 3S to 4S LiPo batteries and requiring 30-40A ESCs. Its active cooling design and N52 neodymium magnets deliver reliable thrust for competitive and freestyle builds.
Features
- 2300KV rating optimized for 3S-4S LiPo power systems and 5-inch propellers.
- Active cooling fins integrated into the bell structure reduce operational temperatures by up to 30%.
- High-grade N52 neodymium magnets and Japanese NMB bearings ensure smooth, efficient power delivery.
- 5mm steel shaft and CCW (Counter-Clockwise) thread pattern for secure propeller mounting.
- Compact 27.9mm stator and lightweight 30g design for agile flight performance on 250-300mm frames.
Out of stock
The RS2205 2300KV brushless motor is a core component for 5-inch FPV racing and freestyle quadcopters. Its 12N14P electromagnetic design, paired with a 2300KV winding, provides a balanced torque-to-RPM ratio, generating up to 1024 grams of thrust on 4S power. This makes it ideal for high-speed maneuvers and rapid throttle response in competitive environments.
Constructed with durability in mind, the motor features a unique bell design with integrated cooling fins. This passive airflow system actively draws air across the stator coils during operation, significantly reducing heat buildup and extending the motor’s lifespan under continuous high-load conditions. The combination of premium N52 magnets and precision Japanese bearings minimizes rotational friction and magnetic losses, contributing to overall system efficiency.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 2.79 × 2.79 cm |
