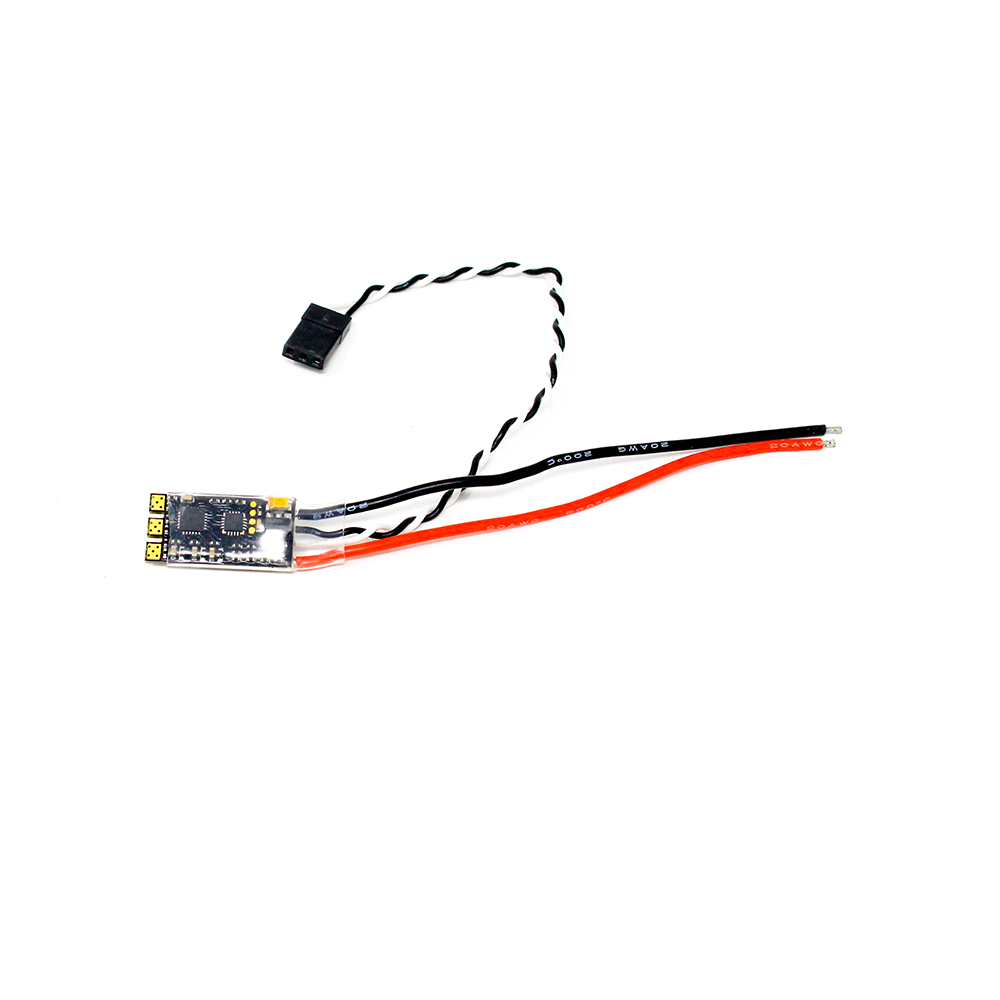

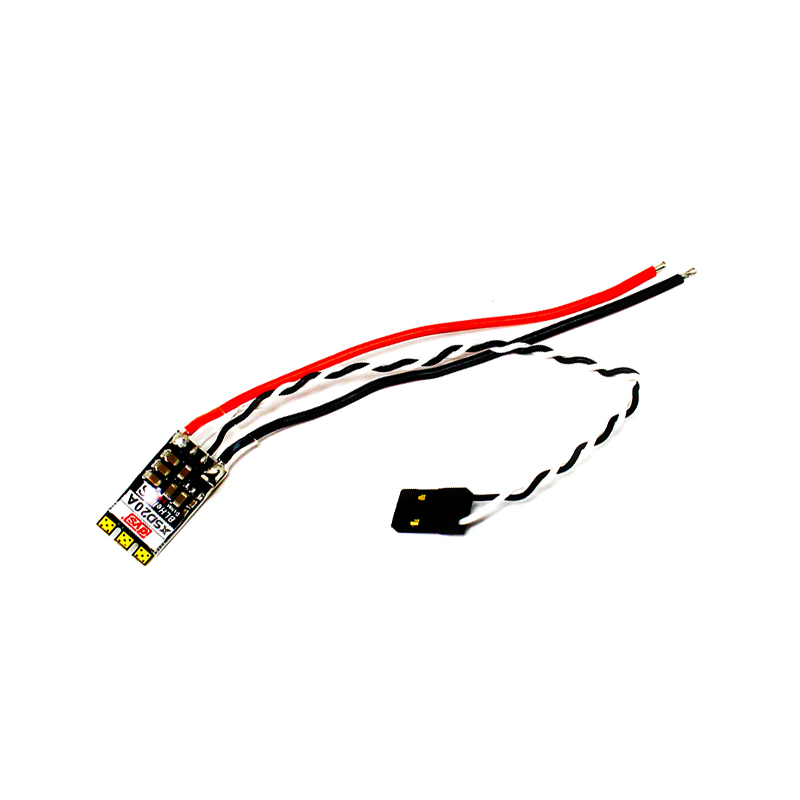

DYS 20A BLHeli_S DShot Brushless ESC
The DYS 20A BLHeli_S DShot Brushless ESC is a compact and responsive speed controller, specifically engineered for FPV racing and freestyle drone applications. It supports 2-4S LiPo input and features BLHeli_S firmware with DShot300/600 compatibility, ensuring precise motor control and excellent flight performance.
Features
- High-performance Silabs EFM8BB21 50MHz MCU for rapid throttle response.
- Supports BLHeli_S firmware with DShot300 and DShot600 digital protocols.
- Continuous 20A current output, handling bursts up to 25A for 10 seconds.
- Compatible with 2-4S LiPo batteries, suitable for various FPV drone builds.
- Compact dimensions (25x15x4mm) for easy integration into tight frames.
Out of stock
This DYS XSD20A ESC is engineered for optimal performance in FPV racing and freestyle drones. Leveraging a high-performance Silabs EFM8BB21 microprocessor running at 50MHz, it delivers exceptionally smooth and precise motor control with high-resolution throttle steps. The advanced hardware architecture ensures rapid signal processing, crucial for the dynamic demands of aggressive flight maneuvers.
Pre-flashed with BLHeli_S firmware, this ESC supports the efficient DShot300 and DShot600 digital protocols. DShot bypasses the need for traditional ESC calibration, providing a more robust and noise-resistant signal path from the flight controller to the motor. This results in superior synchronization and reduced latency, enhancing overall flight stability and responsiveness. The robust 12-FET design ensures reliable power delivery and efficient thermal management under strenuous flight conditions.
Additional Information
| Dimensions | 2.5 × 1.5 × 0.4 cm |
|---|
