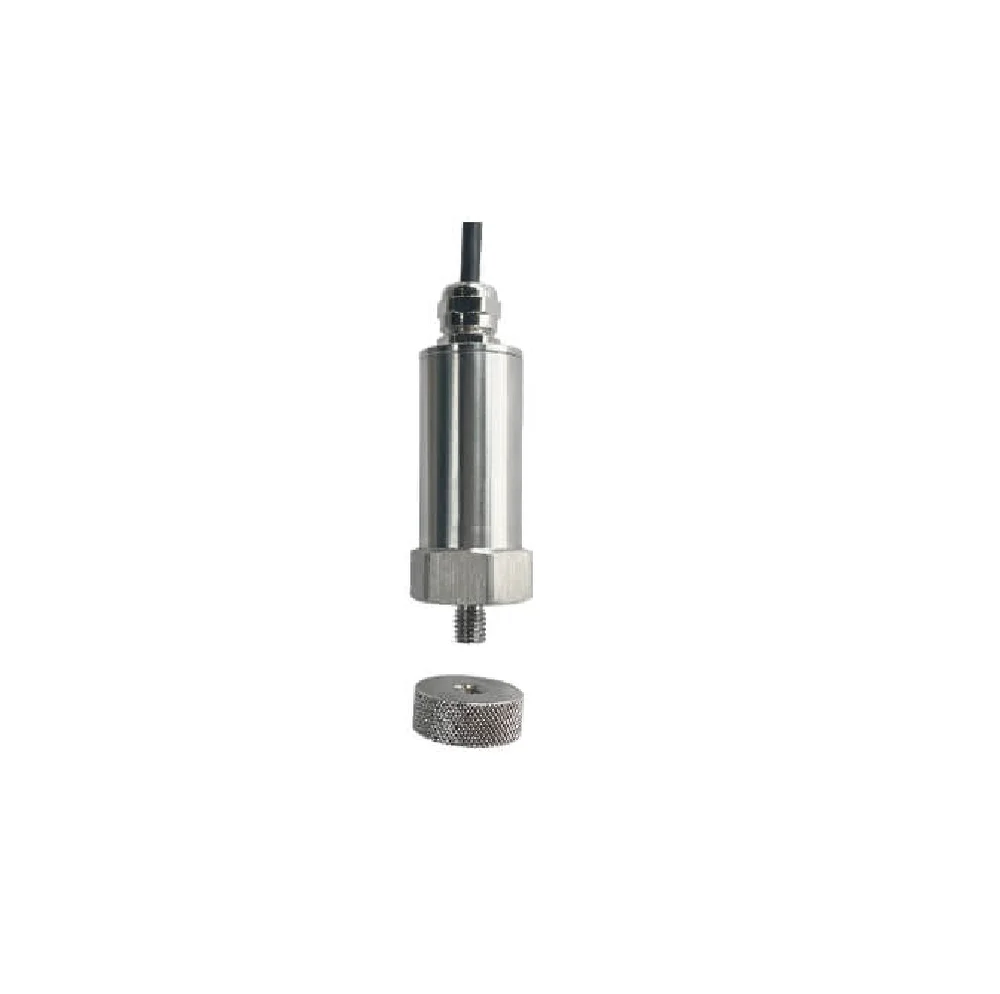

Renke RS-WZ3-N01-1-CX Industrial Vibration Sensor RS485 IP67 Stainless Steel

The sensor communicates via a standard RS485 interface using the Modbus RTU protocol. It requires a 2-wire connection (A/B or +/-) for the data line, plus power (10-30V DC) and ground. The specific register map for reading vibration velocity (X, Y, Z axes) and other parameters is provided in the manufacturer's datasheet.

No, this sensor is specifically designed to output vibration velocity in mm/s. To obtain displacement or acceleration, post-processing of the velocity signal is required through integration or differentiation, respectively, within your data acquisition or control system software.

The sensor should be firmly mounted directly to the measurement point on the machinery using its threaded base or an adhesive mount. For reliable high-frequency data, ensure a rigid, clean, and flat surface. The mounting torque and method can affect the sensor's resonant frequency, so follow the installation guidelines in the technical manual.

Using standard shielded twisted-pair cable, the RS485 bus can reliably extend up to 1200 meters at a baud rate of 9600. For longer distances or noisier environments, lower baud rates or the use of RS485 repeaters may be necessary. Always use proper termination resistors at the bus ends.
