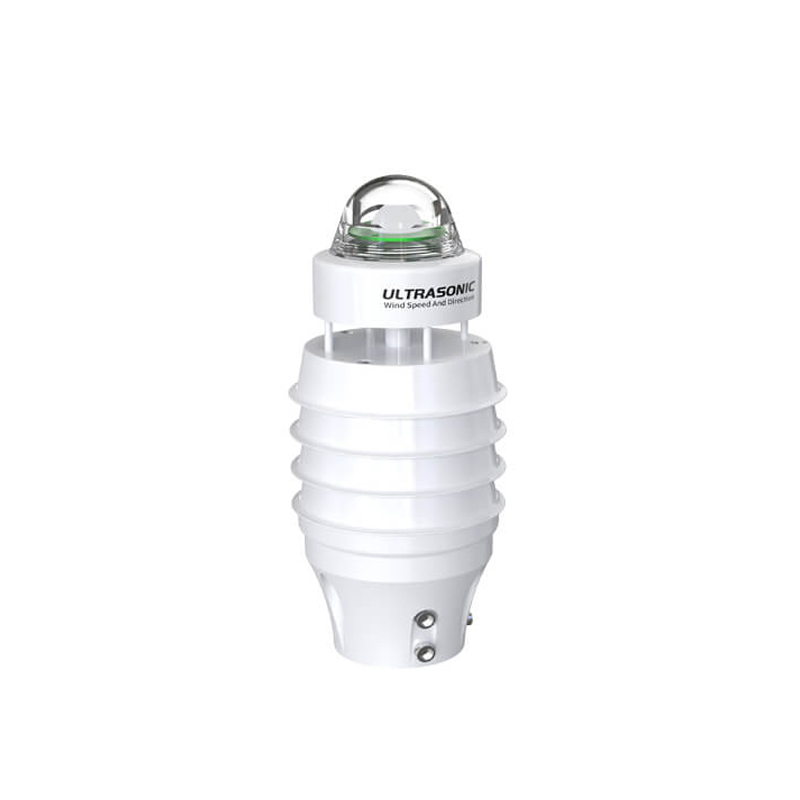

Renke RS-FSXCS-N01-3HP-EX Ultrasonic Integrated Weather Station - RS485 Modbus
The Renke RS-FSXCS-N01-3HP-EX is a compact, multi-parameter ultrasonic weather station integrating wind speed, wind direction, temperature, humidity, rainfall, solar radiation, and atmospheric pressure sensing. It communicates via RS485 MODBUS-RTU protocol for seamless integration with SCADA, PLCs, and cloud-based environmental monitoring systems.
Features
- Integrated 7-in-1 sensor suite: wind speed/direction, temperature, humidity, rainfall, solar radiation, and atmospheric pressure.
- Maintenance-free ultrasonic anemometer provides 360° omnidirectional wind measurement with no moving parts.
- Standard RS485 MODBUS-RTU communication protocol for industrial and IoT system integration.
- Robust ABS and aluminum housing with UV-resistant, waterproof construction for harsh outdoor deployment.
- Wide operating temperature range from -40°C to +80°C for extreme climate reliability.
Out of stock
The Renke RS-FSXCS-N01-3HP-EX employs advanced ultrasonic transit-time technology for precise, wear-free wind speed and direction measurement, eliminating the mechanical degradation common in cup-and-vane anemometers. Its optical rainfall sensor utilizes a precision infrared beam interruption principle to deliver accurate precipitation data while minimizing clogging from debris.
Engineered for continuous outdoor operation, the station integrates a digital temperature/humidity sensor, a silicon-cell pyranometer for solar radiation, and a MEMS barometric pressure sensor. The consolidated data is output via a galvanically isolated RS485 interface using the industry-standard MODBUS-RTU protocol, ensuring compatibility with data loggers, PLCs, and remote telemetry units. The unit’s low-power design and wide 10-30V DC input range make it suitable for solar-powered or grid-connected installations.
Additional Information
| Weight | 1.2 kg |
|---|---|
| Dimensions | 23 × 18 cm |
