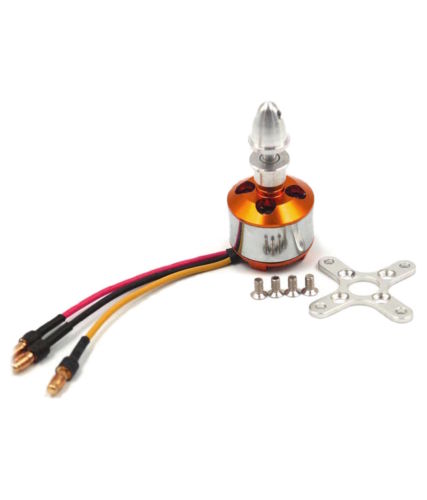

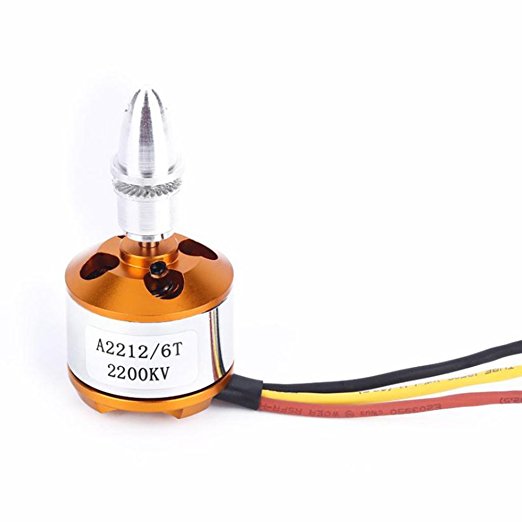

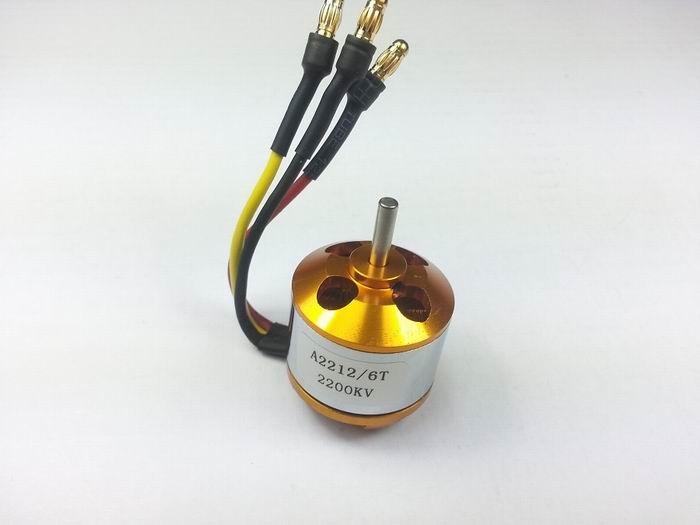

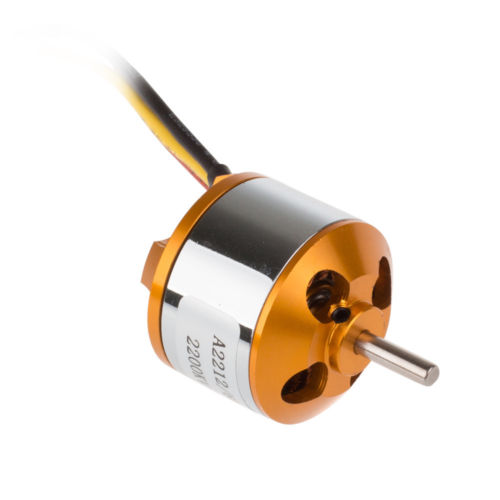

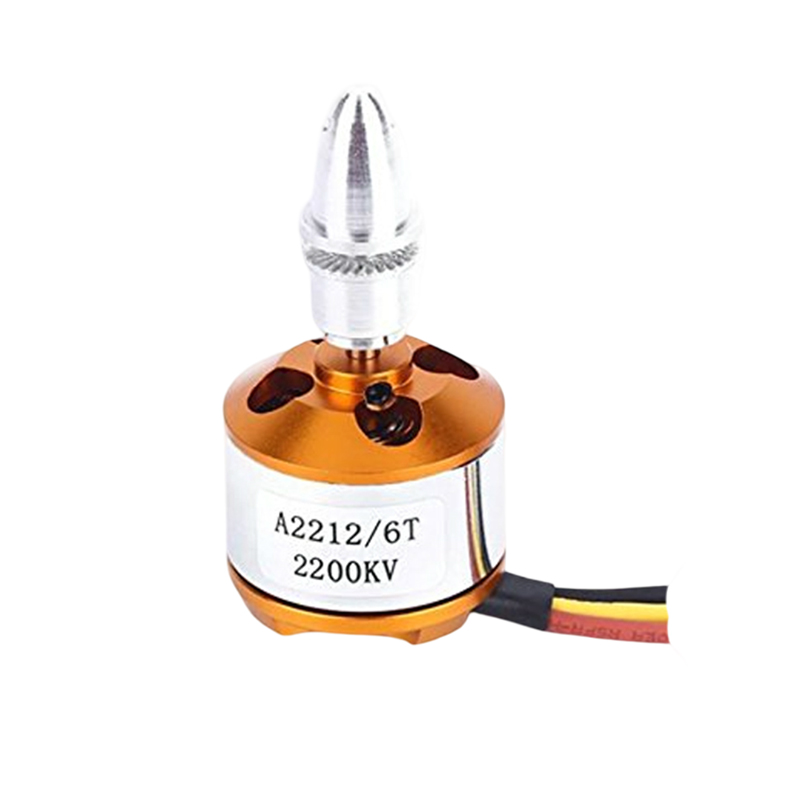

ReadyToSky A2212 6T 2200KV Brushless Motor - Soldered Connector
The ReadyToSky A2212 6T is a 2200KV brushless motor designed for lightweight multirotor builds, compatible with 2S to 3S LiPo batteries. It features a 3.17mm shaft and a soldered connector for direct wiring integration.
Features
- 2200KV rating optimized for 2S-3S LiPo power systems.
- 3.17mm shaft diameter with included prop adapter and X-type motor mount.
- Maximum current capacity of 12A for responsive throttle control.
- Compact 26mm x 27mm stator size with a weight of 60 grams.
- Bi-directional operation (CW/CCW) by swapping motor lead polarity.
Out of stock
The A2212 6T 2200KV brushless motor utilizes a robust steel construction to withstand the vibrational stresses of multirotor flight. Its design prioritizes a high power-to-weight ratio, making it suitable for a range of lightweight quadcopter and hexacopter frames where agility and efficiency are key.
Engineered for smooth throttle response, this motor operates within a 4-10A efficiency window, balancing performance with thermal management. The pre-soldered connectors facilitate a clean and reliable electrical connection, reducing build time and potential failure points in the power system.
Additional Information
| Weight | 0.06 kg |
|---|---|
| Dimensions | 2.7 × 2.6 cm |
