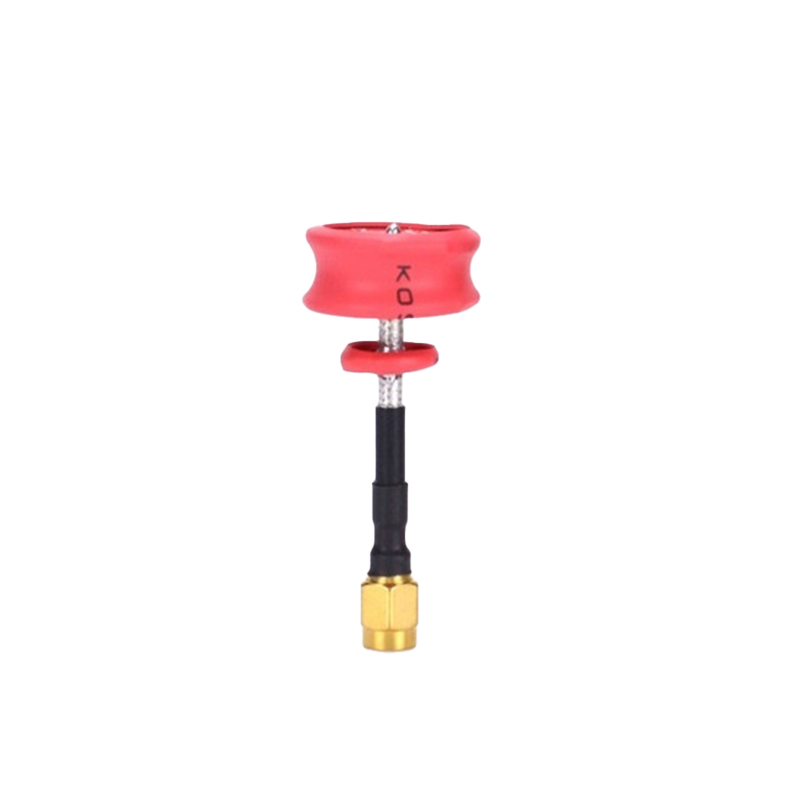

ReadyToSky Pagoda 2 Antenna 5.8GHz with Cover - RP-SMA Male RHCP

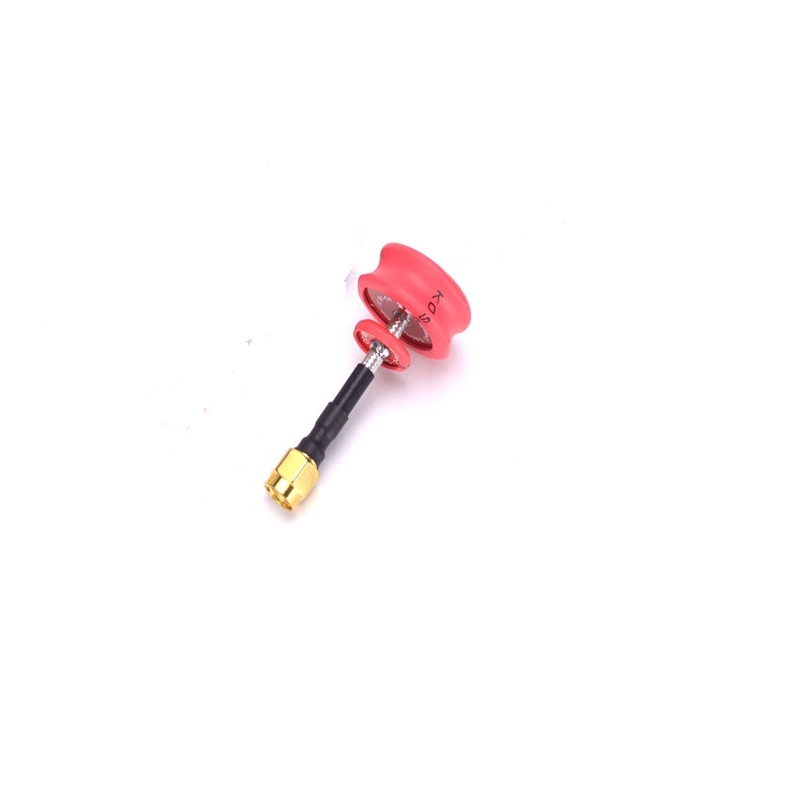

ReadyToSky Pagoda 2 Antenna 5.8GHz with Cover - RP-SMA Male RHCP - Image 2

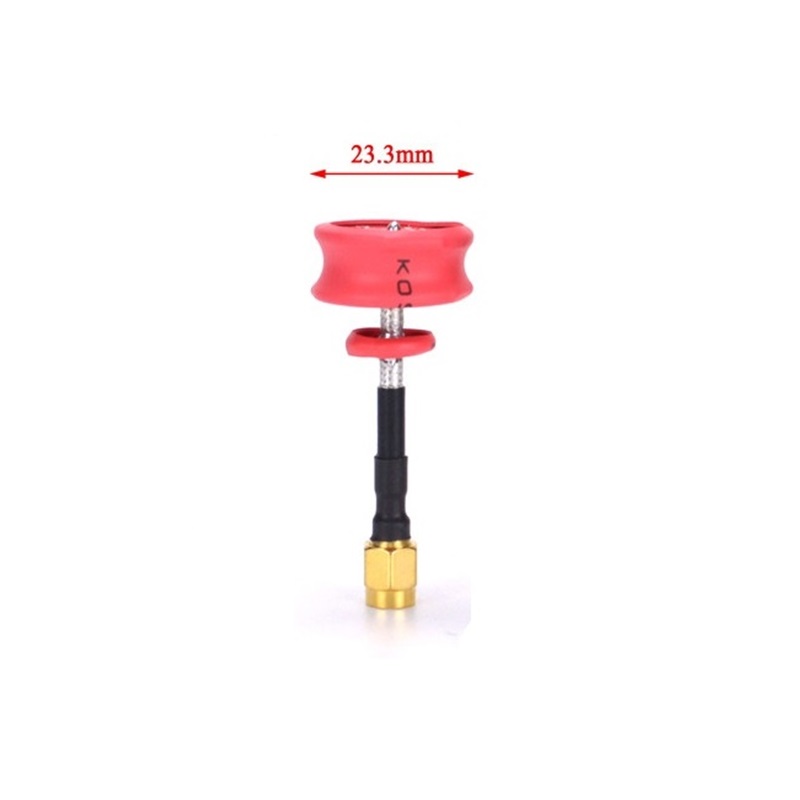

ReadyToSky Pagoda 2 Antenna 5.8GHz with Cover - RP-SMA Male RHCP - Image 3
SKU: DRFC-2194
📋 GST Invoice Available

ReadyToSky Pagoda 2 Antenna 5.8GHz with Cover - RP-SMA Male RHCP

₹409.00 (Inclusive of all taxes)
Out of Stock

The ReadyToSky Pagoda 2 is a 5.8GHz omnidirectional RHCP antenna designed for FPV drone video systems, featuring an RP-SMA male connector and a protective silicone cover for robust, low-profile installation.

Features

  • 5.8GHz center frequency with 500 MHz bandwidth (5.55–6.05 GHz)
  • Right-Hand Circular Polarization (RHCP) for reduced multi-path interference
  • RP-SMA Male plug connector for direct VTX or receiver mounting
  • Optimized axial ratio (<1.3) and VSWR (<1.22) for efficient signal transmission
  • Includes lightweight silicone protective cover for impact and abrasion resistance

Out of stock

Description

The Pagoda 2 antenna utilizes a multi-layer stacked design to create a smooth omnidirectional radiation pattern with excellent axial ratio consistency. This engineering results in solid all-around signal coverage, making it highly effective for FPV racing and freestyle where maintaining a clean video link during rapid orientation changes is critical.

Constructed with a precision metal main rod and simplified assembly, the antenna achieves high radiation efficiency (0.95) and a low VSWR, ensuring minimal signal reflection and maximum power transfer from your 5.8GHz video transmitter. The included silicone cover provides essential physical protection without adding significant weight or altering the antenna’s RF characteristics.

Key Features

  • Optimized Pagoda Design: Stacked element geometry produces a smooth, omnidirectional radiation pattern for consistent video signal in all orientations.
  • High-Efficiency RHCP: Right-hand circular polarization minimizes signal degradation caused by reflections and multipath interference common in urban or wooded environments.
  • Premium RF Performance: Features an axial ratio below 1.3 and a VSWR under 1.22 at the center frequency, ensuring efficient signal transmission and reception.
  • Durable & Lightweight Build: Robust metal central structure paired with a removable silicone cover offers impact protection while maintaining a low 12-gram mass.
  • Broad Compatibility: Standard RP-SMA male connector interfaces directly with most FPV video transmitters, receivers, and goggles operating in the 5.8GHz band.

Applications

  • 5-inch FPV racing and freestyle drone builds requiring a low-profile, durable VTX antenna.
  • CineWhoop and micro drone setups where a lightweight, omnidirectional antenna is essential for proximity flying.
  • Long-range FPV cruisers as a robust, all-around coverage antenna for the video receiver.
  • FPV ground station and diversity receiver setups to improve signal reception from multiple angles.
  • Replacement antenna for stock VTX or goggles to upgrade video link reliability and reduce multipathing.

Technical Specifications

Item TypeAntenna
Frequency5.8 GHz
PolarizationRHCP (Right Hand Circular Polarization)
Bandwidth500 MHz (5.55 – 6.05 GHz)
ConnectorRP-SMA Male Plug
Radiation Efficiency0.95
VSWR (at center freq.)< 1.22
Axial Ratio< 1.3
Weight12 g

Frequently Asked Questions

What is the advantage of an RHCP antenna like the Pagoda 2 for FPV?

RHCP (Right-Hand Circular Polarization) antennas are standard in FPV to combat signal degradation from multipath interference, where signals bounce off the ground and objects. Using matched RHCP antennas on both the transmitter and receiver minimizes video breakup caused by these reflected signals, providing a cleaner, more stable video link, especially in environments with many obstacles.

Is this antenna compatible with my DJI FPV Goggles or Walksnail VTX?

This antenna features a standard RP-SMA male connector. Compatibility depends on your device's port. Most standalone analog video transmitters (VTX) and receivers use RP-SMA or SMA. However, DJI and Walksnail digital systems often use proprietary connectors or MMCX. You will need an appropriate adapter (e.g., RP-SMA to MMCX) to use this antenna with those digital systems.

Does the silicone cover affect the antenna's performance?

No, the included silicone cover is designed to be RF-transparent at 5.8GHz, meaning it does not significantly attenuate or distort the signal. Its primary purpose is to provide physical protection for the antenna's delicate radiating elements against impacts, abrasion, and minor bends, thereby extending the antenna's operational lifespan without compromising performance.

Package Includes

  • 1 x Pagoda 2 Antenna with Silicone Cover

Additional Information

Weight 0.016 kg
Dimensions 14.5 × 8.5 × 3.5 cm
