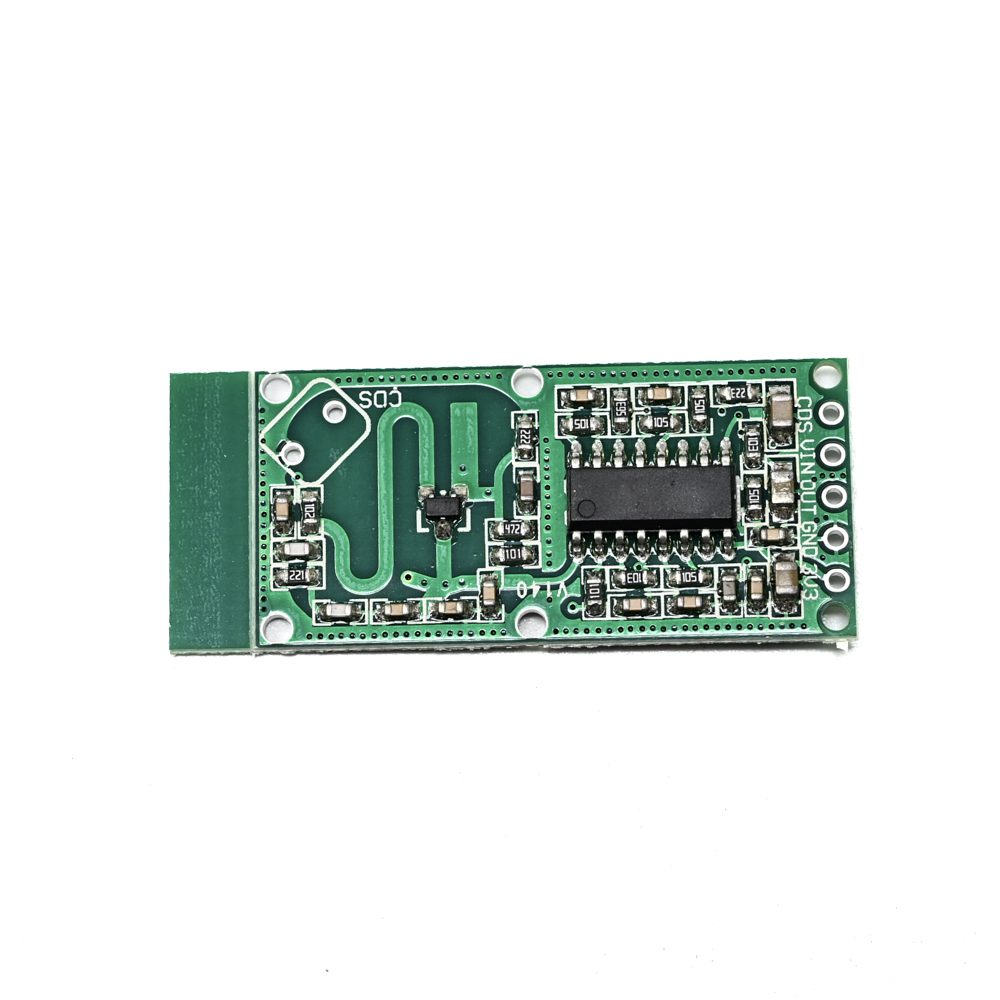

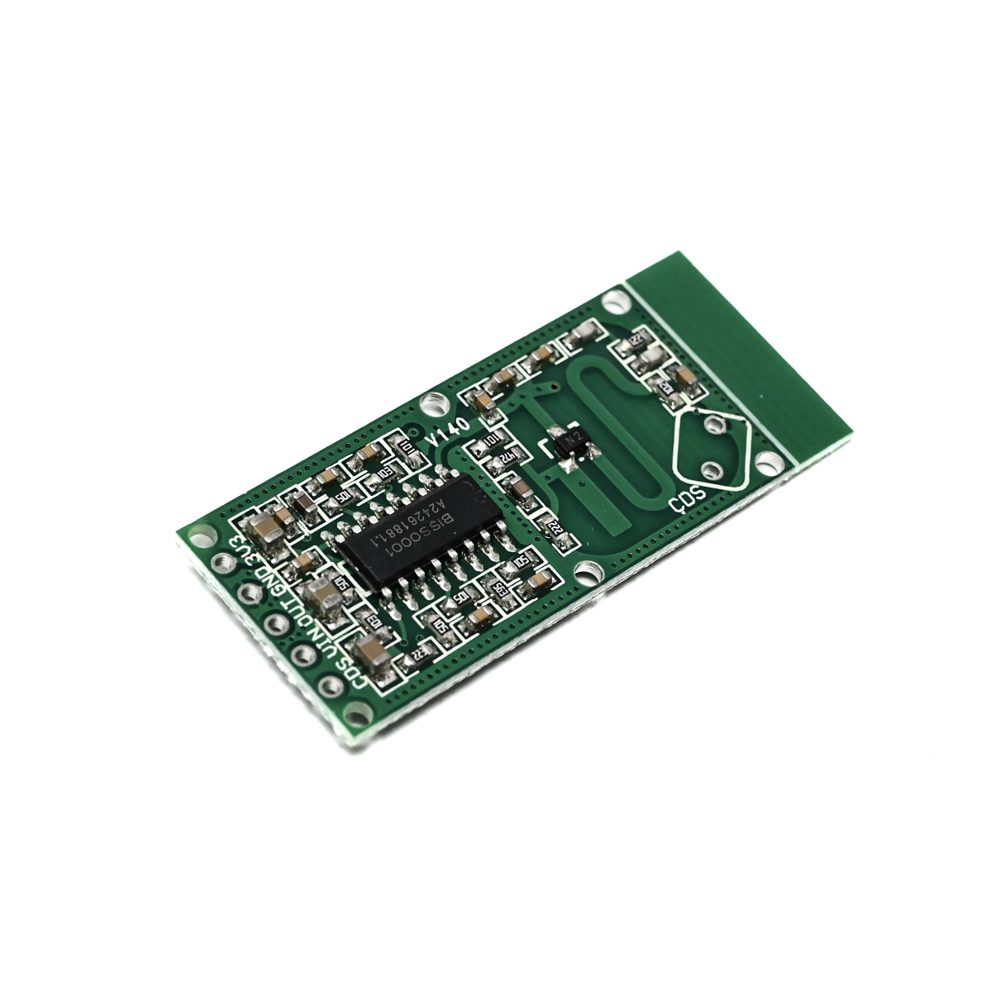

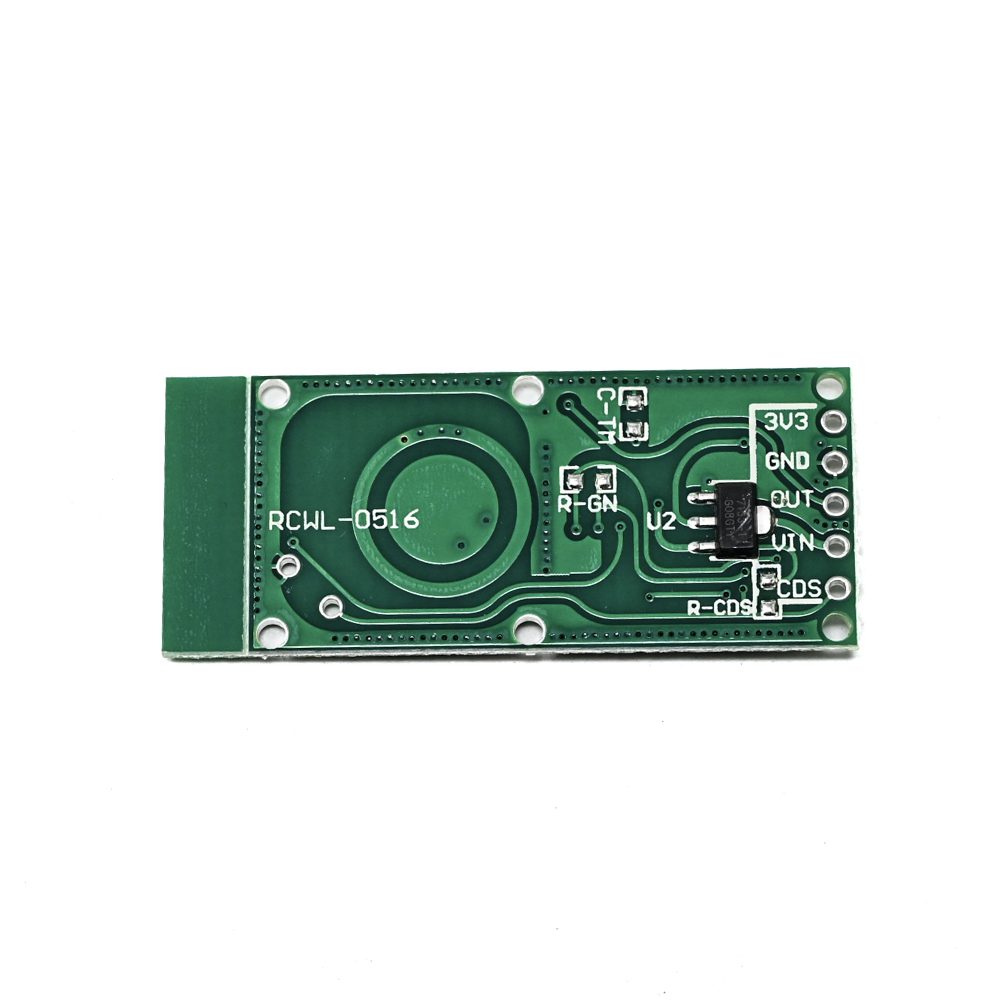

RCWL-0516 Microwave Radar Motion Sensor Module
The RCWL-0516 Microwave Radar Motion Sensor Module is a Doppler radar-based motion detector offering a 1-2 meter range, compatible with 3.3V microcontrollers like Arduino, ESP32, and Raspberry Pi for security and automation projects.
Features
- Microwave Doppler Radar detection principle for reliable motion sensing.
- Wide operating voltage range from 4V to 28V DC.
- Provides a 3.3V TTL-level output signal upon motion detection.
- Compact footprint measuring 36mm x 17mm.
- Includes a regulated 3.3V output (100mA max) to power external logic.
Out of stock
The RCWL-0516 utilizes a microwave Doppler radar technique, emitting a low-power 5.8GHz signal to detect movement within its 1-2 meter range. This method offers advantages over traditional PIR sensors, including the ability to detect motion through certain non-metallic materials and less susceptibility to ambient temperature changes.
The module features an integrated RCWL-9196 signal processing chip, which handles the complex radar signal analysis and provides a clean, TTL-compatible output. It delivers a 3.3V HIGH signal for 2-3 seconds upon detecting motion before returning to a LOW state. Its robust 4-28V input range makes it suitable for a variety of power supplies, from battery packs to regulated wall adapters.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 3.6 × 1.7 cm |
