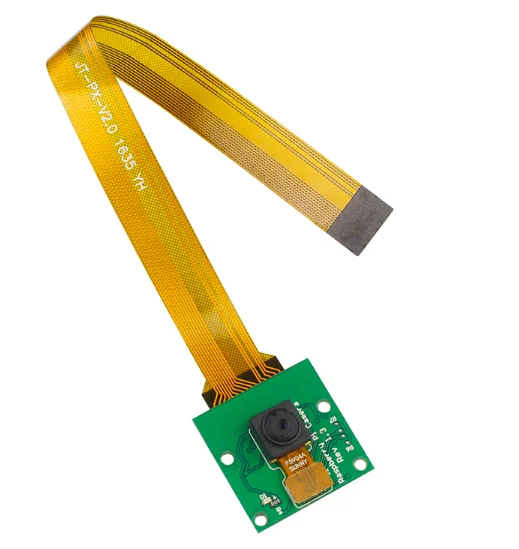

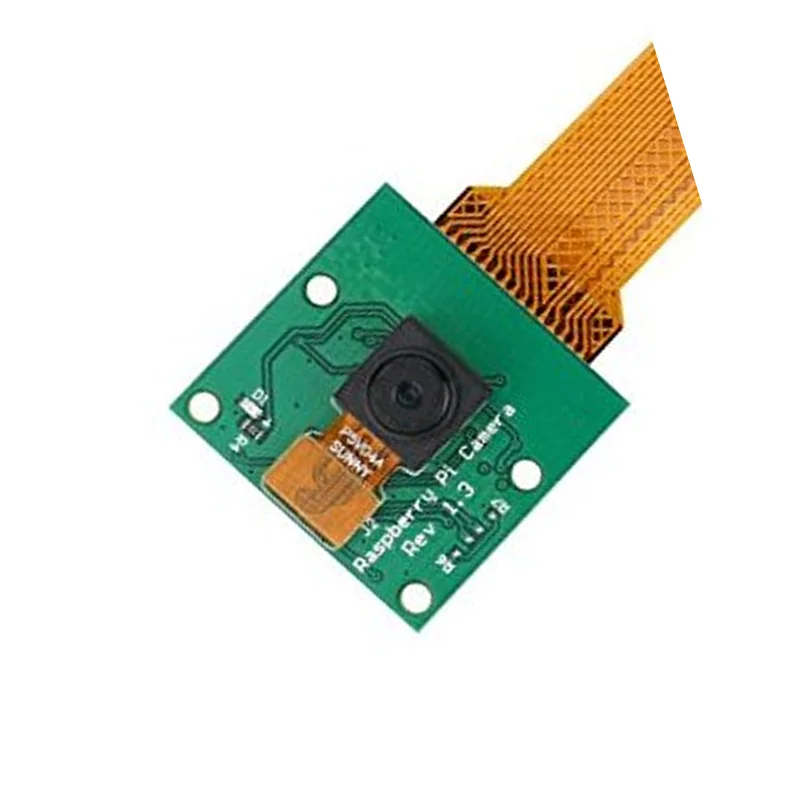

Raspberry Pi 5MP CSI Camera Module for Pi Zero W

No, this specific module is designed exclusively for the Raspberry Pi Zero W due to its physical connector and CSI port placement. For Pi 3 or Pi 4, you would need the standard Raspberry Pi Camera Module with a longer ribbon cable that connects to the CSI port located between the HDMI and audio jack.

You must enable the camera interface via the Raspberry Pi configuration tool. Use the command 'sudo raspi-config', navigate to 'Interface Options', select 'Camera', and choose 'Yes' to enable it. After a reboot, you can use commands like 'libcamera-still' or 'raspistill' (on older OS versions) to capture images. Ensure your OS is up to date for full compatibility.

No, this is a visual sensor module only and does not include a microphone or audio capture capabilities. The CSI interface carries only pixel data. If you require audio, you will need to connect a separate USB audio adapter or use a microphone HAT compatible with the Raspberry Pi Zero W's GPIO header.

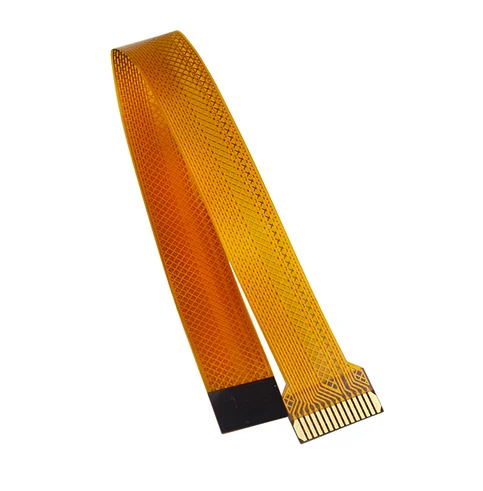

The HBV (Horizontal Board-to-Board Vertical) FFC (Flexible Flat Cable) is a specific ribbon cable type that connects the camera module's ZIF (Zero Insertion Force) socket directly to the CSI port on the Raspberry Pi Zero W. Its design accommodates the right-angle connection and short distance between the components, ensuring a reliable and secure link without requiring any adapters.
